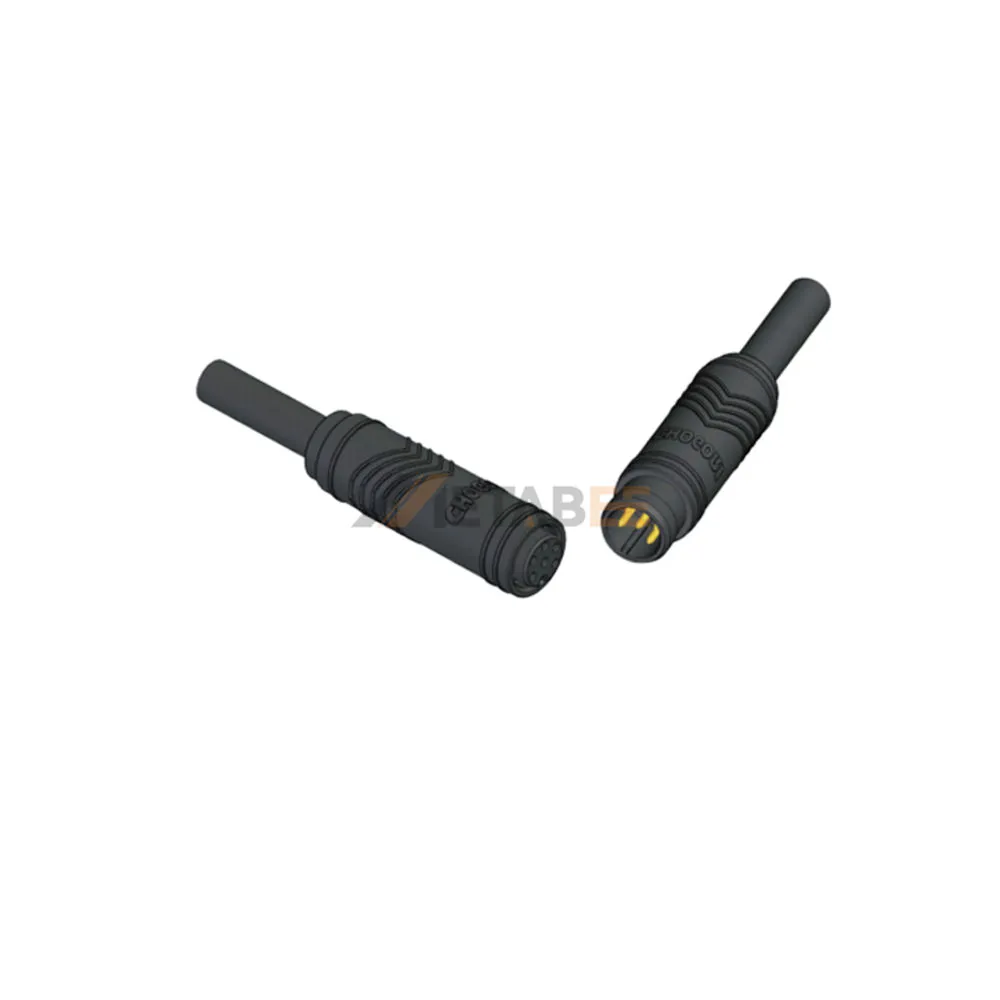

Multi-Pin Two-Wheeler Electric Vehicle Signal Connector, 2-6 Pin, IP66
Introduction
The Multi-Pin Two-Wheeler Electric Vehicle Signal Connector is designed for reliable signal transmission in electric motorcycles, scooters, and other two-wheeler electrical systems. Supporting a 2–6 pin configuration, this connector accommodates different wiring requirements and provides dependable connectivity for electric vehicle applications.
With an IP66 protection rating, the connector offers complete dust protection and resistance to powerful water jets. Its UL94V-0 flame-retardant material enhances fire safety, while the operating temperature range of -40°C to +105°C supports reliable performance in demanding environments.
Key Features:
- 2–6 Pin Configuration: Accommodates various signal wiring requirements.
- Reliable Signal Transmission: Supports stable electrical connectivity.
- IP66 Protection: Dust-tight and resistant to powerful water jets.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Temperature Range: Operates from -40°C to +105°C.
- Versatile Applications: Suitable for electric motorcycles and scooters.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0050 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2-6 Pin | |
| Wire Gauge: | 26AWG/ Max | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 2A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
