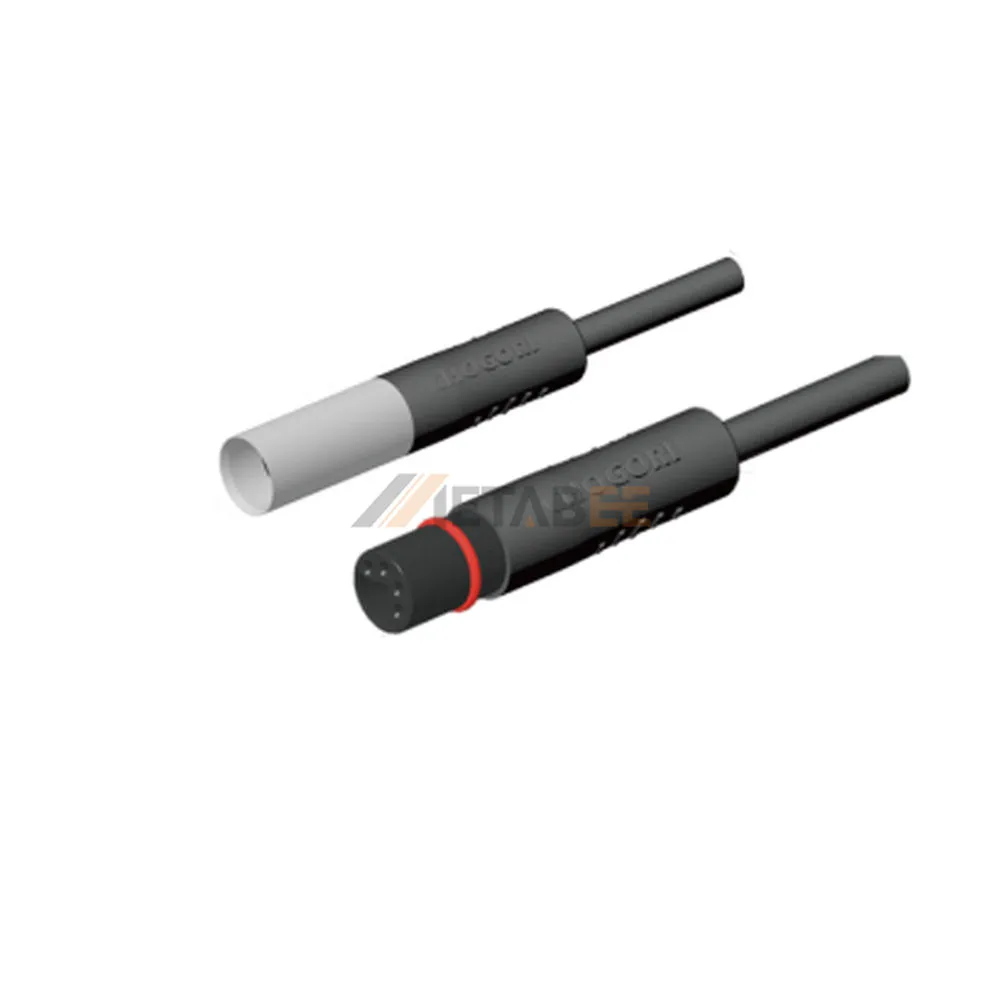

Mini Electric Bicycle Signal Connector, 2-3 Pin, Quick-lock, IP67
Introduction
Mini electric bicycle signal connector, 2-3 pin, quick-lock, IP67. This compact signal connector offers a flexible 2-3 pin configuration with a quick-lock mechanism for fast, secure mating on electric bicycles. The UL94V-0 flame-retardant housing and IP67 sealing deliver dust-tight and waterproof protection for dependable signal transmission. Rated from -40°C to 105°C, it maintains stable performance across extreme temperature ranges.
Key Features:
- Flexible 2-3 pin signal configuration
- Quick-lock mechanism for fast mating
- IP67 dust-tight and waterproof protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Reliable signal integrity for e-bike systems
Main Specifications:
General Information:
| Part No.: | YC-E1001-0047 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2-3 Pin | |
| Wire Gauge: | 28AWG/0.08mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 2A | |
| Insulation Resistance: | 10MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 100 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
