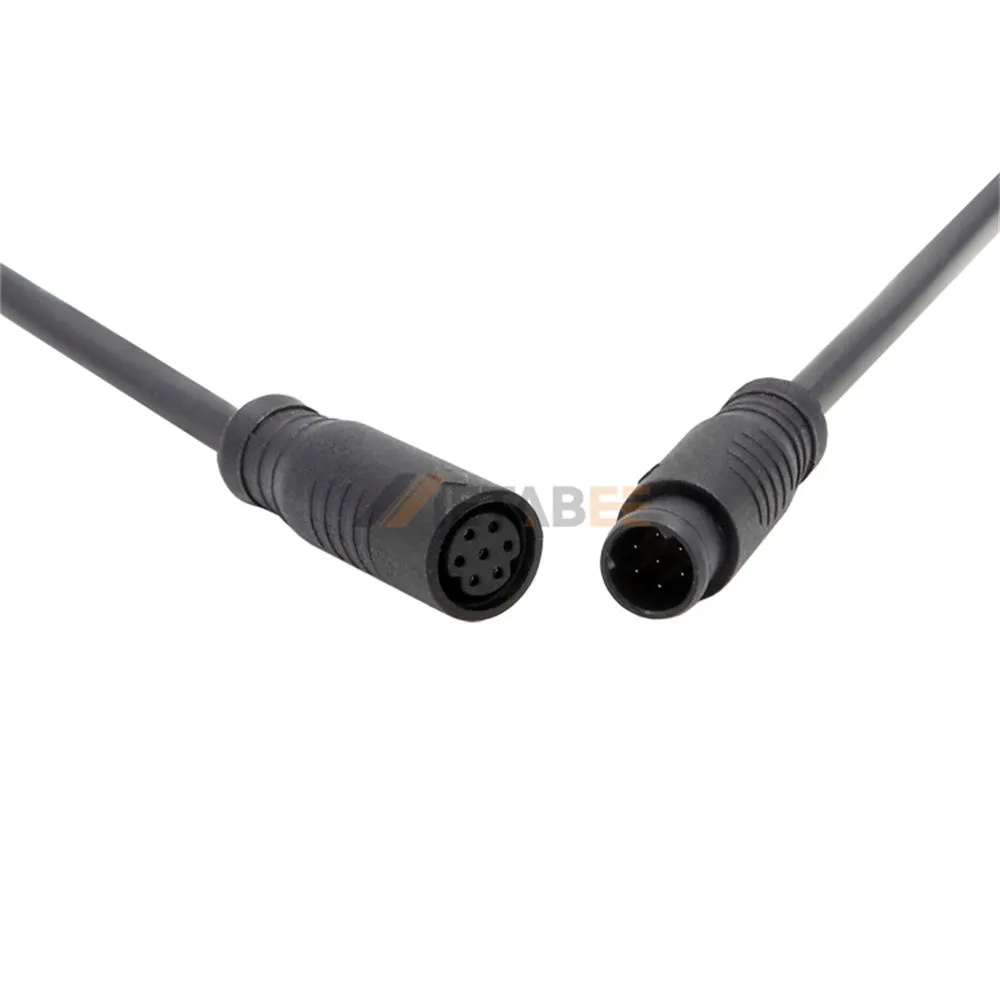

Mini BMS Signal Connector for E-Bike/E-Scooter, 7 Pin, IP66
Introduction
Mini BMS signal connector for e-bike/e-scooter, 7 pin, IP66. This compact connector carries 7 pins for BMS signal transmission in e-bike and e-scooter battery systems. The UL94V-0 flame-retardant housing and IP66 rating provide robust protection against dust and powerful water jets. Operating from -40°C to 105°C, it ensures stable signal integrity in demanding riding environments.
Key Features:
- 7 pin BMS signal layout
- IP66 dust-tight and water-jet protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Stable BMS signal transmission
- Compact design for e-bike and e-scooter packs
Main Specifications:
General Information:
| Part No.: | YC-E1001-0052 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 7 Pin | |
| Wire Gauge: | 24AWG/ Max | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 2A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
