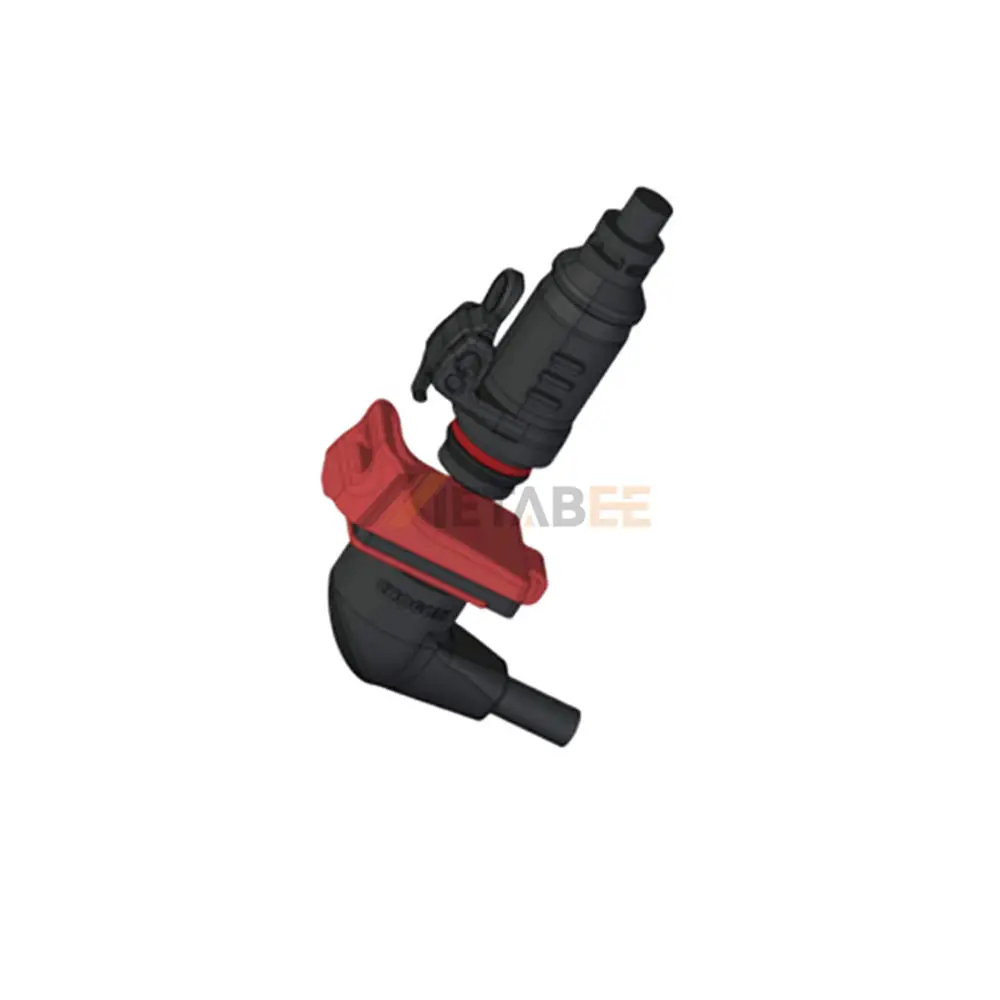

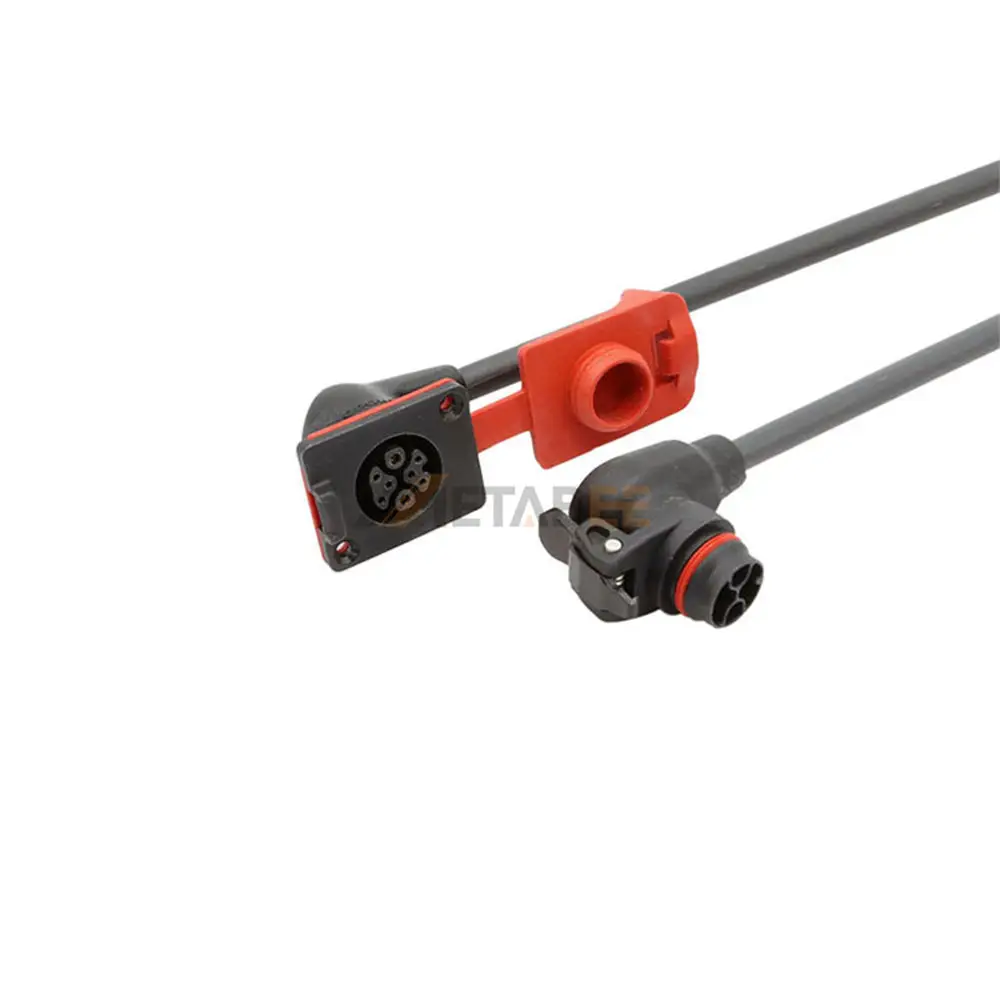

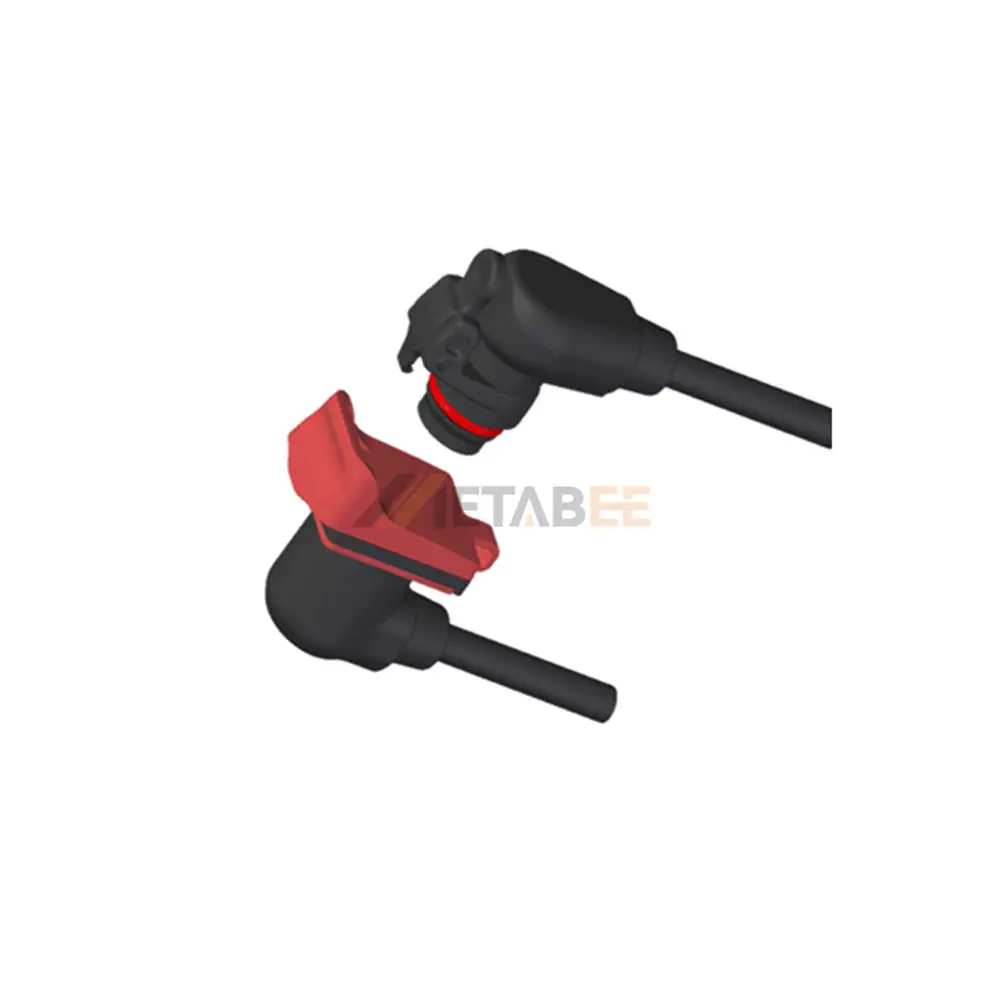

Electric Bicycle/Motorcycle Battery Charger for Signal & Power Transmission, 2+6 Pin, IP67
Introduction
Electric bicycle/motorcycle battery charger for signal and power transmission, 2+6 pin, IP67. This connector combines a 2+6 pin configuration for reliable signal and power transmission in electric bicycle and motorcycle charging applications. The UL94V-0 flame-retardant housing and IP67 sealing deliver dependable performance in demanding environments, with an operating temperature range of -40°C to 105°C.
Key Features:
- 2+6 pin layout for combined signal and power transmission
- UL94V-0 flame-retardant housing
- IP67 waterproof and dustproof rating
- Wide -40°C to 105°C operating range
- Stable, secure connection for charging systems
- Durable construction for long service life
Main Specifications:
General Information:
| Part No.: | YC-E1001-0025 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+8 Pin | |
| Wire Gauge: | 6AWG/1.31mm² + 24AWG/0.20mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 15A+2A | |
| Insulation Resistance: | 20MΩ Min @500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 1000 Times Min |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
Factory pricing and exceptional product quality. Get a free quote now!
