LEV Charger Connector, Charging & Discharging Plug/Socket, 3+6 Pin, IP66
Introduction
This hybrid charging and discharging plug and socket delivers reliable power transmission and signal integration for light electric vehicles. Built with an optimized 3+6 pin configuration, it simultaneously supports high-amperage power circuits and auxiliary bms communication lines in a single compact interface. Engineered to operate in demanding outdoor environments, it maintains robust physical and electrical integrity under severe mechanical vibrations, frequent mating cycles, and intense thermal loads.
Key Features:
- 3+6 pin layout for power and signal lines
- Ip66 protection against heavy water and dust ingress
- Broad operating temperature range from -40°c to 105°c
- Ul94v-0 high-grade flame-retardant housing
- Low contact resistance for efficient energy transfer
- Durable construction for charging and discharging ports
Main Specifications:
General Information:
| Part No.: | YC-E1001-0021 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+6 Pin | |
| Wire Gauge: | 14AWG/2.0mm² + 24AWG/0.2mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 18A+3A | |
| Insulation Resistance: | N/A | |
| Withstanding Voltage: | 700V AC | |
| Durability (Mating): | 200 Times Min |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |

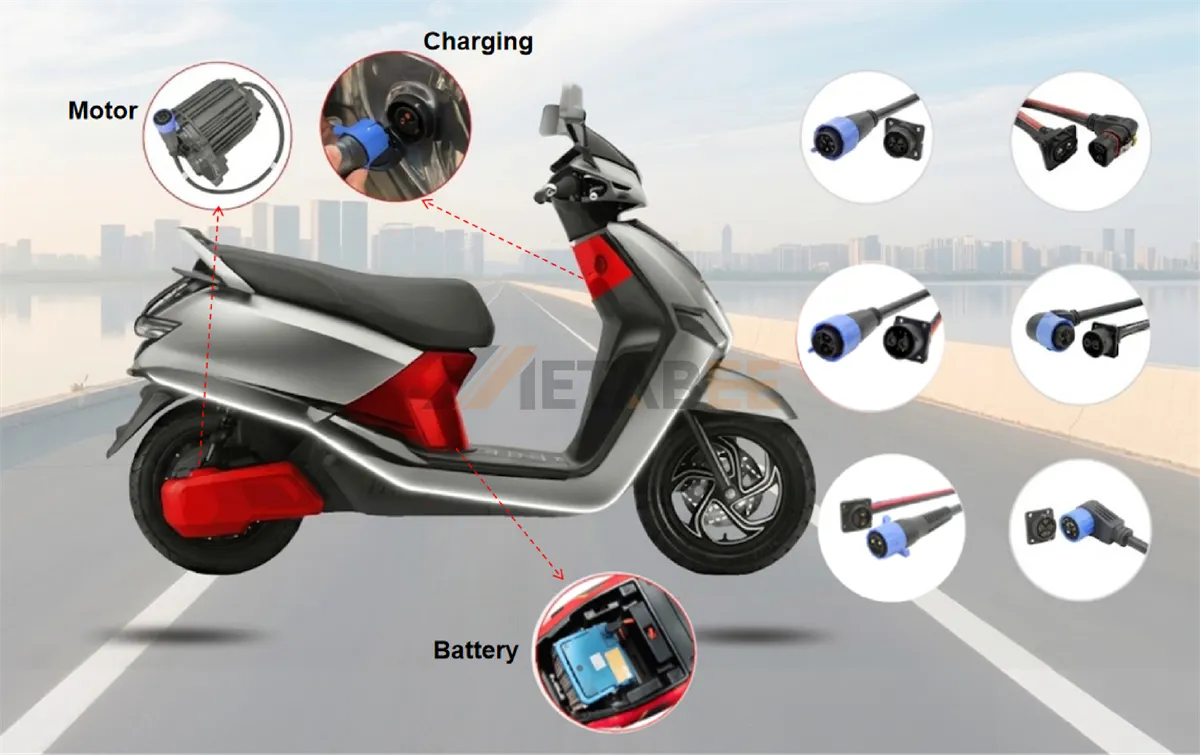

Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
