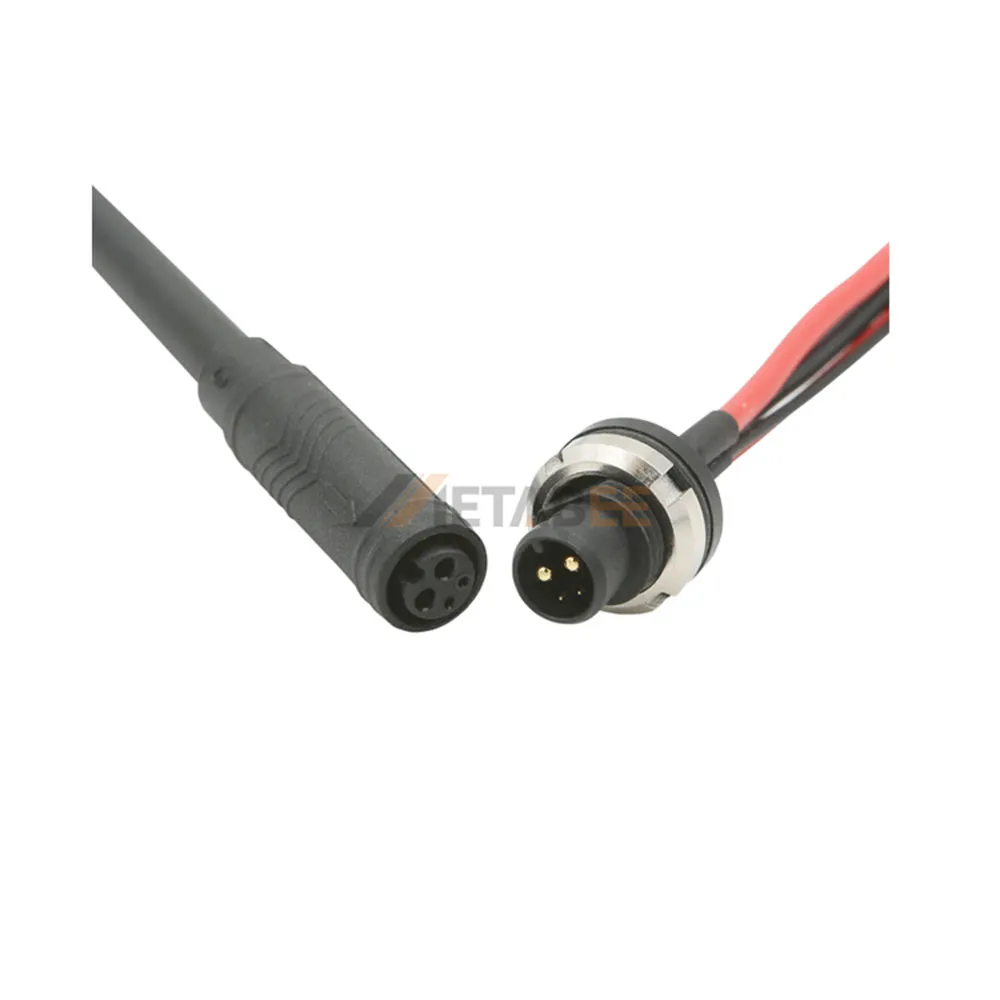

Electric Scooter/Motorcycle Battery Charger, 2+2 Pin, IP66
Introduction
The Electric Scooter/Motorcycle Battery Charger is designed for reliable electrical connectivity in electric scooter and motorcycle charging systems. Featuring a 2+2 pin configuration, this connector supports efficient power transmission through a compact interface, making it suitable for electric mobility applications requiring dependable charging connections.
With an IP66 protection rating, the connector provides complete dust protection and resistance to powerful water jets. Its UL94V-0 flame-retardant material enhances fire safety, while the operating temperature range of -40°C to +105°C supports reliable performance in demanding environments.
Key Features:
-
2+2 Pin Configuration: Supports reliable charging connections.
-
IP66 Protection: Dust-tight and resistant to powerful water jets.
-
UL94V-0 Flame Retardancy: Enhances electrical safety.
-
Wide Temperature Range: Operates from -40°C to +105°C.
-
Reliable Power Transmission: Designed for stable electrical connectivity.
-
Versatile Applications: Suitable for electric scooters and motorcycles.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0023 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+2 Pin | |
| Wire Gauge: | 18AWG/0.82mm² + 26AWG/0.12mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 10A+5A | |
| Insulation Resistance: | 20MΩ Min @500V DC | |
| Withstanding Voltage: | 700V AC | |
| Durability (Mating): | 200 Times Min |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
