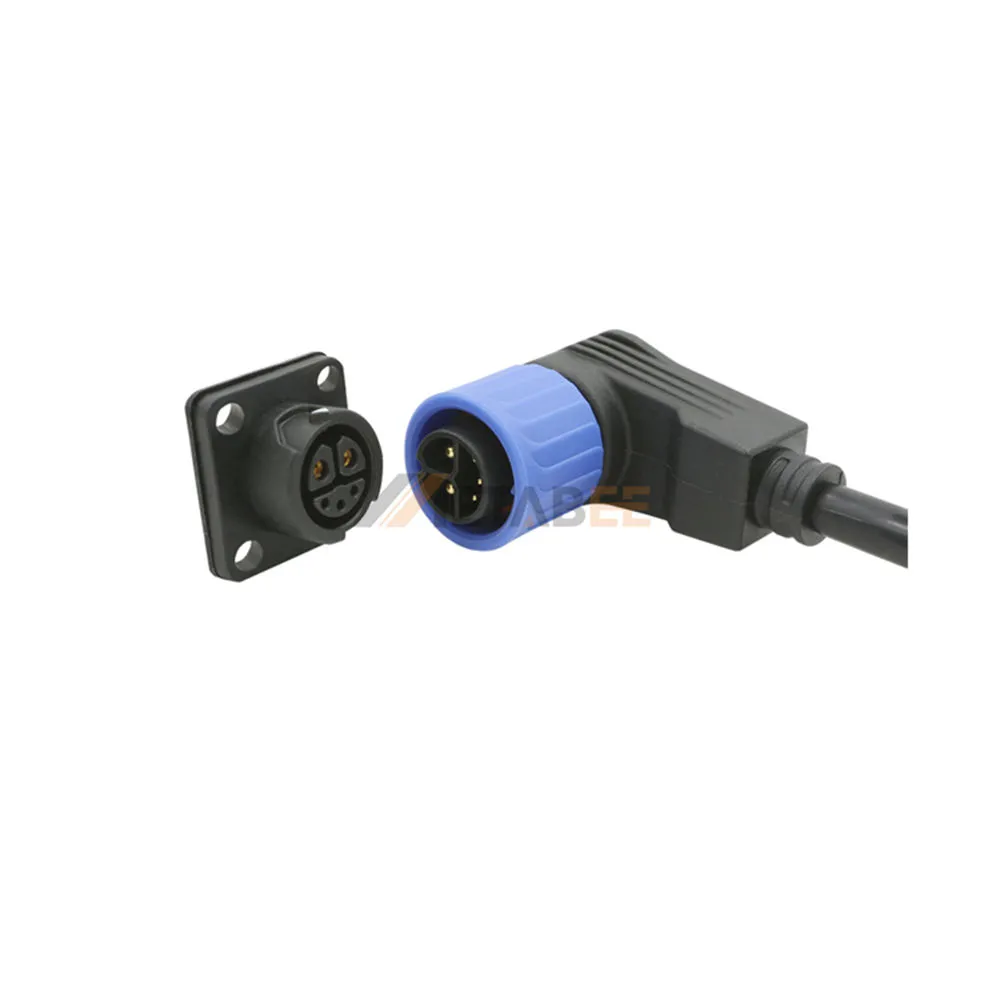

Battery Charging Connector for E-Motorcycle E-Bike, 2+3 Pin, IP66
Introduction
This hybrid battery charging connector delivers dependable power transmission and auxiliary signal monitoring for light electric vehicles. Built with an optimized 2+3 pin layout, it supports high-current charging alongside dedicated data circuits for enhanced charging safety and battery communication. Engineered to endure demanding riding conditions, the connector maintains exceptional electrical conductivity and housing integrity against mechanical shock, moisture exposure, and severe thermal fluctuations during active charge cycles.
Key Features:
- 2+3 pin hybrid design for power and signal
- Ip66 protection against dust and strong water jets
- Broad operating temperature range from -40°c to 105°c
- Ul94v-0 high-grade flame-retardant housing
- Stable low-resistance contacts for dc charging
- Durable shock-resistant build for e-motorcycles and e-bikes
Main Specifications:
General Information:
| Part No.: | YC-E1001-0022 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+3 Pin | |
| Wire Gauge: | Power 14AWG/Max Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC | |
| Rated Current: | 20A+5A | |
| Insulation Resistance: | N/A | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | >100MΩ at DC 500V |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
