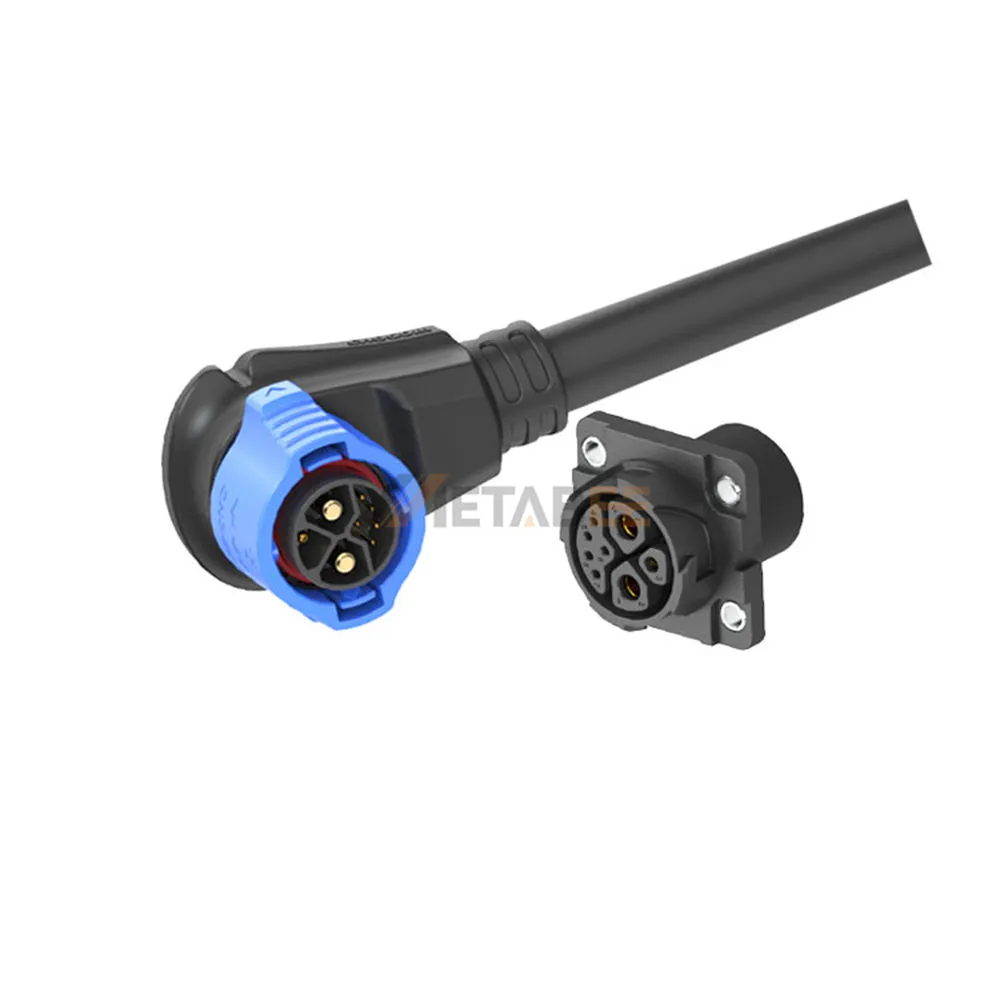

Electric Two-Wheeler Power & Signal Hybrid Charger, 2+1+5 Pin, IP67, Push Lock
Introduction
This hybrid charger combines power and signal transmission in a single 2+1+5 pin configuration, simplifying wiring on electric two-wheelers. The push lock mechanism ensures a secure, vibration-resistant connection during operation.
Built for demanding conditions, the connector carries a UL94V-0 flame-retardant rating and an IP67 waterproof rating. It operates reliably from -40°C to 105°C, making it suitable for year-round outdoor use.
Key Features:
- 2+1+5 pin hybrid power and signal design
- Push lock for secure connection
- IP67 waterproof protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Compact, integrated wiring solution
Main Specifications:
General Information:
| Part No.: | YC-E1001-0019 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+1+5 Pin | |
| Wire Gauge: | Power 9AWG/Max, Single 1 Pin 16AWG/Max, Signal 5 Pin 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC (Power), 80V DC (Signal) | |
| Rated Current: | 50A+15A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
