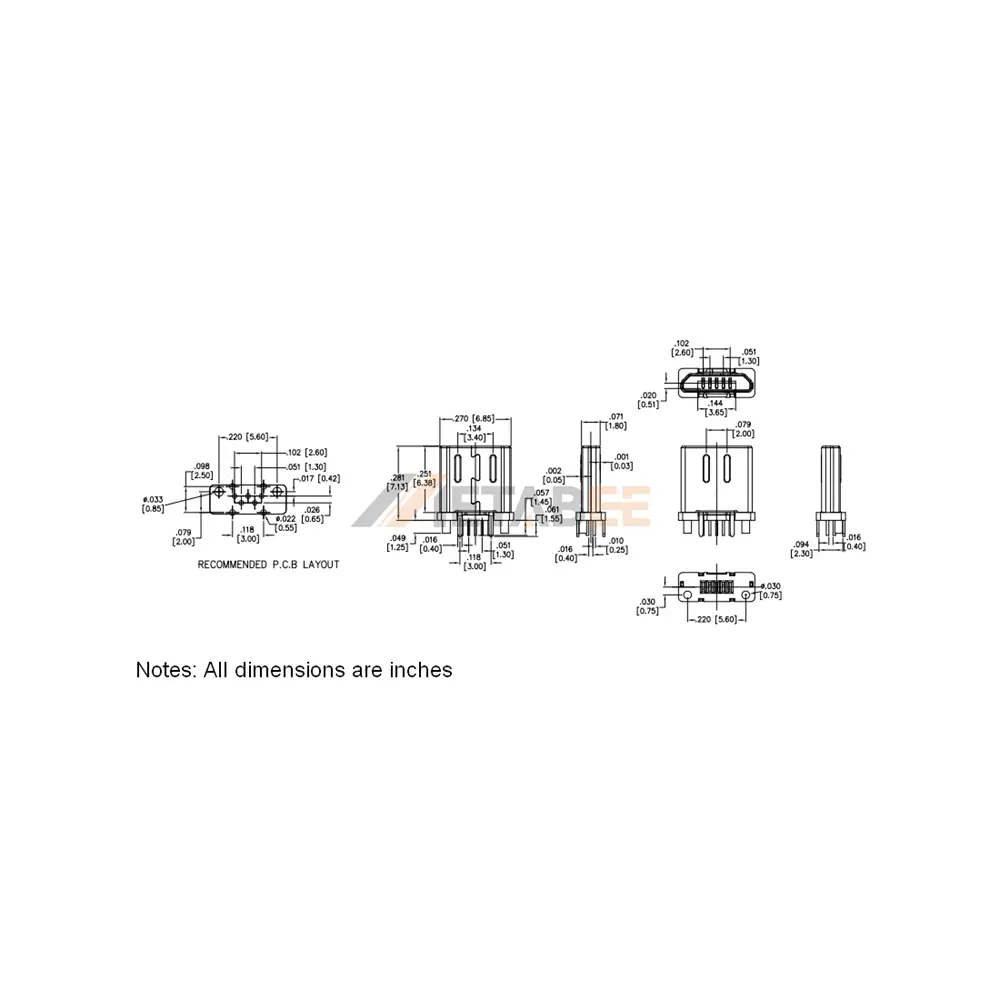

Vertical Micro USB 2.0 Type-B Plug, 5 Pin, Solder
Introduction:
The Micro USB 2.0 Type-B plug is designed for stable data transmission and efficient PCB integration in embedded electronic systems. Supporting the USB 2.0 standard with a maximum data transfer rate of 480 Mbps, this connector ensures dependable performance for data communication and charging applications. Its vertical PCB mount design enables efficient board layout while maintaining secure mechanical retention, making it suitable for space-constrained electronic devices.
Engineered for durability, the connector features a stainless steel shell with nickel plating, providing excellent mechanical strength and corrosion resistance. The brass contacts with gold plating ensure low contact resistance, improved conductivity, and enhanced long-term reliability even under repeated mating cycles. With a UL94V-0 flame-retardant rating and an operating temperature range of -40°C to +85°C, the connector is designed to maintain stable performance in demanding industrial and consumer electronic environments.
This single-port, 5-pin Micro USB Type-B plug is widely used in portable electronics, embedded systems, handheld devices, and charging interfaces where compact size, reliability, and consistent signal integrity are essential.
Key Features
- USB 2.0 high-speed transmission supporting data rates up to 480 Mbps
- Micro USB Type-B plug, 5-pin single-port configuration
- Vertical PCB mount design for efficient board integration
- Brass contacts with gold plating for excellent conductivity and durability
- Stainless steel shell with nickel plating for enhanced mechanical strength
- UL94V-0 rated housing with -40°C to +85°C operating temperature range for reliable performance
Main Specifications:
General Information:
| Product No.: | YC-MCR-B-MPLUG-CS12 | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | – | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical Micro USB 2.0 Type-B Plug:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
