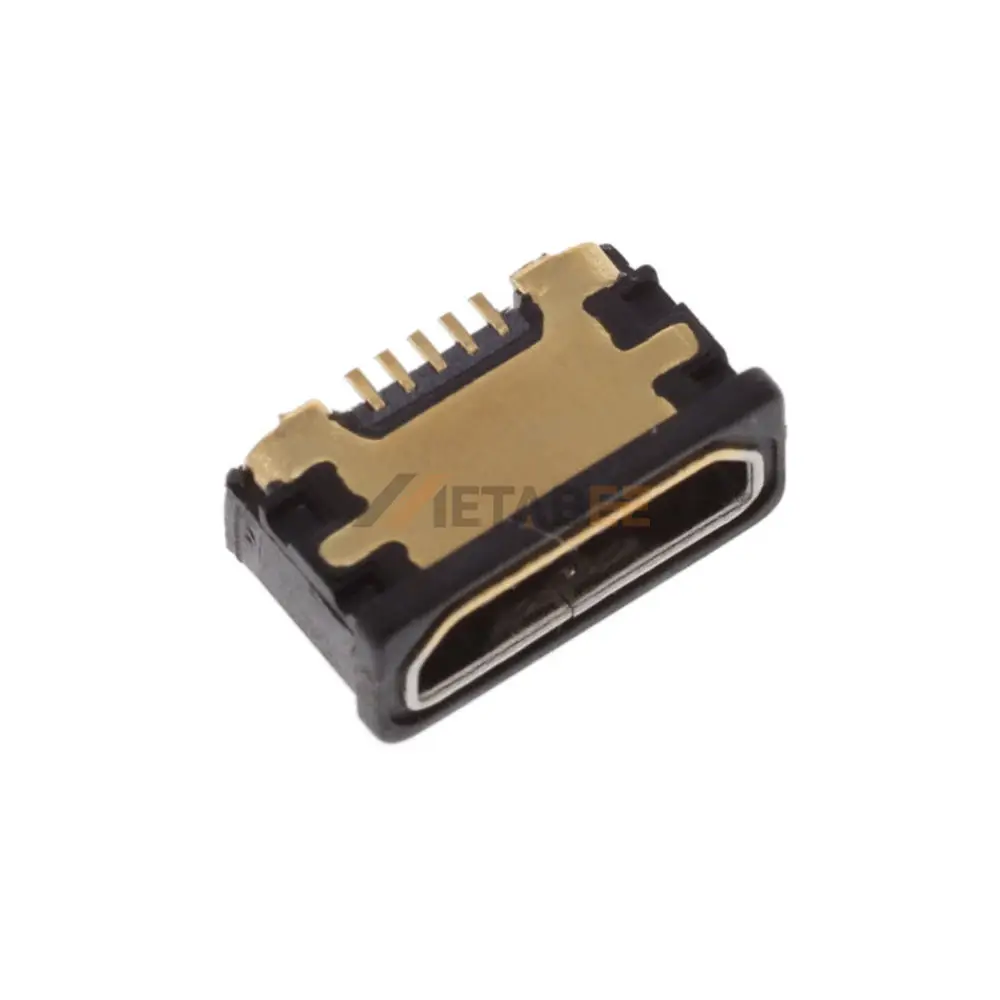

Waterproof Micro USB 2.0 Connector, Type-B Receptacle, 5 Pin, SMT, R/A
Introduction:
This Type-B receptacle features a compact 5-pin configuration with a right-angle (R/A) orientation, specifically engineered for surface mount technology (SMT) PCB mounting. Constructed with a robust stainless steel shell finished with nickel plating, this connector offers excellent durability and resistance to corrosion. The internal contacts are crafted from high-quality brass with a gold-plated finish, ensuring superior conductivity and long-term reliability for repeated use.
Engineered to withstand harsh conditions, this IP-rated waterproof connector provides a secure and sealed connection, making it ideal for industrial controls, outdoor equipment, and portable devices. It supports a 50VAC voltage rating and operates flawlessly across an extensive temperature range from -40°C to +85°C. The housing is manufactured using a UL94V-0 flame-retardant material, guaranteeing high safety standards by preventing the spread of fire. This combination of rugged mechanical design and electrical stability makes it a versatile choice for modern electronic applications requiring a space-saving, right-angle mount.
Key Features
- Waterproof Design: Provides a sealed barrier against moisture and dust for enhanced reliability.
- Right-Angle SMT Mount: Allows for low-profile, space-efficient PCB layouts.
- Durable Construction: Features a stainless steel shell with nickel plating for superior strength.
- High-Quality Contacts: Brass contacts with gold plating ensure stable signal transmission.
- Wide Operating Range: Reliable performance in temperatures from -40°C to +85°C.
- Flame-Retardant Rating: Manufactured with UL94V-0 compliant materials for maximum safety.
Main Specifications:
General Information:
| Product No.: | YC-MCR-B-S-RA-TSMT-CS1-WP-T/R | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | – | |
| Rated Voltage: | 50VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Waterproof Micro USB 2.0 Connector, Type-B Receptacle:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
