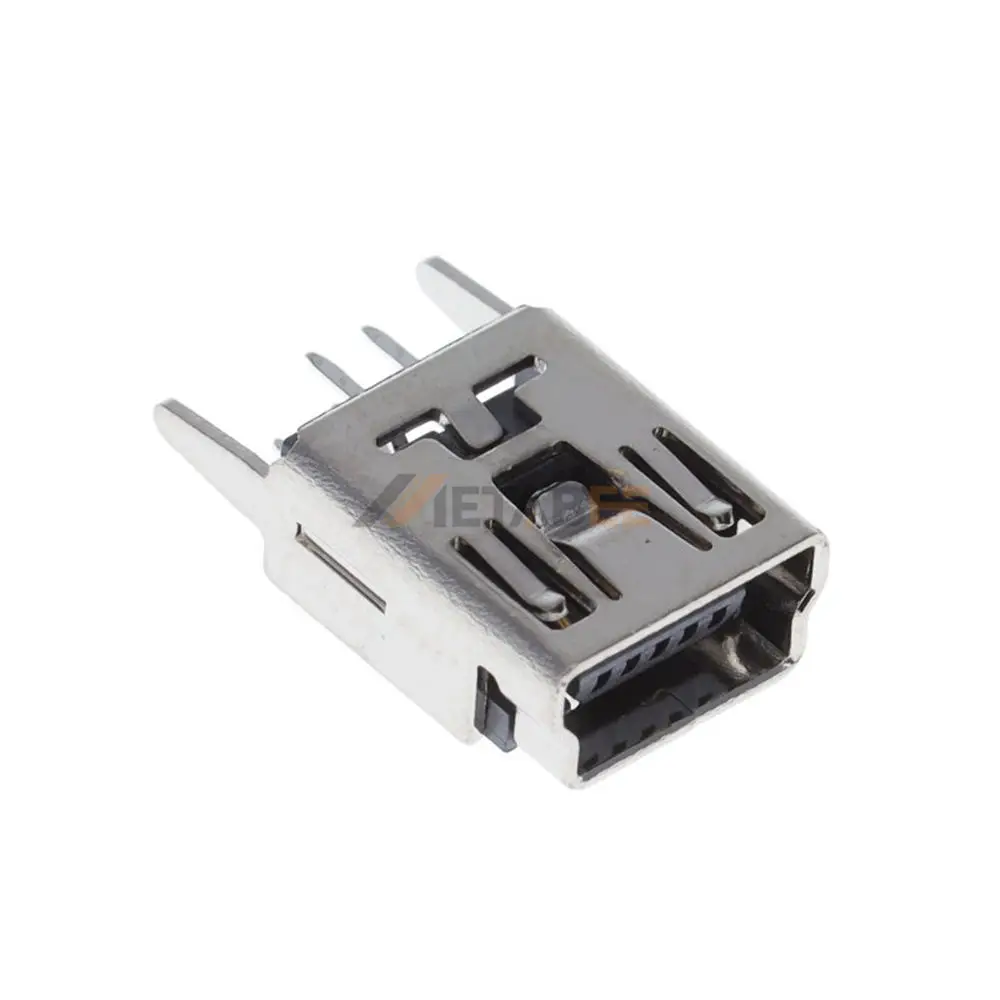

Vertical Mini USB 2.0 Female Connector, Type-B, 5 Pin, PCB Thru-Hole
Introduction:
The vertical Mini USB 2.0 female connector is designed to provide reliable USB 2.0 connectivity for a wide range of electronic devices. Featuring a Type-B Mini USB receptacle with a 5-pin configuration, this single-port connector supports stable data transmission and power delivery for consumer electronics, industrial equipment, and embedded systems. Its vertical connector structure with PCB through-hole mounting ensures strong board retention and improved mechanical durability in applications requiring frequent cable insertion.
The connector is constructed with a copper alloy shell with nickel plating, offering excellent mechanical strength and corrosion resistance. The gold-plated copper alloy contacts provide superior conductivity, reduced contact resistance, and reliable signal integrity throughout repeated mating cycles. With a rated current of 1A and rated voltage of 30VAC, this connector ensures dependable electrical performance for USB-powered devices.
Designed for demanding operating environments, the connector complies with UL94V-0 flammability standards and supports an operating temperature range from −40°C to +85°C. The PCB through-hole mounting design enhances soldering strength and long-term stability, making it suitable for applications where durability and consistent connectivity are essential.
Key Features
- Mini USB 2.0 Type-B female receptacle, 5-pin configuration
- Single-port vertical connector for efficient PCB integration
- PCB through-hole mounting for strong mechanical retention
- Nickel-plated copper alloy shell for durability and corrosion resistance
- Gold-plated copper alloy contacts for stable conductivity and signal reliability
- Rated current 1A, voltage 30VAC, operating temperature −40°C to +85°C, UL94V-0 flame rating
Main Specifications:
General Information:
| Product No.: | YC-MUSB-B5-S-VT-LSP | |
| Connector Series: | Mini USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical Mini USB 2.0 Female Connector:
Mini USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
