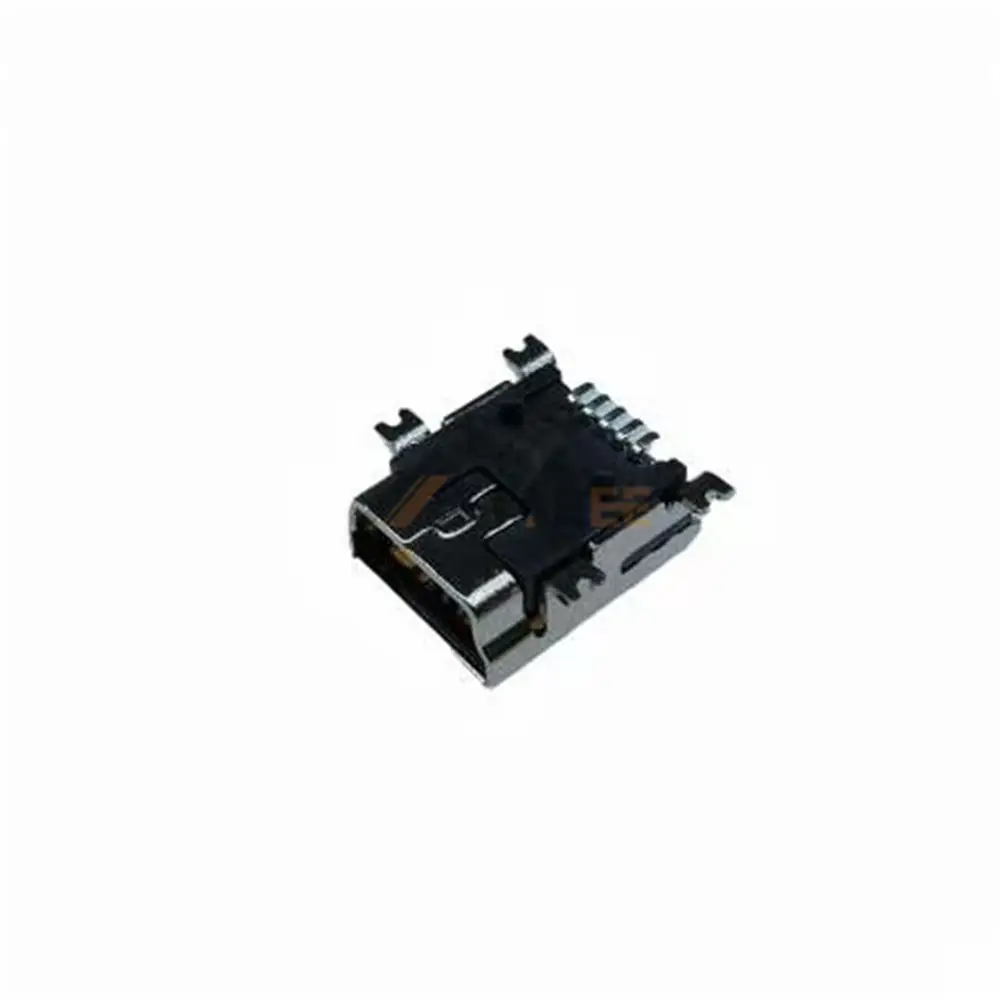

Mini USB 2.0 Type-B Receptacle, 5 Pin, PCB Mount, SMT, R/A
Introduction:
This Mini USB 2.0 Type-B Receptacle is a compact and reliable solution for a variety of electronic devices requiring Mini USB connectivity. Designed with a single port and 5 pins, this connector provides robust data transfer capabilities for applications where space is at a premium. Its right-angle mounting orientation and Surface Mount Technology (SMT) facilitate efficient integration onto Printed Circuit Boards (PCBs), making it ideal for compact designs and streamlined manufacturing processes. As a receptacle, it offers a secure and stable connection point for compatible Mini USB cables.
Built for performance and durability, this connector features a high-quality Brass housing, which is nickel-plated for enhanced corrosion resistance and a professional finish. The crucial contact pins are fabricated from Phosphor Bronze, chosen for its excellent spring properties and electrical conductivity, and are further improved with Gold Plating to ensure optimal signal integrity and long-term reliability. Electrically, it handles a rated current of 1A and a rated voltage of 30VAC. Meeting industry safety standards, it boasts a UL94V-0 flammability rating and maintains stable operation across a wide temperature range from -40°C to 85°C.
Key Features
- Interface Type: Mini USB 2.0 Type-B Receptacle.
- Pin Configuration: 5-pin for standard Mini USB 2.0 functionality.
- Mounting: Surface Mount (SMT), Right Angle, PCB Mount.
- Premium Materials: Nickel Plated Brass housing, gold-plated phosphor bronze contacts.
- Electrical Specifications: Rated at 1A current, 30VAC voltage.
- Environmental Resilience: UL94V-0 flammability rating, -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-MUSB-B5-S-RA-SMT-PP-T/R | |
| Connector Series: | Mini USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Mini USB 2.0 Type-B Receptacle:
Mini USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
