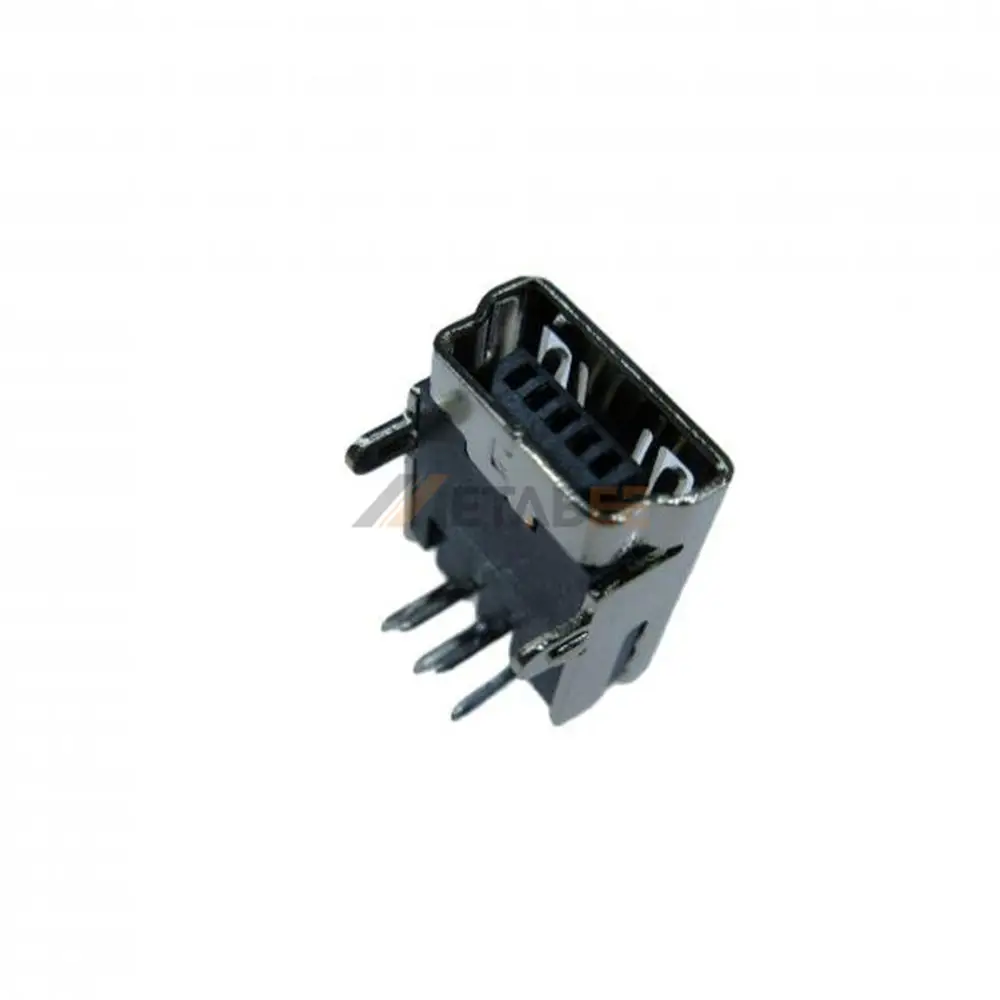

Mini USB 2.0 Type-B Socket, 5 Pin, SMT, RA
Introduction:
The Mini USB 2.0 Type-B Socket, 5 Pin, SMT, RA is a reliable and compact connector designed for stable USB 2.0 data and power transmission in embedded and portable electronic devices. Featuring a Type-B Mini USB receptacle with a 5-pin configuration, this single-port connector supports standard USB 2.0 communication while maintaining a space-efficient footprint. The right-angle orientation enables horizontal cable routing, making it ideal for space-constrained PCB layouts commonly found in consumer electronics, industrial equipment, and communication devices.
Built for durability and consistent electrical performance, the connector features a brass shell with nickel plating that enhances structural strength and corrosion resistance. The phosphor bronze contacts with gold plating ensure excellent conductivity, low contact resistance, and reliable signal integrity across repeated mating cycles. With a rated current of 1A and a rated voltage of 30VAC, the connector provides dependable power and data transmission for USB-enabled devices.
This connector is designed to perform reliably in demanding environments. It meets UL94V-0 flammability standards and supports an operating temperature range of −40°C to +85°C, ensuring stable performance across industrial and consumer applications. The SMT PCB mounting design supports automated assembly processes and improves manufacturing efficiency while maintaining strong mechanical stability.
Key Features
- Mini USB 2.0 Type-B receptacle, 5-pin configuration
- Single-port right-angle design for efficient PCB space utilization
- SMT PCB mounting for automated assembly and reliable board integration
- Nickel-plated brass shell for durability and corrosion resistance
- Gold-plated phosphor bronze contacts for stable signal transmission
- Rated current 1A, voltage 30VAC, operating temperature −40°C to +85°C, UL94V-0 flame rating
Main Specifications:
General Information:
| Product No.: | YC-MUSB-B5-S-RA | |
| Connector Series: | Mini USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Mini USB 2.0 Type-B Socket:
Mini USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
