Vertical USB 2.0 Micro-B Female Connector, 5 Pin, PCB Surface Mount
Introduction:
The vertical USB 2.0 Micro-B female connecto is a compact and reliable interface designed for modern electronic devices requiring stable USB 2.0 connectivity. Featuring a single-port Micro-B receptacle with a 5-pin configuration, this connector supports standard USB 2.0 data transmission while maintaining a space-efficient footprint for PCB integration. Its vertical mounting design enables efficient board layout and secure mechanical stability, making it suitable for portable electronics, consumer devices, and embedded systems.
Engineered for durability, the connector housing is constructed from stainless steel with nickel plating, providing excellent resistance to corrosion and mechanical wear. The phosphor bronze contacts with gold plating ensure low contact resistance and consistent signal integrity over extended mating cycles. With a rated current of 0.5A–1.8A and a rated voltage of 30VAC, this connector supports reliable power and data transmission across various USB-powered applications.
Designed for demanding operating environments, the connector meets UL94V-0 flammability standards and operates within a temperature range of −40°C to +85°C, ensuring dependable performance in industrial and consumer electronics. Its PCB surface-mount design allows efficient automated assembly while maintaining strong electrical and mechanical performance in compact device architectures.
Key Features
- Micro USB 2.0 Type-B female receptacle, 5-pin configuration
- Single-port vertical design optimized for compact PCB layouts
- Stainless steel shell with nickel plating for durability and corrosion resistance
- Gold-plated phosphor bronze contacts for reliable conductivity and long service life
- Rated current: 0.5A–1.8A; rated voltage: 30VAC for stable power and data transmission
- UL94V-0 flame rating with operating temperature from −40°C to +85°C for reliable performance in demanding environments

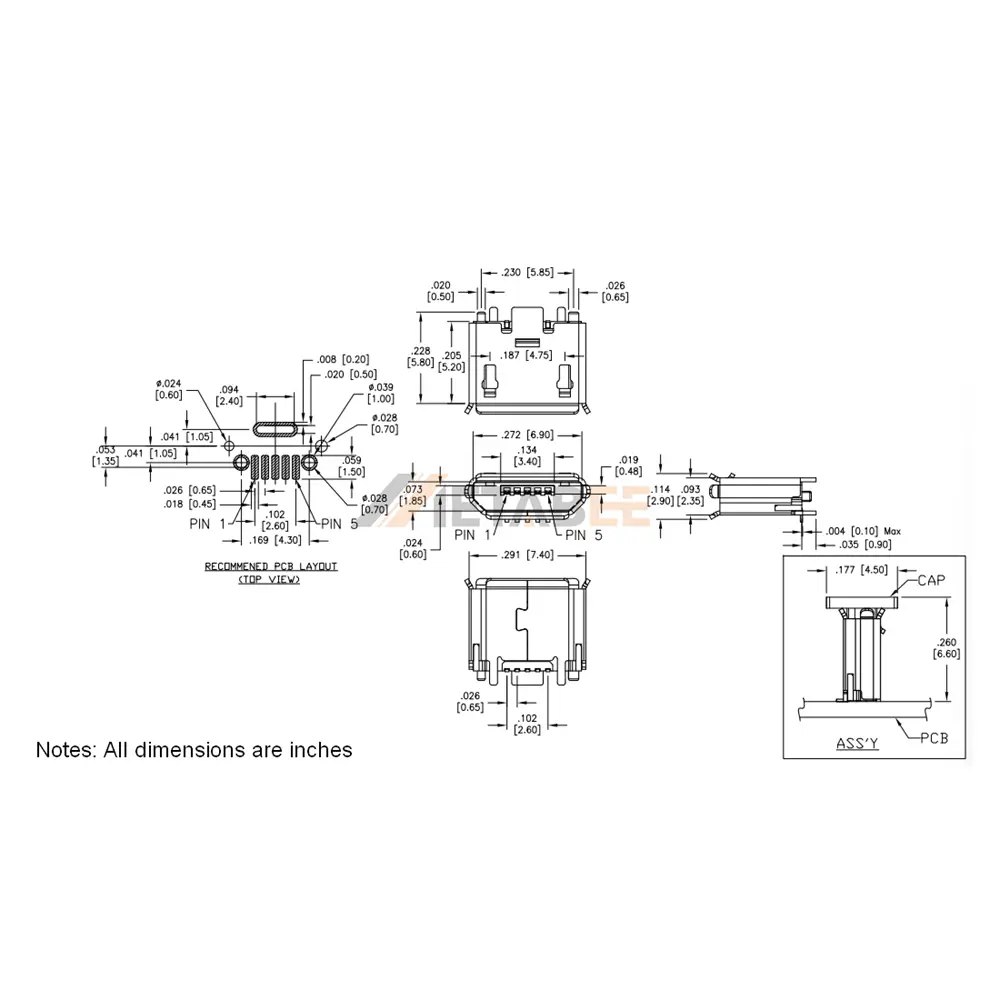

Main Specifications:
General Information:
| Product No.: | YC-MCR-B-S-V-SMT-P-CS1-10-PP-T/R | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A, 1.8A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Micro-B Female Connector:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
