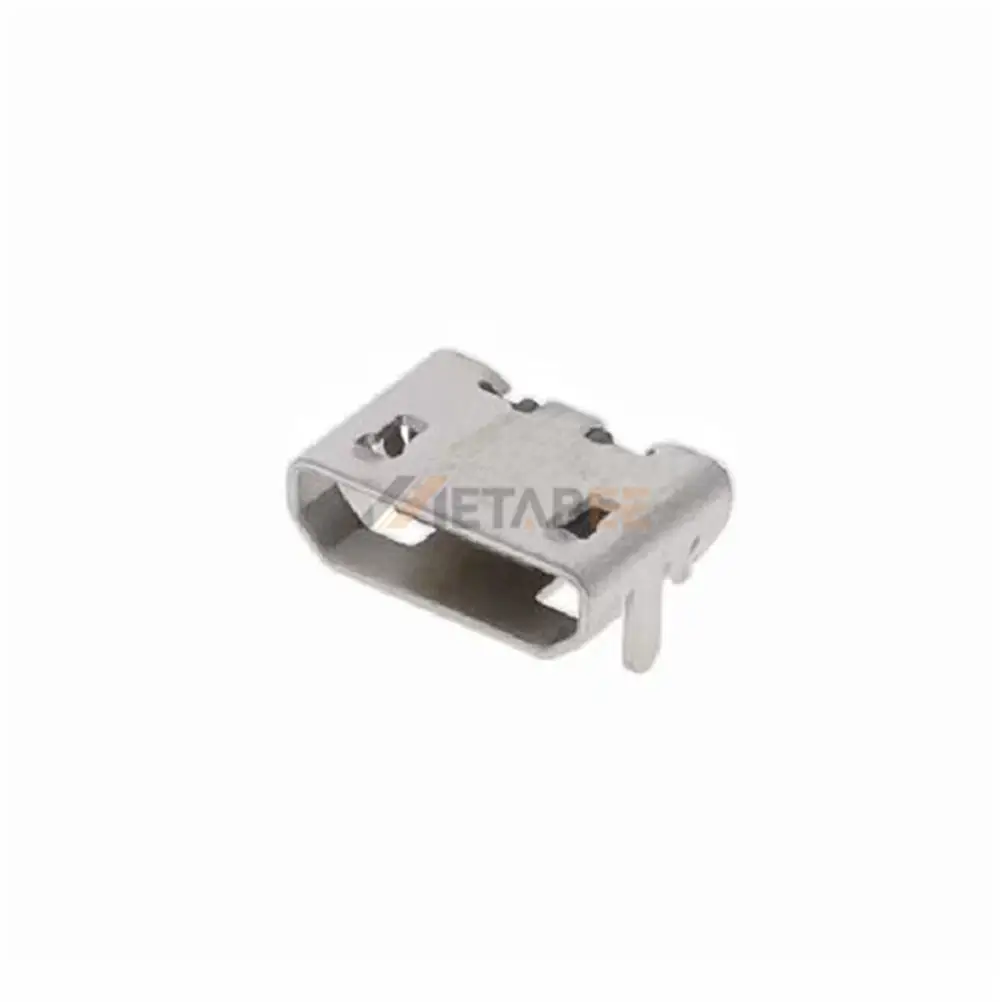

USB 2.0 Micro-B Receptacle, 5 Pin, SMT, Right Angle
Introduction:
This high-performance USB 2.0 Micro-B Receptacle is engineered for seamless data and power transmission in compact electronic designs. Featuring a 5-pin, single-port configuration with a right-angle SMT (Surface Mount Technology) orientation, it provides a stable and space-saving solution for PCB integration in mobile devices, industrial controllers, and consumer electronics.
Built for durability and extreme environments, the connector features a robust Stainless Steel shell with Nickel plating for superior corrosion resistance. The Copper Alloy contacts are finished with Gold plating to ensure high-speed signal integrity and prevent oxidation over time. With a wide operating temperature range from -40°C to +85°C and a UL94V-0 flammability rating, this connector guarantees reliable performance under demanding conditions.
Key Features
- Interface Type: USB 2.0 Micro-B (Type B) Single Port Receptacle.
- Mounting Design: Right Angle, SMT (Surface Mount) for efficient PCB assembly.
- Premium Materials: Stainless Steel shell with Nickel plating for enhanced longevity.
- High Conductivity: Gold-plated Copper Alloy contacts for stable, low-resistance connections.
- Electrical Specs: Supports rated currents of 1A and 1.8A for versatile power delivery.
- Industrial Grade: Operating range of -40°C to +85°C with a UL94V-0 fire safety rating.
Main Specifications:
General Information:
| Product No.: | YC-MCR-B-S-RA-SMT-CS5A-NF-T/R | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A, 1.8A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Micro-B Receptacle:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
