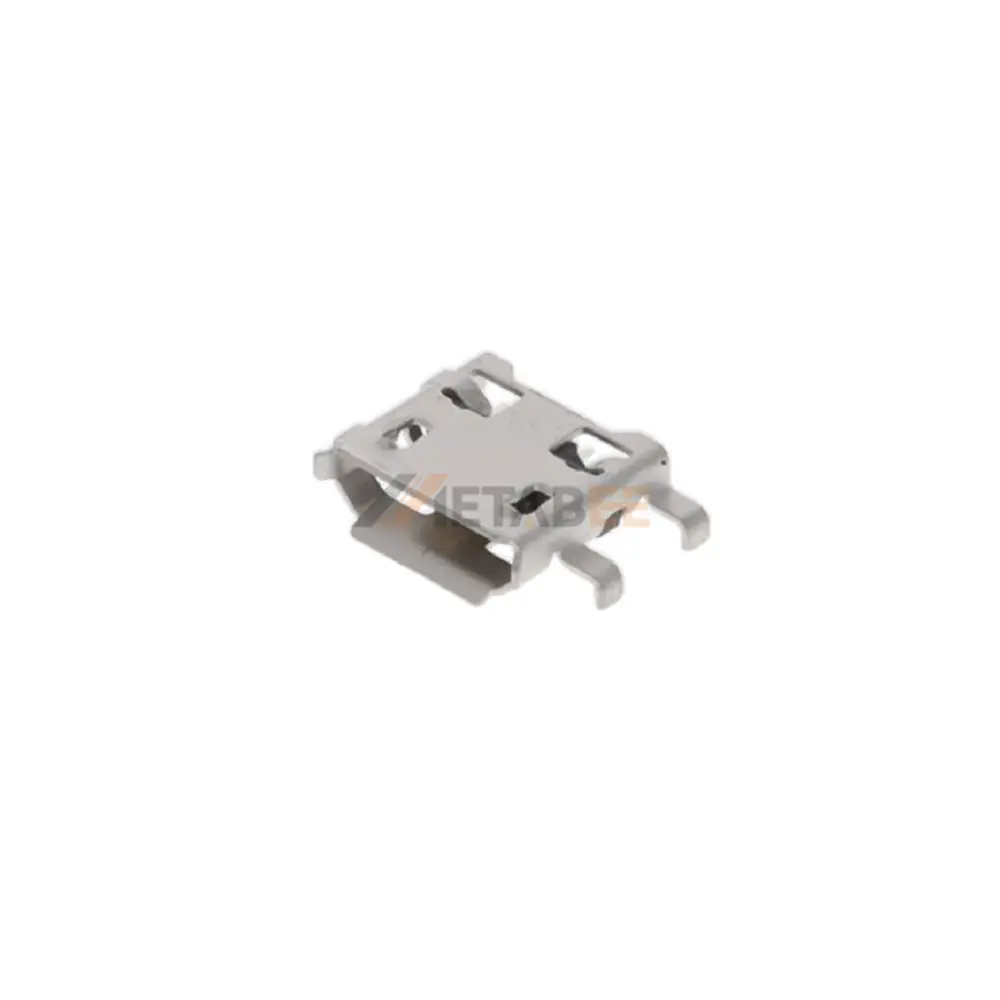

Micro USB 2.0 Type-B Connector, Receptacle, 5 Pin, SMT, R/A
Introduction:
The Micro USB 2.0 Type-B connector is a compact and reliable interface designed for stable data transmission and power delivery in modern electronic devices. Featuring a single-port Micro USB Type-B receptacle with a 5-pin configuration, this connector supports USB 2.0 high-speed data transfer up to 480 Mbps, making it suitable for mobile devices, embedded systems, portable electronics, and consumer hardware. The right-angle orientation allows efficient PCB layout in space-constrained designs while maintaining a robust and secure connection.
Engineered for durability and consistent electrical performance, the connector housing is manufactured from stainless steel with nickel plating, providing excellent mechanical strength and corrosion resistance. The copper alloy contacts with gold plating ensure low contact resistance, improved conductivity, and long mating cycle life. Designed for SMT PCB mounting, the connector supports automated assembly processes and enhances manufacturing efficiency in high-volume production environments.
With a rated current of 1A, a UL94V-0 flame-retardant rating, and an operating temperature range of -40°C to +85°C, this Micro USB connector delivers reliable performance across demanding environmental conditions. It is widely used in applications such as mobile accessories, IoT modules, charging interfaces, and compact communication devices, where dependable connectivity and durability are essential.
Key Features
- Micro USB 2.0 Type-B receptacle, single-port, 5-pin configuration
- Right-angle (R/A) SMT design for efficient PCB space utilization
- Stainless steel shell with nickel plating for enhanced durability
- Copper alloy contacts with gold plating for stable conductivity
- Rated current: 1A, supporting reliable power and data transmission
- UL94V-0 flame rating and -40°C to +85°C operating temperature range for industrial reliability
Main Specifications:
General Information:
| Product No.: | YC-MCR-B-S-RA-SMT-EH4B-T/R | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Micro USB 2.0 Type-B Connector, Receptacle:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
