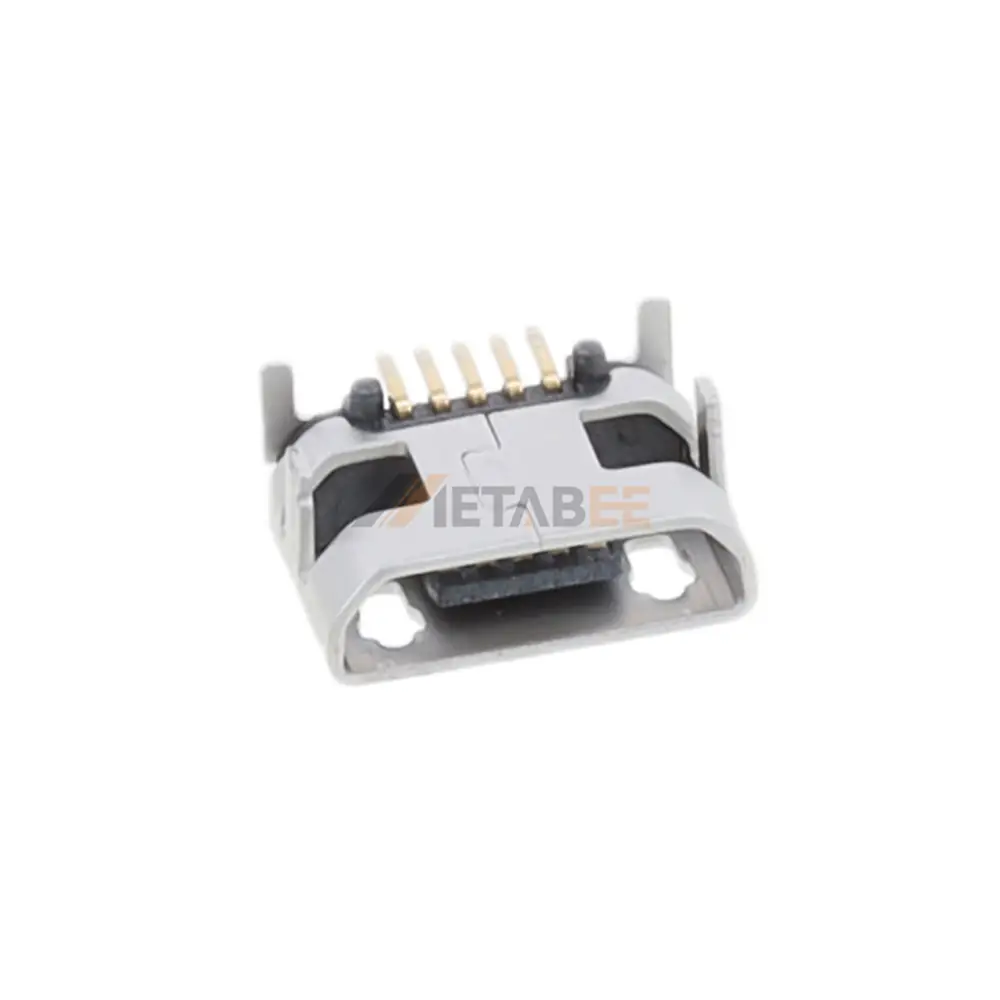

Micro USB 2.0 Type-B Receptacle, 5 Pin, SMT, R/A
Introduction:
This high-performance Micro USB 2.0 Type-B Receptacle is engineered for robust and reliable data connectivity in a compact form factor. Designed as a single-port, 5-pin connector, it serves as an essential interface for a wide array of portable electronic devices requiring Micro USB 2.0 compatibility. Its right-angle mounting orientation and Surface Mount Technology (SMT) make it ideal for space-constrained PCB applications, ensuring efficient board layout and manufacturing. The receptacle design facilitates seamless integration into devices, providing a dependable connection point for cables.
Crafted with durability in mind, the connector features a sturdy Stainless Steel housing, further enhanced with Nickel Plating for superior corrosion resistance and longevity. The critical contact pins are made from high-quality Copper Alloy, ensuring excellent electrical conductivity, and are finished with Gold Plating to maximize signal integrity and minimize oxidation over time. With a current rating of 1A, it reliably supports power delivery alongside data transfer. This connector also meets stringent safety standards, boasting a UL94V-0 flammability rating, and operates efficiently across a broad temperature range from -40°C to 85°C, making it suitable for challenging environmental conditions.
Key Features
- Interface Type: Micro USB 2.0 Type-B Receptacle.
- Pin Configuration: 5-pin for standard Micro USB 2.0 functionality.
- Mounting: Surface Mount Technology (SMT) with Right Angle orientation, PCB Mount.
- Durable Construction: Stainless Steel housing with Nickel Plating, Copper Alloy contacts with Gold Plating.
- Electrical Rating: 1A rated current.
- Environmental Resilience: UL94V-0 flammability rating, -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-MCR-B-S-RA-SMT-CS14-T/R | |
| Connector Series: | Micro USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Micro USB 2.0 Type-B Receptacle:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
