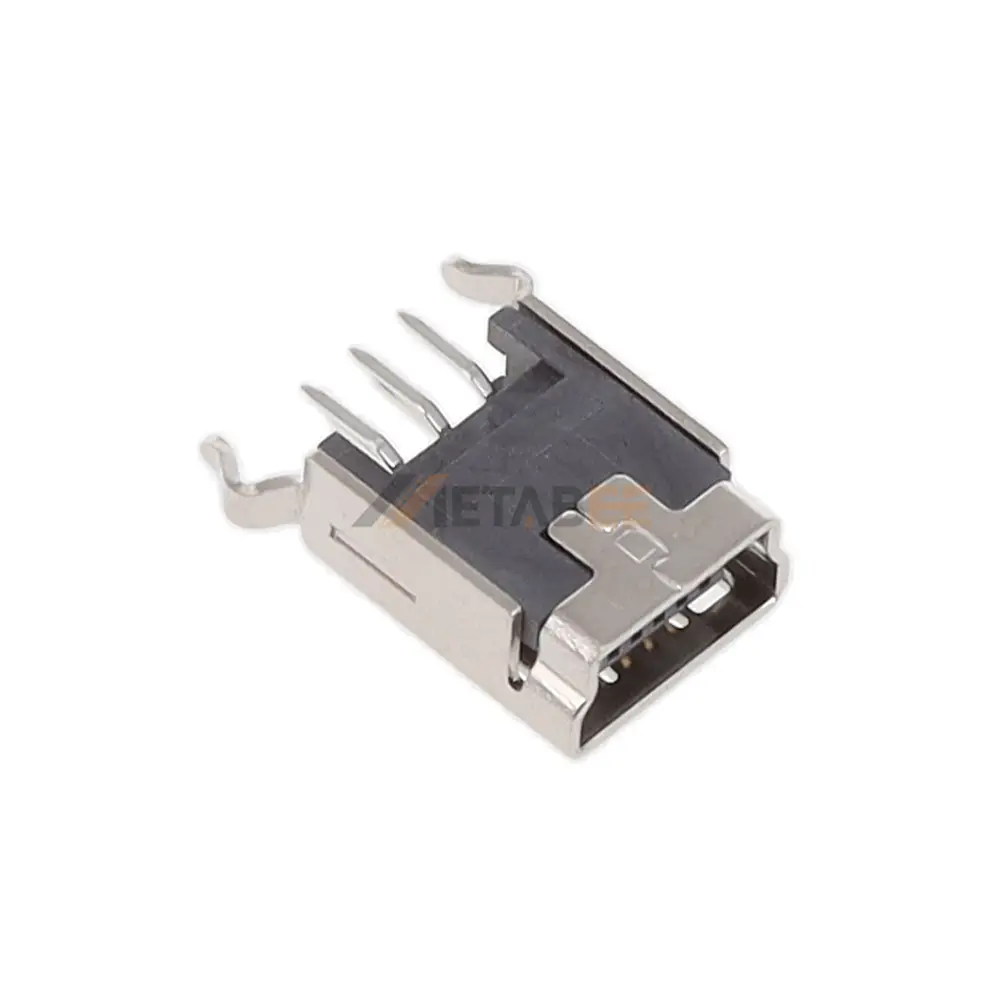

Vertical Mini USB 2.0 Type-B Jack, 5 Pin, PCB Thru-Hole
Introduction:
The vertical Mini USB 2.0 Type-B jack is a high-reliability interconnect solution designed for industrial equipment, embedded systems, and peripheral devices requiring a secure data interface. This receptacle features a right-angle orientation for efficient PCB mounting, allowing for low-profile designs where space conservation is critical. Engineered with a durable Brass shell and a Nickel-plated finish, this connector offers excellent resistance to corrosion and mechanical wear, ensuring long-term performance in demanding environments.
Constructed with Phosphor Bronze contacts featuring Gold plating, this USB 2.0 connector guarantees superior conductivity and maintains signal integrity over repeated mating cycles. It is rated for 1A of current and 30VAC, making it suitable for standard power and data transmission needs. The connector is manufactured from a UL94V-0 rated housing, ensuring high flame retardancy for safety compliance, and supports a wide operating temperature range of -40°C to +85°C for reliable functionality in extreme conditions.
Key Features
- Interface: Vertical Mini USB 2.0 Type-B Receptacle (Female) with 5 contacts.
- Mounting: Right-Angle orientation for low-profile PCB mounting via Thru-Hole.
- Durable Construction: Brass shell (Nickel Plated) and Gold-plated Phosphor Bronze contacts for high cycle life.
- Electrical Rating: Supports 1A current and 30VAC voltage for reliable power delivery.
- Safety & Compliance: UL94V-0 flame-retardant housing for high fire safety standards.
- Temperature Range: Robust performance in extreme environments from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | YC-MUSB-B5-S-VT-02 | |
| Connector Series: | Mini USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical Mini USB 2.0 Type-B Jack:
Mini USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
