USB-B 3.0 Receptacle, 9 Pin, PCB Mount, THM, Right Angle
Introduction:
The USB-B 3.0 receptacle is a high-performance connectivity solution designed for reliable data transfer and power delivery in industrial, commercial, and consumer electronics. Engineered with a Type B, single-port interface, this receptacle features a right-angle orientation for space-saving PCB mounting, making it ideal for applications where board layout optimization is critical. The through-hole mounting (THM) design ensures robust mechanical retention and long-term durability, even in demanding environments.
Constructed with a brass shell finished in nickel plating, this connector offers excellent corrosion resistance and EMI shielding. The contacts are formed from copper alloy with a gold-plated finish, ensuring superior conductivity and repeated mating cycle durability. Rated at 0.25A and 1.8A with a voltage rating of 30V, it supports standard USB power requirements. Additionally, the housing complies with UL94V-0 flammability rating, and the component operates reliably across a wide temperature range of -40°C to +85°C, making it suitable for harsh industrial settings.
Key Features
- Right-Angle Orientation – Space-saving design for efficient PCB layouts.
- Through-Hole Mounting – Strong mechanical anchorage for reliable performance.
- Durable Construction – Nickel-plated brass shell with gold-plated copper alloy contacts.
- High Reliability – UL94V-0 rated housing; operating temperature from -40°C to +85°C.
- Versatile Power Rating – Supports 0.25A and 1.8A at 30V for standard USB applications.
- USB 3.0 Type B Interface – Single-port, 9-pin configuration for high-speed connectivity.

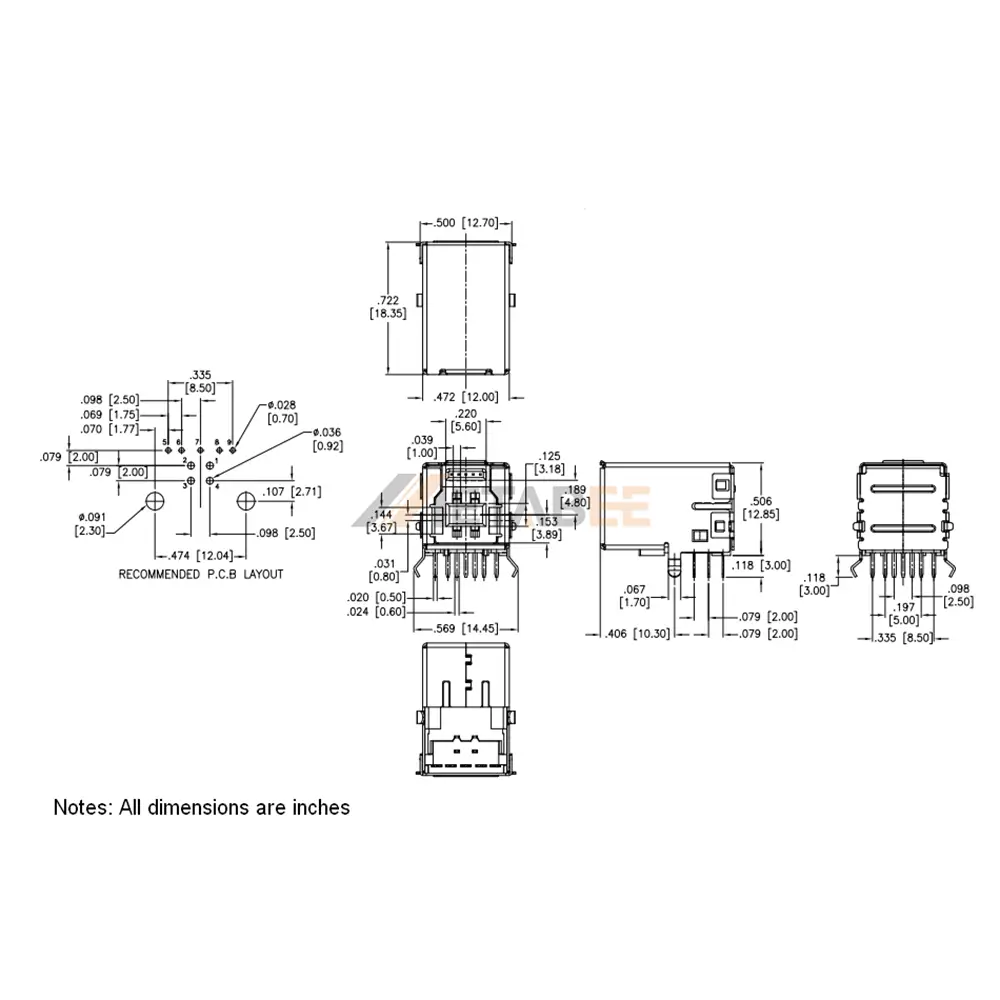

Main Specifications:
General Information:
| Product No.: | YC-USB-B3-S-RA-CS5A-30-HT | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-B 3.0 Receptacle:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
