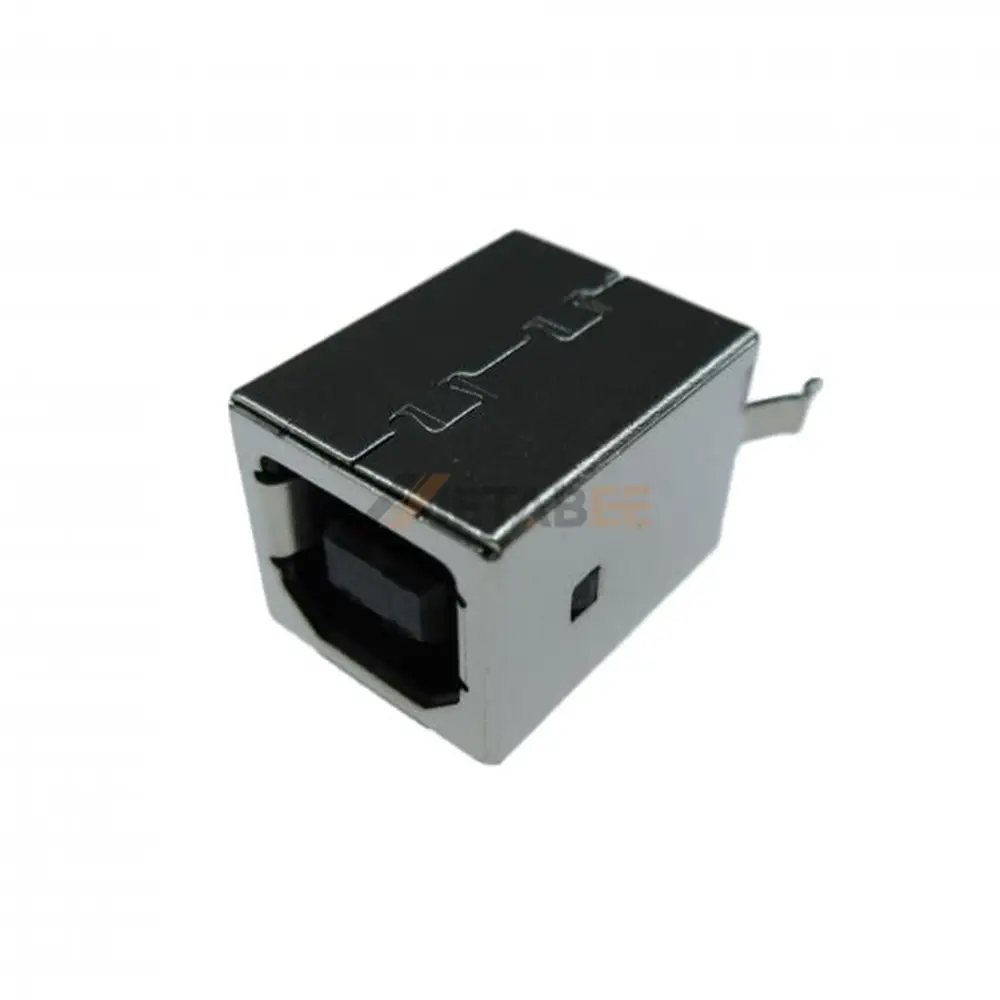

Vertical USB-B 2.0 Jack, 4 Pin, PCB Mount, PCB Thru-Hole
Introduction:
The vertical USB 2.0 Type B female connector is a high-performance, single-port receptacle engineered for space-efficient PCB layouts. Its unique Vertical mounting orientation and Through-Hole Technology (THT) design allow for a minimized footprint on the circuit board, making it an ideal choice for compact industrial equipment, high-end audio interfaces, and peripheral devices requiring a robust upright connection.
This connector is built for extreme durability, featuring a Nickel-plated Copper Alloy shell that provides exceptional EMI shielding and mechanical strength. The internal Phosphor Bronze contacts are Gold-plated, ensuring superior electrical conductivity and signal integrity even after thousands of mating cycles. With a wide operating temperature range from -40°C to +85°C and a UL94V-0 flame retardancy rating, it guarantees reliable performance in the most demanding environments.
Key Features
- Vertical Orientation: Optimized for space-saving and high-density PCB designs.
- Gold-Plated Phosphor Bronze: High-performance contacts for superior signal integrity.
- Nickel-Plated Copper Alloy Shell: Robust EMI shielding and corrosion resistance.
- 1.5A Current Rating: Supports efficient power delivery and stable data transfer.
- THT PCB Mounting: Through-hole design ensures a secure mechanical bond to the board.
- Industrial Durability: Operating range of -40°C to +85°C with UL94V-0 safety rating.
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-VT-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB-B 2.0 Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
