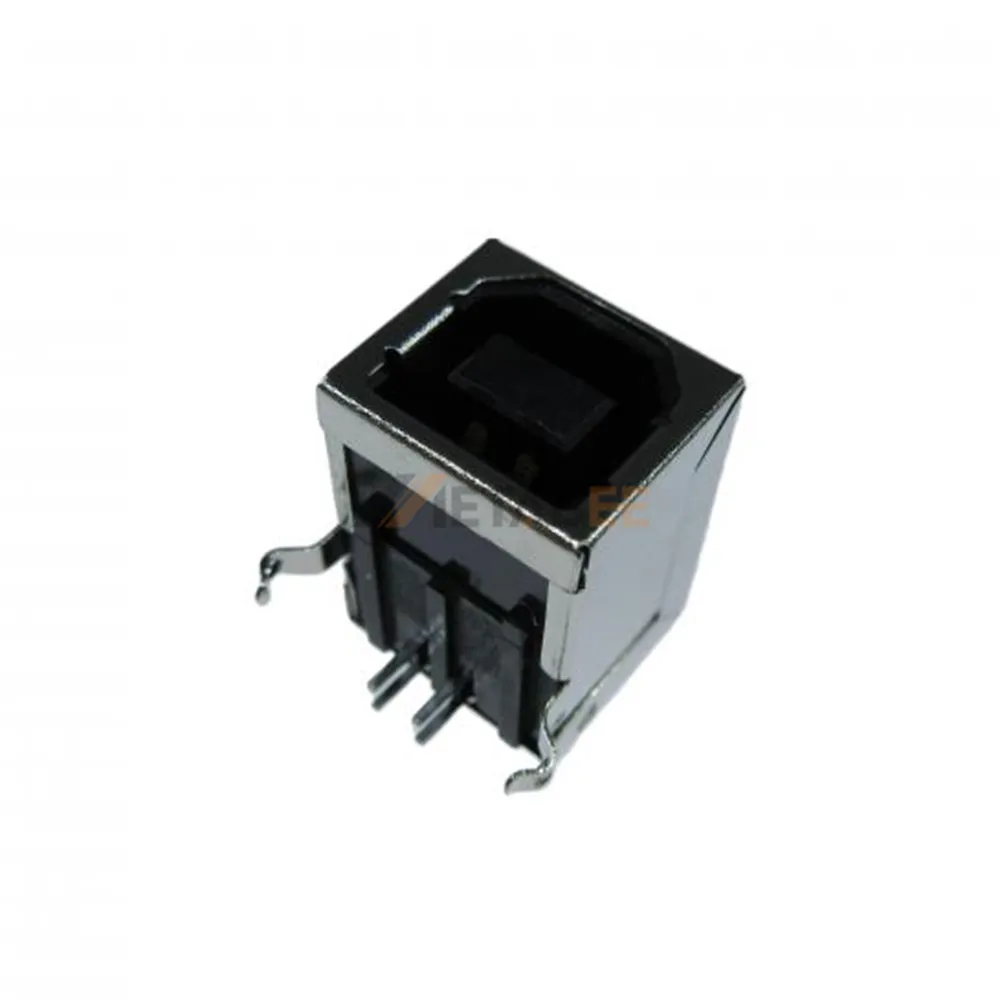

USB-B 2.0 Female Connector, 4 Pin, PCB Mount, SMT, Right Angle
Introduction:
The USB-B 2.0 female connector is engineered for reliable signal transmission and efficient power delivery in compact electronic systems. Designed with a standard Type B interface and single-port configuration, this receptacle ensures secure mating and consistent performance across a wide range of USB-enabled devices. The right-angle orientation supports optimized PCB layouts, making it ideal for space-constrained and horizontal mounting applications.
Constructed from high-quality brass with nickel-plated housing, this connector delivers excellent mechanical durability and corrosion resistance. The gold-plated brass contacts provide superior conductivity, low contact resistance, and long service life, even under repeated insertion cycles. Rated at 1.5A and 30V, it ensures stable electrical performance for both consumer and industrial applications.
With a UL94V-0 flammability rating and an operating temperature range of -40°C to +85°C, this connector meets stringent safety and reliability standards. Its SMT PCB mounting design enables efficient automated assembly, improving production consistency and reducing manufacturing costs.
Key Features
- USB 2.0 Type B female connector, 4-pin single port
- Right-angle SMT PCB mount for space-saving design
- Brass housing with nickel plating for durability
- Gold-plated brass contacts for optimal conductivity
- Rated current 1.5A and voltage 30V
- UL94V-0 rated, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-B 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
