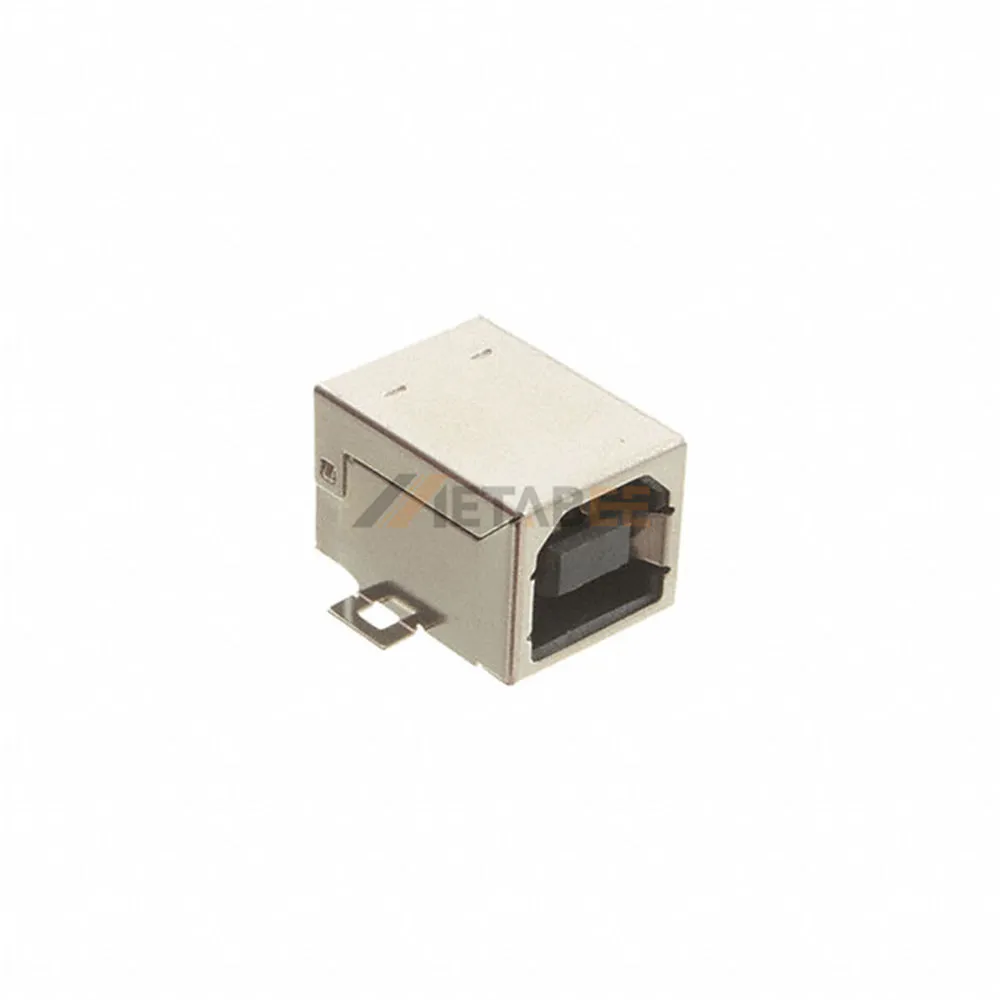

USB-B 2.0 Socket, 4 Pin, PCB Mount, SMT, Right Angle
Introduction:
The USB-B 2.0 socket is designed for reliable data transmission and power delivery in compact electronic assemblies. Featuring a standard Type B interface with a single-port, 4-pin configuration, this receptacle ensures secure and stable connections with USB-compatible devices. Its right-angle design enables efficient PCB space utilization, making it ideal for applications requiring low-profile and horizontal mounting.
Manufactured with a copper alloy shell and nickel plating, the connector offers excellent structural strength and resistance to wear and corrosion. The gold-plated copper alloy contacts enhance electrical conductivity, reduce contact resistance, and ensure long-term performance across repeated mating cycles. With a rated current of 1.5A and a voltage rating of 30VDC, it provides dependable operation for various consumer and industrial applications.
Compliant with UL94V-0 flammability standards and operating within a temperature range of -40°C to +85°C, this connector guarantees safety and stability in demanding environments. Its SMT PCB mounting design supports automated assembly processes, improving production efficiency and consistency.
Key Features
- USB 2.0 Type B receptacle, 4-pin single port
- Right-angle SMT PCB mount for compact layouts
- Copper alloy shell with nickel plating for durability
- Gold-plated contacts for enhanced conductivity
- Rated 1.5A current and 30VDC voltage
- UL94V-0 rated, -40°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA-TSMT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VDC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-B 2.0 Socket:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
