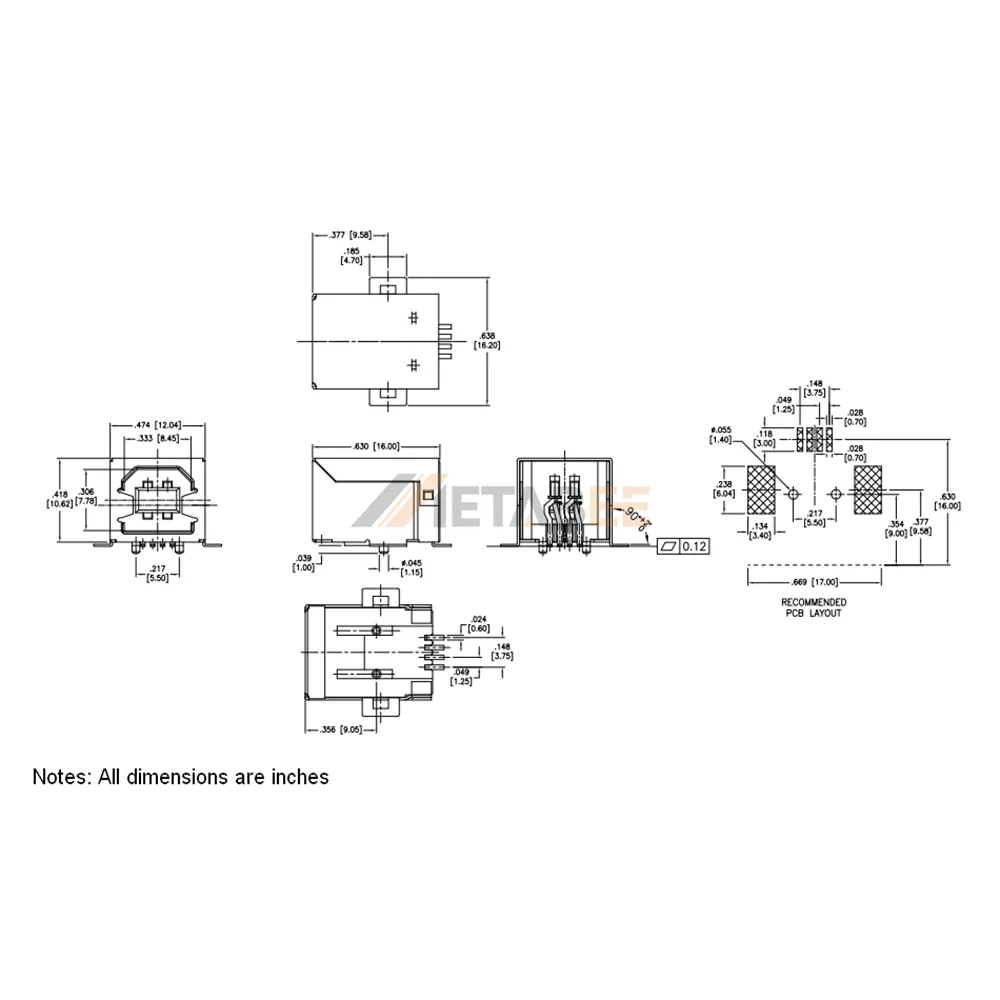

USB-B 2.0 Female Connector, 4 Pin, PCB SMT, R/A
Introduction:
The USB-B 2.0 female connector is a high-performance, single-port receptacle designed for modern Surface Mount Technology (SMT) applications. Featuring a Right Angle (R/A) orientation, this 4-pin socket is engineered to provide a low-profile, horizontal interface on PCBs, making it an ideal choice for compact peripheral devices, industrial controllers, and specialized hardware interfaces.
Built for superior durability and signal integrity, the connector features a Nickel-plated Copper Alloy shell that offers excellent electromagnetic interference (EMI) shielding and mechanical strength. The internal Copper Alloy contacts are Gold-plated, ensuring high-speed data synchronization and stable power delivery of up to 1.5A. With an operating temperature range of -40°C to +85°C and a UL94V-0 flame retardancy rating, this connector is optimized for reliability in both commercial and harsh industrial environments.
Key Features
- Right Angle SMT Design: Optimized for low-profile, surface-mount PCB layouts.
- Gold-Plated Contacts: Ensures maximum conductivity and superior corrosion resistance.
- Nickel-Plated Copper Alloy Shell: Provides rugged durability and effective EMI shielding.
- 1.5A/30VDC Rating: High-efficiency power and data transmission for professional use.
- Industrial Temperature Range: Reliable operation from -40°C up to +85°C.
- Safety Certified: Meets UL94V-0 standards for enhanced fire and heat protection.
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA-TSMT-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VDC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-B 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
