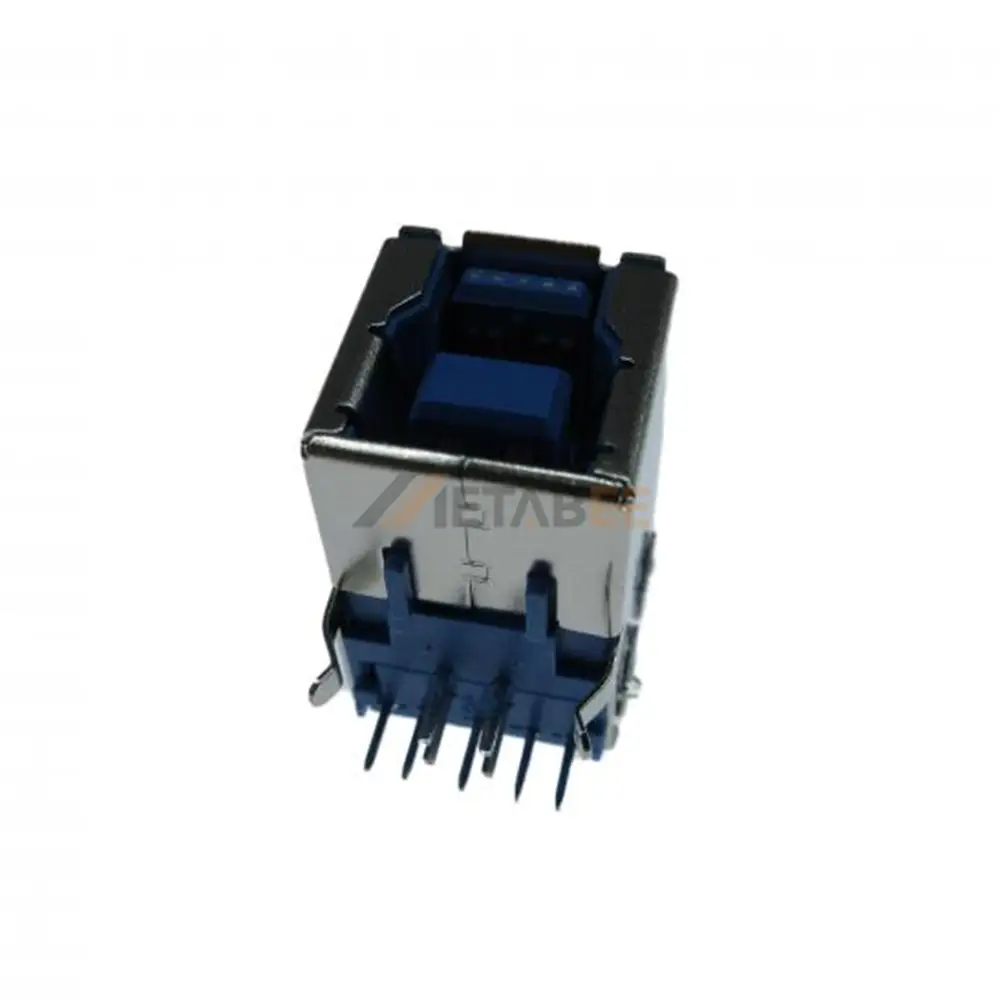

USB 3.0 Type B Receptacle, 4 Pin, PCB THM, Right Angle
Introduction:
The USB 3.0 Type B receptacle is engineered for reliable board-level connectivity in compact electronic assemblies. Designed with a right-angle mounting orientation, this connector enables efficient PCB space utilization while ensuring stable signal transmission. Its single-port Type B interface supports secure mating and is ideal for industrial equipment, embedded systems, and peripheral devices requiring durable USB connections.
Constructed with a high-strength brass shell with nickel plating, this connector offers excellent mechanical durability and corrosion resistance. The phosphor bronze contacts with gold plating ensure superior conductivity, low contact resistance, and extended mating cycles. Rated for 0.25A / 1.8A and 30V, it delivers consistent electrical performance under demanding operating conditions. With a UL94V-0 flammability rating and a wide operating temperature range of -40°C to +85°C, it meets stringent safety and environmental requirements.
Key Features
- USB 3.0 Type B receptacle, single port, 4-pin configuration
- Right-angle PCB through-hole mounting for space-saving layouts
- Brass shell with nickel plating for enhanced durability
- Phosphor bronze contacts with gold plating for reliable conductivity
- Rated current: 0.25A / 1.8A; rated voltage: 30V
- UL94V-0 flammability rating; operating temperature: -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-B3-S-RA | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type B Receptacle:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
