USB 3.0 Type B Receptacle, 9 Pin, PCB Thru-Hole, R/A
Introduction:
Enhance your hardware connectivity with our high-performance USB 3.0 Type B receptacle. Specifically designed for high-speed data transfer applications, this 9-pin connector features a Right Angle (R/A) orientation and PCB Thru-Hole mounting, making it an ideal choice for compact peripheral devices and industrial interfaces where space and stability are paramount.
Engineered for durability and reliability, the connector is housed in a Nickel-plated Brass shell with Gold-plated copper alloy contacts to ensure superior conductivity and corrosion resistance. Built to withstand demanding environments, it operates effectively within a temperature range of -40°C to +85°C and carries a UL94V-0 flammability rating, meeting strict safety standards for modern electronic assemblies.
Key Features
- USB 3.0 Performance: 9-pin configuration supports SuperSpeed data transfer rates.
- Space-Saving Design: Right Angle (R/A) orientation for low-profile PCB integration.
- Robust Construction: Nickel-plated Brass shell for enhanced mechanical shielding.
- Superior Conductivity: Gold-plated contacts minimize signal loss and oxidation.
- High Thermal Stability: Wide operating range from -40°C up to +85°C.
- Safety Certified: UL94V-0-rated housing ensures excellent flame retardancy.

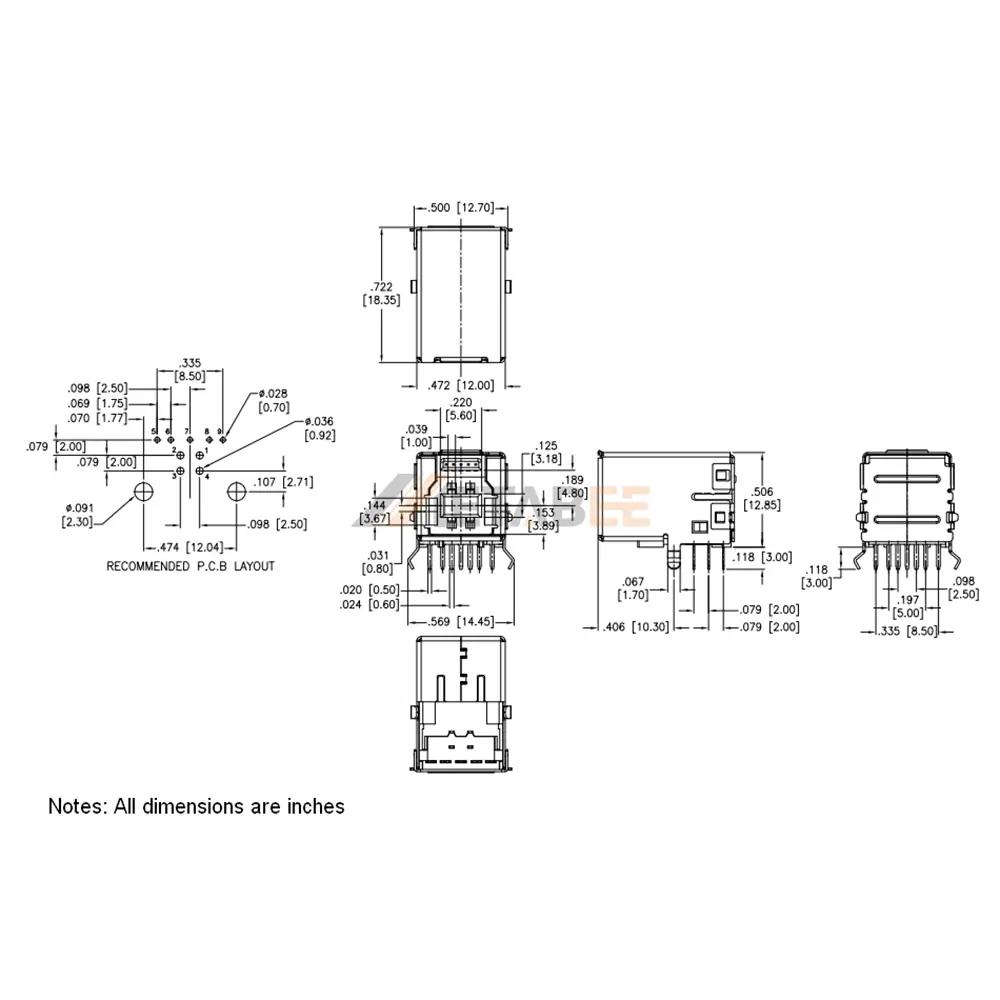

Main Specifications:
General Information:
| Product No.: | YC-USB-B3-S-RA-CS5A-30 | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type B Receptacle:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
