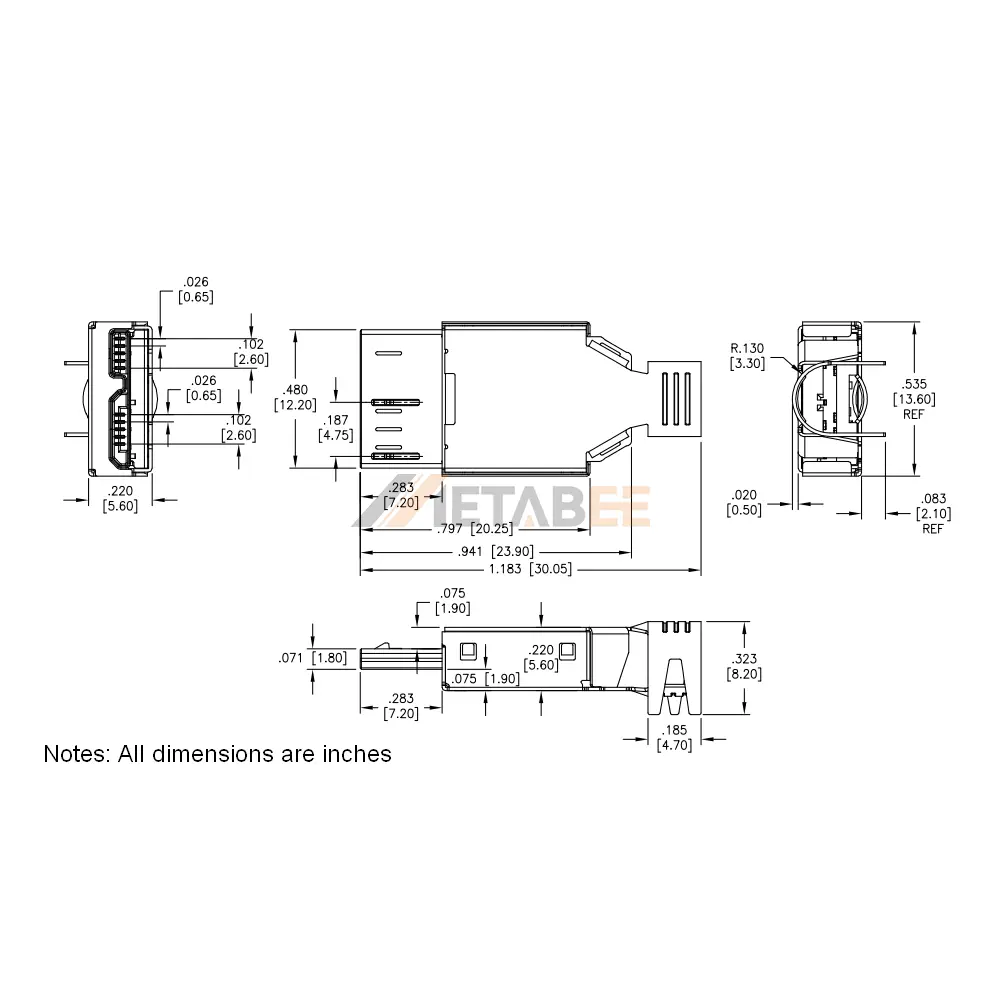

Micro USB 3.0 Type-B Plug, 10 Pin,10 Gbps, Solder, R/A
Introduction:
Experience ultra-fast data synchronization with this high-performance Micro USB 3.0 Type-B Plug. Specifically designed for SuperSpeed applications, this 10-pin connector supports transfer rates up to 10 Gbps, making it ideal for high-speed external drives, high-definition imaging equipment, and advanced mobile peripherals. Its right-angle orientation and solder termination provide a secure, low-profile connection that excels in space-constrained electronic assemblies.
Constructed for industrial-grade longevity, the plug features a rugged SPCC shell with Nickel plating for maximum shielding and corrosion resistance. The internal Phosphor Bronze contacts are finished with Gold plating, ensuring excellent conductivity and signal stability even after repeated mating cycles. With a UL94V-0 flammability rating and a wide operating temperature range from -40°C to 85°C, this connector is built to perform reliably in the most demanding environments.
Key Features
- High-Speed Performance: Supports USB 3.0 SuperSpeed data rates up to 10 Gbps.
- Space-Saving Design: Right Angle (R/A) orientation for efficient, low-profile cable management.
- Premium Contact Material: Gold-plated Phosphor Bronze for superior signal integrity.
- Durable Construction: Nickel-plated SPCC shell provides robust EMI shielding and durability.
- Safety Certified: UL94V-0 flame retardant rating for enhanced fire safety.
- Extreme Versatility: Operating temperature of -40°C to +85°C for industrial use.
Main Specifications:
General Information:
| Product No.: | YC-MCR-BP3 | |
| Connector Series: | Micro USB 3.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 10 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | – | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Micro USB 3.0 Type-B Plug:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
