USB 3.0 Male Connector, Type A, 5 Pin, Solder
Introduction:

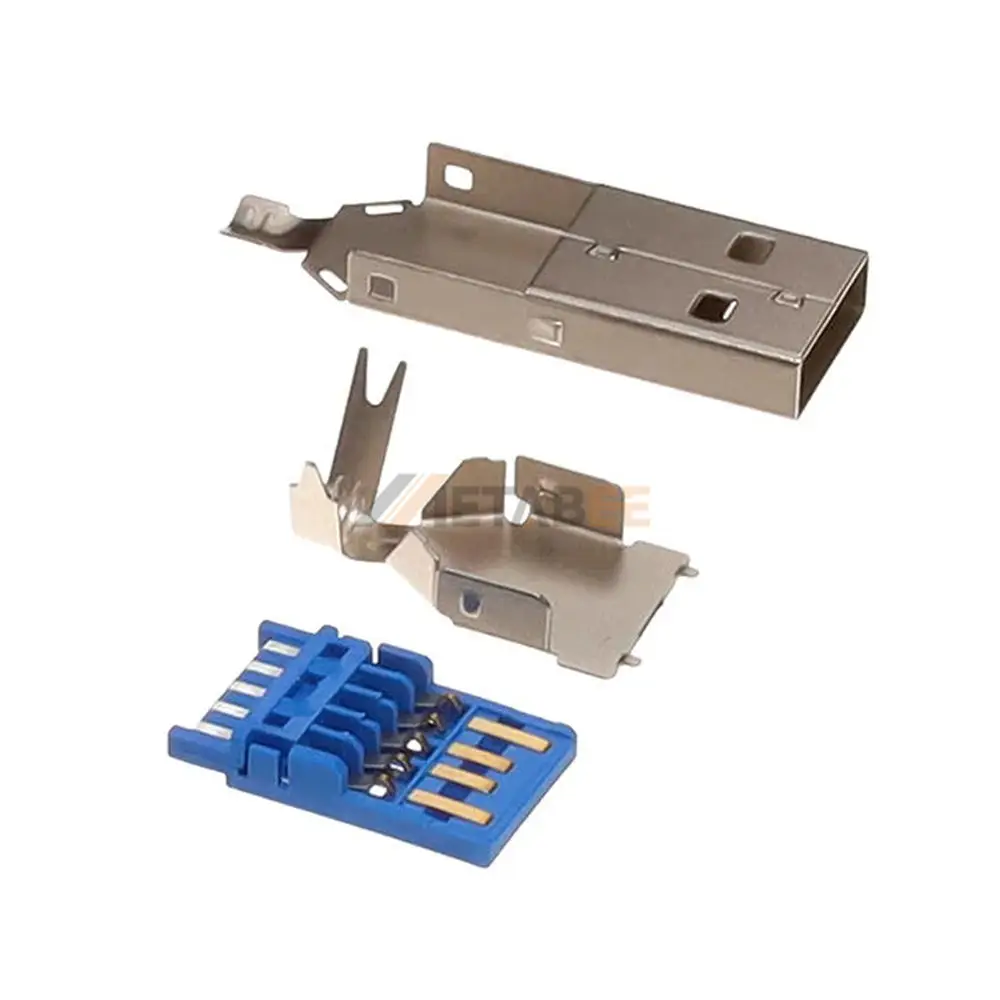

The USB 3.0 Male connector Type A (plug) is engineered for high-speed data transmission and reliable power delivery in modern electronic applications. Designed as a single-port, 9-pin interface, this connector ensures full USB 3.0 functionality with enhanced bandwidth and stable signal integrity. Its solder termination provides a secure and durable connection, making it suitable for cable assembly and industrial-grade devices.
Constructed with a robust SPCC shell and nickel plating, the connector delivers excellent mechanical strength and corrosion resistance. The contact terminals, made of phosphor bronze with gold plating, ensure superior conductivity, low contact resistance, and long mating cycles. With a rated voltage of 30V and current ratings of 0.25A and 1.8A, it supports both data and power transmission efficiently. The UL94V-0 flame-retardant rating enhances safety, while the wide operating temperature range of -40°C to +85°C ensures reliable performance in harsh environments.
Key Features
- USB 3.0 Type A male connector with 9-pin high-speed interface
- Durable SPCC shell with nickel plating for corrosion resistance
- Gold-plated phosphor bronze contacts for optimal conductivity
- Rated voltage 30V; current rating up to 1.8A
- UL94V-0 flame-retardant for enhanced safety compliance
- Operating temperature range: -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-BP3-S | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 5 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Male Connector:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
