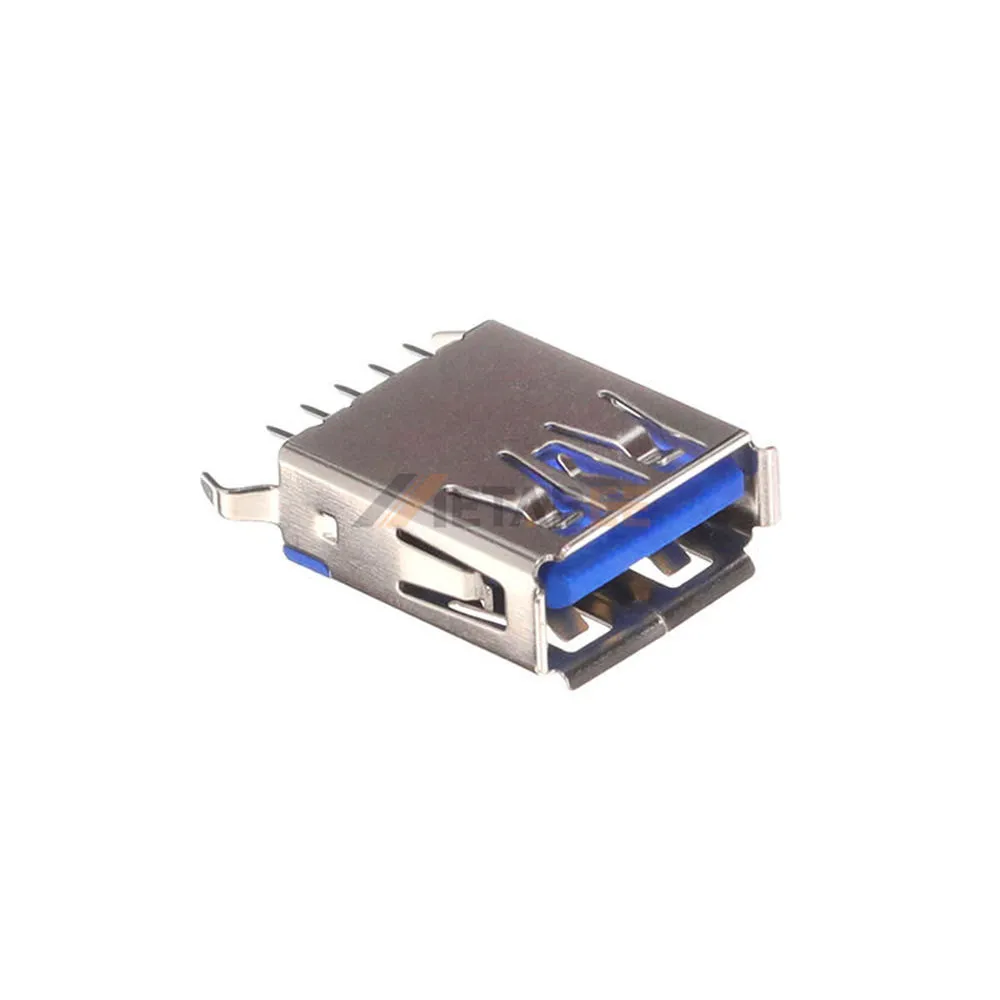

Vertical USB 3.0 Type A Connector, Jack, 9 Pin, PCB Moun, THT
Introduction:
The vertical USB 3.0 Type A connector is a high-performance, single-port receptacle engineered for high-density PCB applications. Its vertical mounting orientation (Through-Hole Technology) is designed to minimize footprint on the circuit board, making it an ideal solution for space-constrained industrial and consumer electronics designs. Supporting SuperSpeed data rates, this 9-pin jack ensures reliable connectivity for next-generation peripherals.
Built for durability and signal integrity, the connector features a Copper Alloy shell with Nickel plating for enhanced mechanical strength and electromagnetic interference (EMI) shielding. The internal contacts are crafted from high-grade Copper Alloy with Gold plating, providing superior conductivity and corrosion resistance. Rated for a wide temperature range of -40°C to +85°C and carrying a UL94V-0 flame retardancy rating, this connector guarantees stable performance in even the most demanding operating environments.
Key Features
- Vertical THT Design: Optimizes PCB real estate with a space-saving vertical footprint.
- SuperSpeed USB 3.0: 9-pin Type A receptacle supporting high-speed data transmission.
- Gold-Plated Contacts: Ensures premium signal integrity and prevents oxidation.
- Rugged Construction: Nickel-plated Copper Alloy shell for maximum durability.
- High Thermal Tolerance: Reliable operation from -40°C to +85°C.
- Safety Rated: UL94V-0 flammability standard for enhanced fire protection.
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-S-VT-CS5A | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | – | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 3.0 Type A Connector:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
