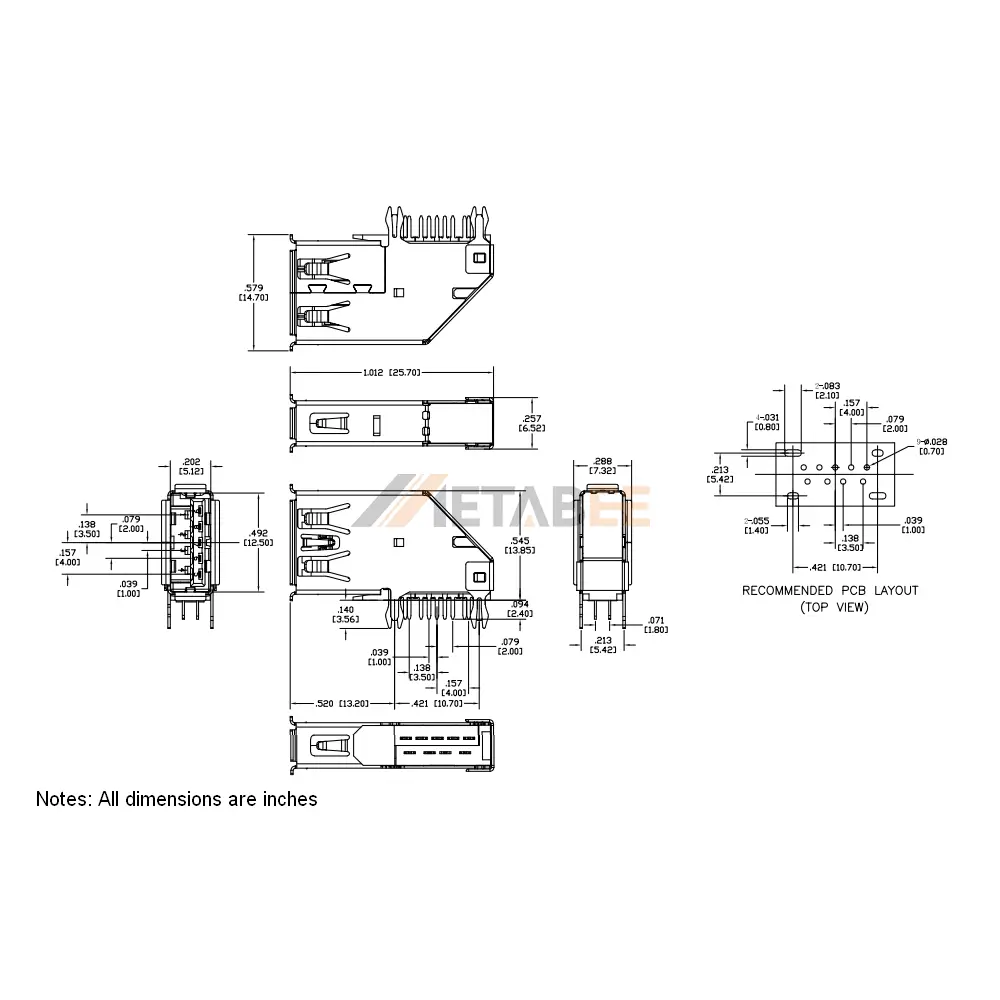

Vertical USB 3.0 Type A Socket, 9 Pin, PCB Thru-Hole
Introduction:
Our vertical USB 3.0 Type A jack is a high-performance, 9-pin receptacle designed for seamless vertical PCB mounting (Through-Hole Technology). This single-port connector is engineered to provide reliable SuperSpeed data transfer while optimizing board space. Featuring a robust Stainless Steel shell with Tin plating, it ensures superior durability and EMI shielding for demanding industrial and consumer electronics.
Built to withstand rigorous environments, this connector utilizes high-conductivity Copper Alloy contacts with Gold plating to ensure stable signal integrity and corrosion resistance. With a wide operating temperature range from -40°C to +85°C and a UL94V-0 flame retardant rating, it is a safe and dependable choice for high-density power and data applications.
Key Features
- Vertical Orientation: Space-saving design ideal for dense PCB layouts.
- SuperSpeed USB 3.0: 9-pin configuration supporting high-speed data protocols.
- Gold-Plated Contacts: Ensures excellent conductivity and long-term reliability.
- Rugged Construction: Stainless Steel shell with Tin plating for enhanced durability.
- Industrial Grade: Wide operating temperature range (-40°C to +85°C).
- Safety Certified: UL94V-0 rated housing for superior flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-S-RU-HT | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 3.0 Type A Jack:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
