USB 3.0 Type A Receptacle, 9 Pin, PCB Mount, DIP, Right Angle
Introduction:
This high-speed USB 3.0 Type A receptacle is designed for high-performance data transmission in a compact, single-port configuration. Featuring a 9-pin DIP (Dual In-line Package) design, this connector provides a stable and secure thru-hole PCB mount. Its vertical mounting orientation is specifically engineered to save horizontal board space, making it an excellent choice for vertically integrated consumer electronics, industrial controllers, and peripheral devices.
Built with premium materials, the connector features a tin-plated brass shell and gold-plated copper alloy contacts to ensure maximum conductivity and long-term resistance to oxidation. With a rated current of 1.8A and a wide operating temperature range from -40°C to 85°C, it is robust enough for both commercial and industrial environments. The UL94V-0 flame retardant rating further guarantees safety and compliance with international standards.
Key Features
- USB 3.0 SuperSpeed: 9-pin configuration supports high-bandwidth data transfer rates.
- Vertical Space-Saving: Vertical orientation minimizes the PCB footprint for dense layouts.
- DIP Thru-Hole Mount: Provides superior mechanical strength and stability on the circuit board.
- Premium Gold Plating: Copper alloy contacts are gold-plated for enhanced signal integrity.
- Industrial Durability: Reliable performance in extreme temperatures (-40°C to 85°C).
- Enhanced Safety: Complies with UL94V-0 flammability standards for fire protection.

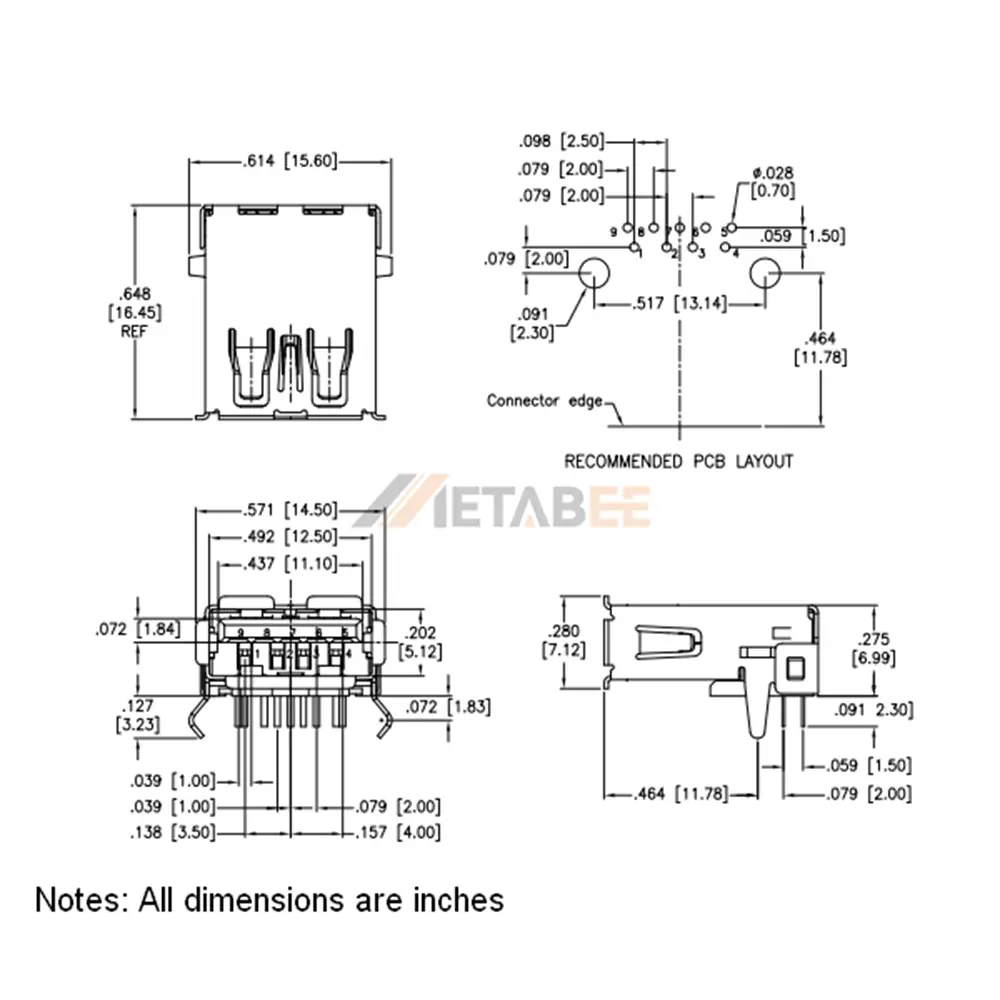

Main Specifications:
General Information:
| Product No.: | YC-USB-A3-S-RA-HT | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | DIP | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.8A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type A Receptacle:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
