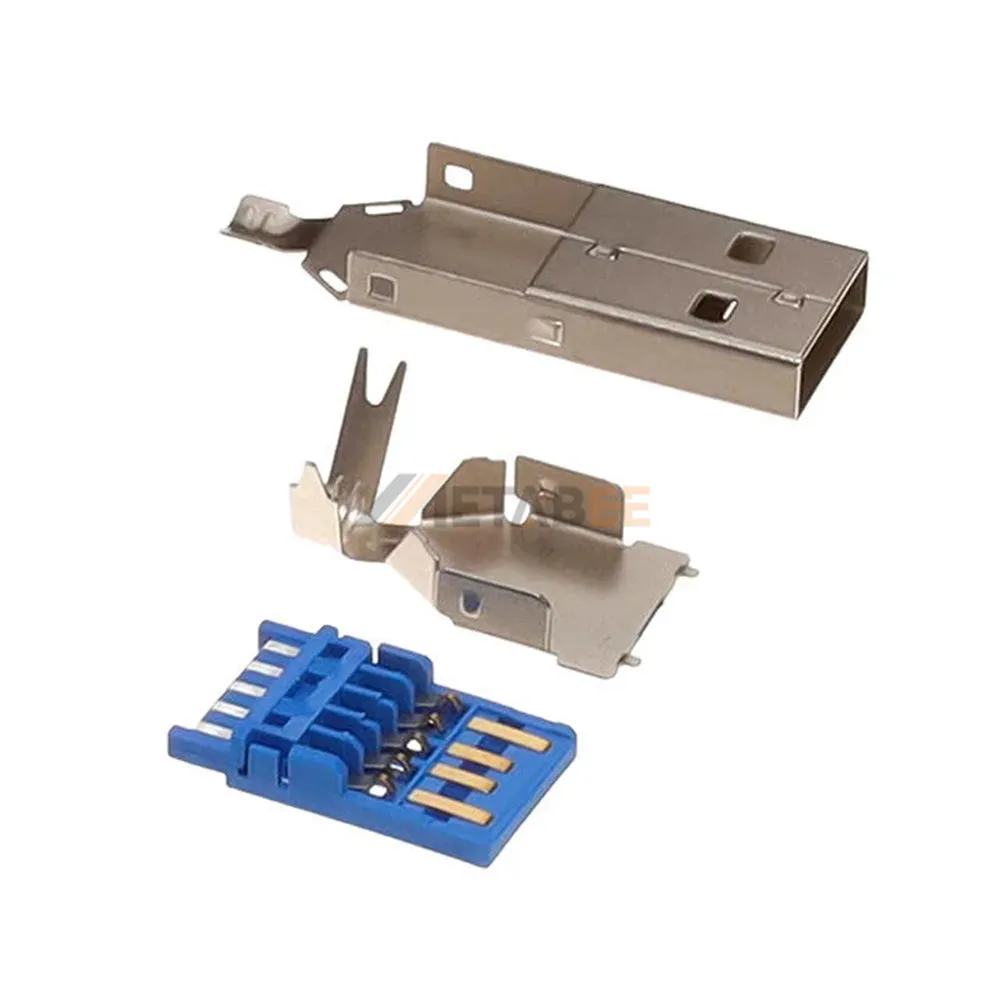

USB 3.0 Type A Plug, 9 Pin, Solder, Cable Mount
Introduction:
The USB 3.0 Type A plug is a high-performance connectivity solution engineered for reliable data transmission and power delivery in modern electronic applications. Designed with a standard Type A interface and single-port configuration, this plug connector ensures stable and efficient connections across a wide range of USB-enabled devices. Its solder termination and cable mount design provide secure mechanical retention, making it ideal for custom cable assemblies and industrial-grade applications.
Constructed with a robust SPCC shell and nickel plating, the connector delivers excellent mechanical strength and corrosion resistance. The brass contacts with gold plating enhance conductivity while minimizing signal loss and wear over extended usage cycles. Rated for currents of 0.25A and 1.8A with a voltage rating of 30V, it supports both data and power requirements efficiently. With a UL94V-0 flammability rating and an operating temperature range of -40°C to 85°C, this connector ensures reliable performance even in demanding environments.
Key Features
- USB 3.0 Type A plug, 9-pin configuration for high-speed data transmission
- Durable SPCC shell with nickel plating for enhanced corrosion resistance
- Gold-plated brass contacts for superior conductivity and longevity
- Solder termination with cable mount design for secure installation
- Rated current: 0.25A / 1.8A; Rated voltage: 30V
- UL94V-0 flame rating and -40°C to 85°C operating temperature range
Main Specifications:
General Information:
| Product No.: | YC-USB-AP3-S | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | Cable Mount | |
| Mounting Feature: | Not Applicable | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type A Plug:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
