Vertical USB 3.0 Type A Socket, 9 Pin, PCB Thru-Hole
Introduction:
The vertical USB 3.0 Type A socket is a high-performance connectivity solution engineered for reliable data transmission and power delivery in modern electronic systems. Designed as a single-port Type A receptacle, this connector features a 9-pin configuration compliant with USB 3.0 standards, ensuring high-speed data transfer and stable signal integrity. Its vertical mounting orientation and PCB through-hole design provide secure mechanical retention, making it ideal for industrial, consumer electronics, and embedded applications.
Constructed with a stainless steel shell and tin-plated finish, the connector offers excellent durability and corrosion resistance in demanding environments. The copper alloy contacts with gold plating ensure superior conductivity, reduced contact resistance, and extended mating cycles. With a rated current of 1.5A and a rated voltage of 30VAC, this connector supports efficient power and data performance. Additionally, it meets UL94V-0 flammability standards and operates reliably within a wide temperature range of -40°C to +85°C, ensuring safety and stability under harsh conditions.
Key Features
- USB 3.0 Type A receptacle with 9-pin high-speed design
- Vertical orientation with PCB through-hole mounting
- Stainless steel shell with tin plating for enhanced durability
- Gold-plated copper alloy contacts for optimal conductivity
- Rated current 1.5A and voltage 30VAC for stable performance
- UL94V-0 rated and wide operating temperature (-40°C to +85°C)

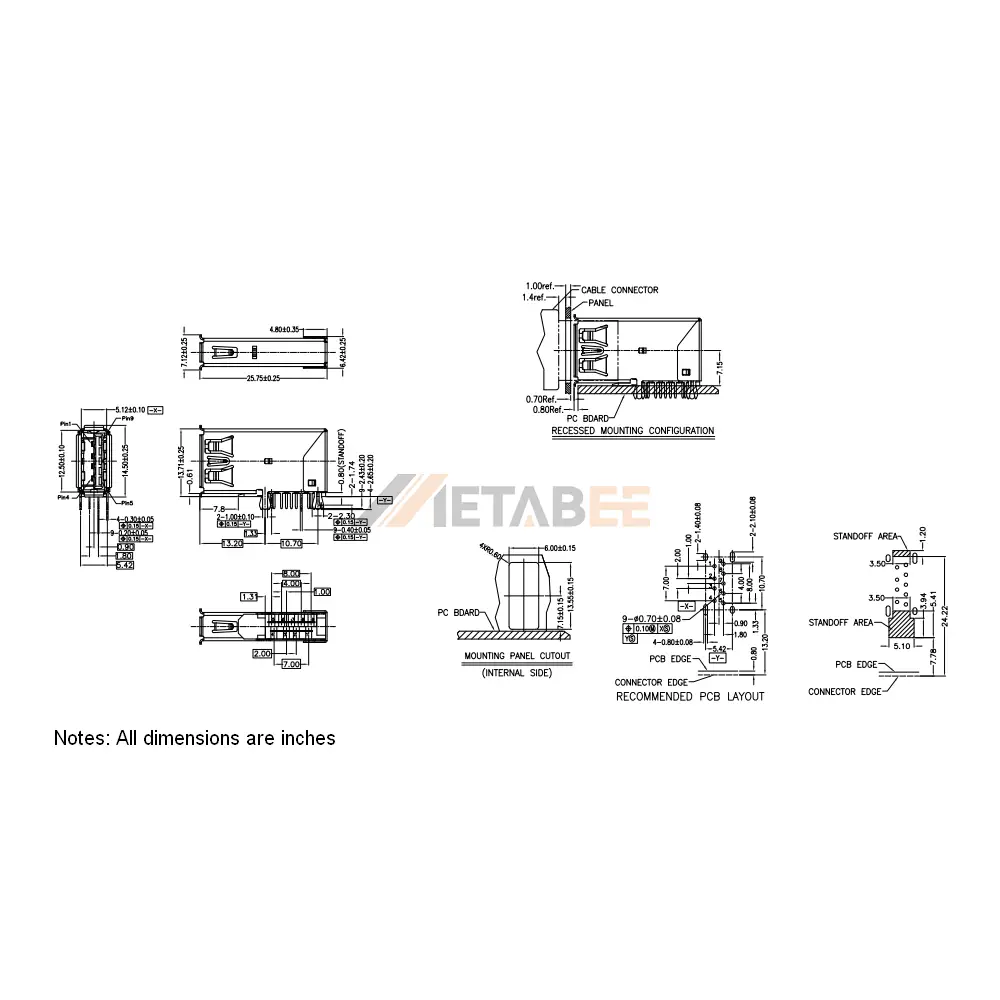

Main Specifications:
General Information:
| Product No.: | YC-USB-A3-S-RU-CS2-BK30-HT | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 9 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 3.0 Type A Socket:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
