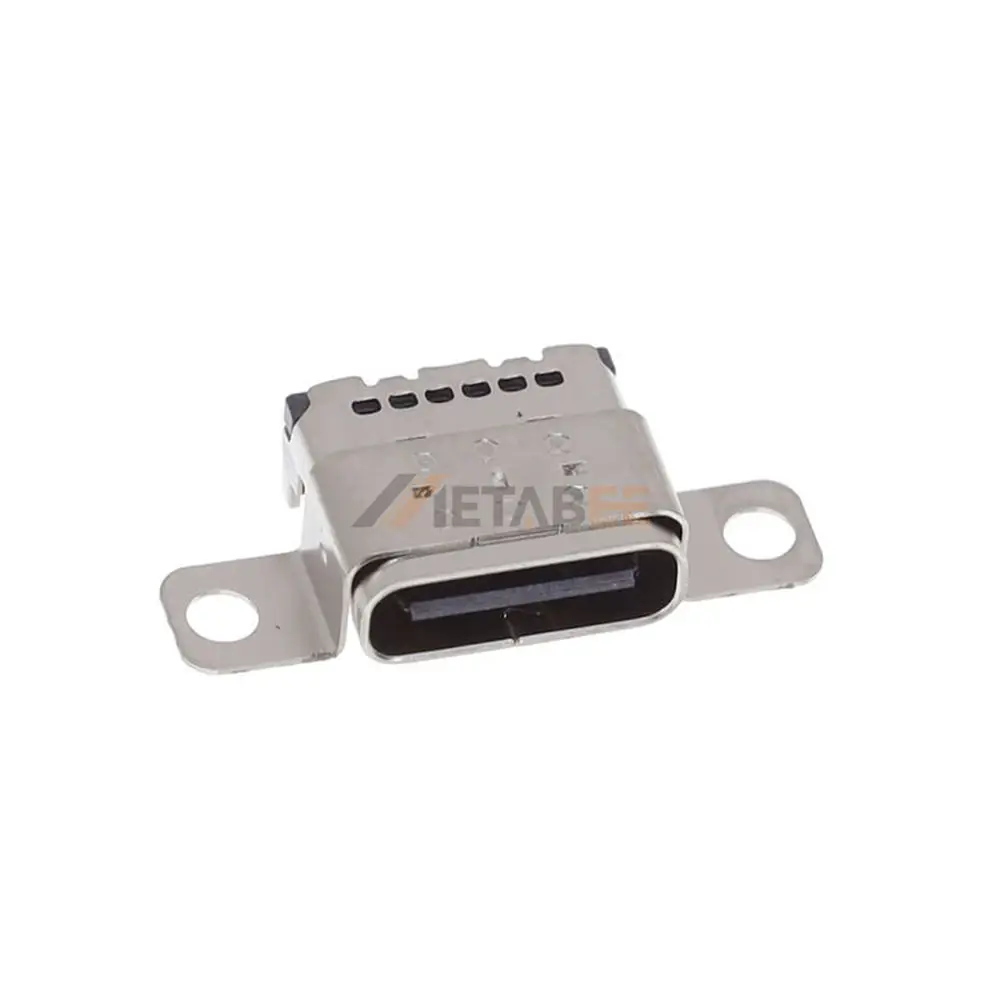

USB-C 3.2 Gen 2 Socket, 24 Pin, 10 Gbps, R/A
Introduction:
The USB-C 3.2 Gen 2 socket is designed to provide reliable high-speed connectivity for modern electronic devices. Featuring a single-port 24-pin Type-C interface, this connector supports data transfer rates up to 10 Gbps, enabling fast communication between host devices and peripherals. The right-angle configuration helps optimize PCB layout and is well suited for compact electronic designs such as laptops, embedded systems, industrial equipment, and consumer electronics.
The connector is constructed with a stainless steel shell with nickel plating, offering excellent mechanical strength and resistance to corrosion. Its copper alloy contacts with gold plating ensure superior electrical conductivity, low contact resistance, and stable signal performance during repeated mating cycles. With a rated current of 5A and a rated voltage of 5V, the connector supports dependable power delivery and high-speed data transmission for USB-C applications.
Engineered for durability and safety, the connector meets UL94V-0 flame-retardant standards and operates reliably within a temperature range of −40°C to +85°C. This robust design ensures long-term performance in demanding environments, making it ideal for communication devices, industrial control systems, and high-performance consumer electronics.
Key Features
- USB-C 3.2 Gen 2 socket supporting 10 Gbps high-speed data transfer
- 24-pin single-port Type-C receptacle for stable connectivity
- Right-angle design for efficient PCB space utilization
- Gold-plated copper alloy contacts for reliable electrical performance
- Nickel-plated stainless steel shell for strength and corrosion resistance
- Rated 5A / 5V, UL94V-0 flame rating, operating temperature −40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-WF-BK-CS43-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.2 Gen 2 Socket, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
