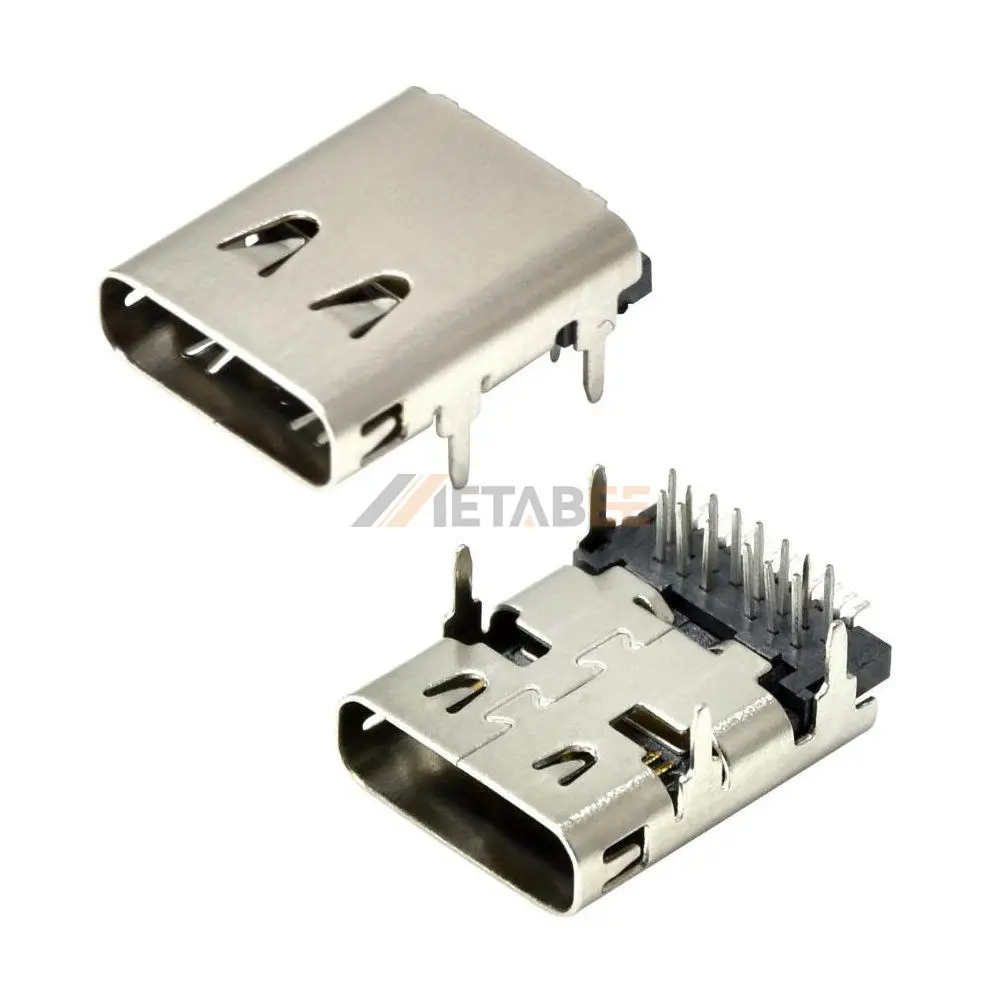

USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps, PCB Through Hole, R/A
Introduction:
Upgrade your high-speed PCB designs with our premium USB 3.2 Gen 2 Type-C Receptacle. Engineered for next-generation data transfer, this 24-pin connector supports blazing-fast 10 Gbps speeds, ensuring your devices are ready for demanding multimedia and data-intensive applications. The connector features a right-angle (R/A) mounting orientation for through-hole PCB installation, providing a robust and reliable mechanical hold that is essential for industrial and consumer electronics where durability is key.
Built with high-quality materials, this single-port receptacle ensures long-lasting performance. The stainless steel shell with nickel plating offers superior corrosion resistance and durability during repeated mating cycles, while the copper alloy contacts with gold plating guarantee excellent conductivity and signal integrity. Compliant with UL94V-0 flammability standards and supporting a wide operating temperature range (-40°C to 85°C), this USB-C connector is the ideal solution for power and data delivery in demanding environments.
Key Features
- High-Speed Data: USB 3.2 Gen 2 interface supporting 10 Gbps data transfer.
- Durable Construction: Stainless steel shell (nickel-plated) with Gold-plated copper alloy contacts.
- Robust Mounting: Right-angle, through-hole termination for secure PCB attachment.
- High Power Handling: Supports up to 5A current and 20V voltage rating.
- Reliable Performance: Operating temperature range of -40°C to 85°C.
- Safety Certified: UL94V-0 flame-retardant rating for enhanced safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-CS27A-BK-30-B-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
