USB-C 3.2 Gen 2 Receptacle, 24 Pin, 10 Gbps, PCB Mount, R/A, Waterproof
Introduction:
The USB-C 3.2 Gen 2 receptacle is a high-performance connector designed for modern electronic devices requiring fast data transfer, reliable power delivery, and enhanced environmental protection. Featuring a single-port 24-pin USB Type-C interface, this connector supports data transmission speeds of up to 10 Gbps, making it suitable for high-speed communication in consumer electronics, industrial systems, and embedded applications. The right-angle PCB mount design enables efficient board layout and improves mechanical stability in compact device architectures.
Constructed with a stainless steel shell with nickel plating, the connector offers excellent mechanical strength and corrosion resistance, ensuring durability in demanding environments. The copper alloy contacts with gold plating provide superior electrical conductivity, low contact resistance, and long mating cycle reliability. With rated current options of 0.25A, 1.25A, 5A, and up to 6.25A, along with a rated voltage of 20V, the connector supports both high-speed data transmission and power delivery requirements in advanced USB-C applications.
Designed for safety and durability, the connector features a UL94V-0 flame-retardant rating and a wide operating temperature range from -40°C to +85°C. The waterproof structure enhances protection against moisture and environmental exposure, making it ideal for rugged electronics, outdoor equipment, industrial devices, and portable consumer products that demand reliable high-speed connectivity.
Key Features
- USB-C 3.2 Gen 2 receptacle supporting data speeds up to 10 Gbps
- 24-pin single-port design for stable high-speed signal transmission
- Right-angle PCB mount for compact and efficient board integration
- Gold-plated copper alloy contacts for reliable electrical performance
- Nickel-plated stainless steel shell for durability and corrosion resistance
- Waterproof design, 20V rated voltage, up to 6.25A current, operating temperature -40°C to +85°C

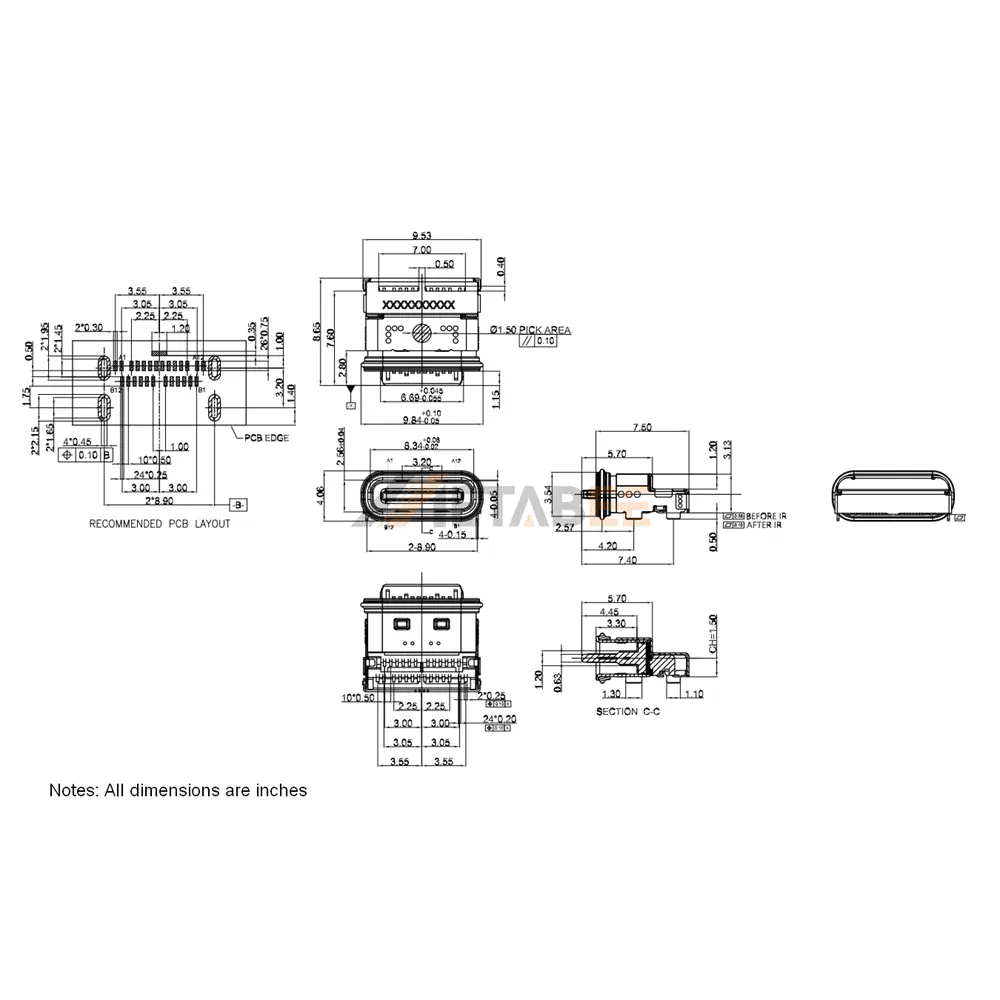

Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-CS15D-SMT-WP-BK-30-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A, 6.25A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.2 Gen 2 Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
