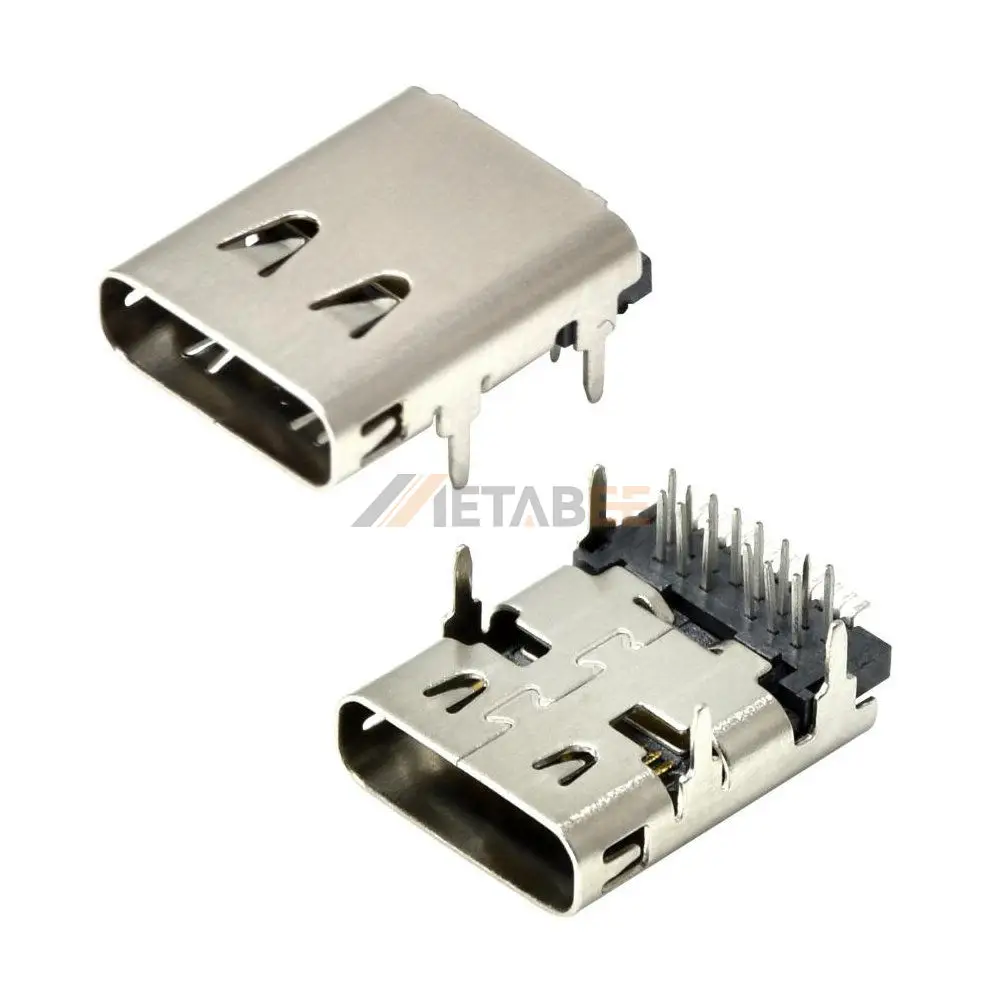

USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps, R/A
Introduction:
This high-performance, single-port, 24-pin Type-C connector is engineered to deliver lightning-fast data transfer speeds of up to 10 Gbps, making it perfect for demanding applications requiring rapid and reliable data flow. Its right-angle (R/A) PCB mount design offers efficient space utilization and simplifies board integration, providing flexibility in your product layout while ensuring a secure connection for modern electronic devices.
Built for robust performance and longevity, this receptacle features a durable brass housing with a nickel-plated finish, providing excellent protection against wear and corrosion. The contacts are meticulously crafted from high-quality copper alloy and finished with a gold plating, guaranteeing superior electrical conductivity and signal integrity over countless mating cycles. Electrically, it is rated for a substantial 5A current and a 20V voltage, accommodating significant power delivery needs. With a UL94V-0 flammability rating and an operating temperature range of -40°C to 85°C, this connector ensures both safety and consistent functionality in challenging environments.
Key Features
- USB 3.2 Gen 2 Type-C: Latest standard for high-speed, reversible connectivity.
- 10 Gbps Data Speed: Ultra-fast data transmission for demanding applications.
- Right-Angle PCB Mount: Optimized for space-saving and easy board integration.
- Premium Construction: Nickel-plated stainless steel housing with gold-plated brass contacts.
- High Power Delivery: Rated for 5A current and 20V voltage.
- Durable & Safe: UL94V-0 flammability and broad operating temperature range.
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-CS27A-BK-30-A-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
