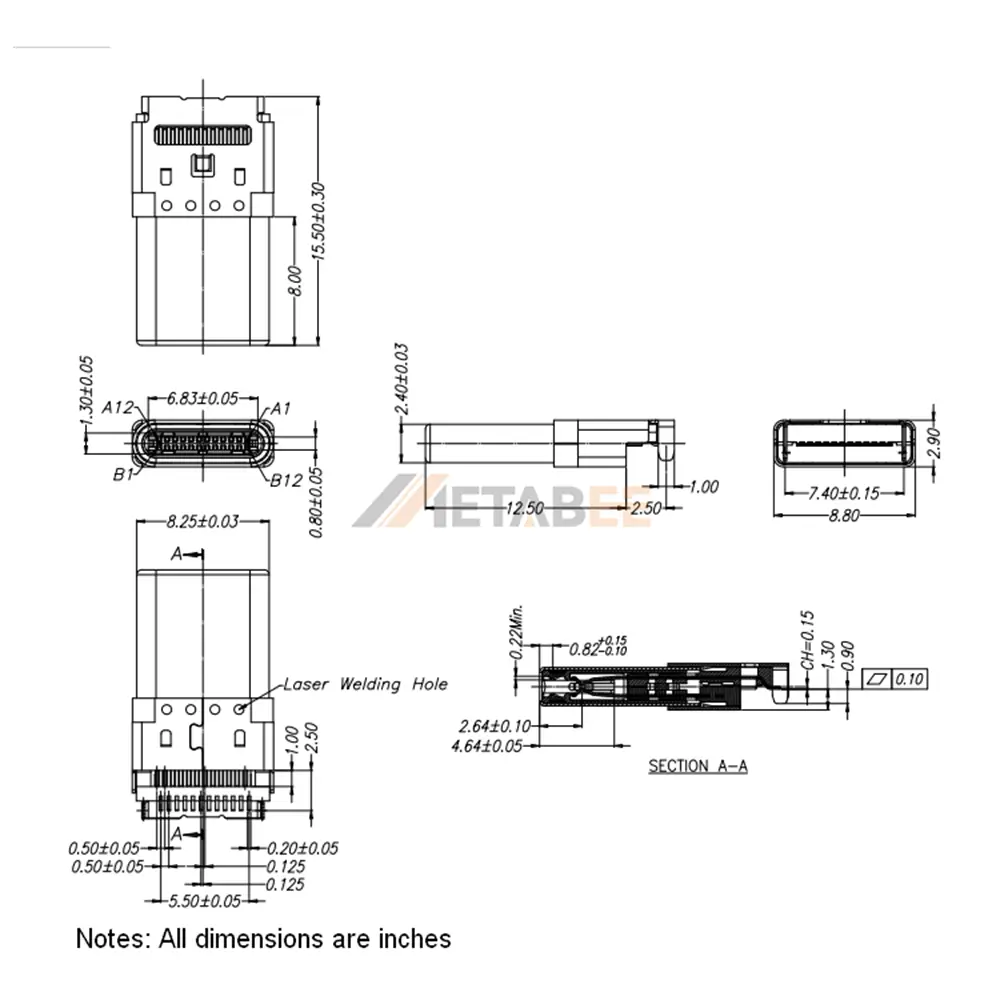

90 Degree USB 3.2 Gen 2, Type C Plug, 24 Pin, 10 Gbps, PCB Mount, SMT
Introduction:
Enhance your device connectivity with the high-performance 90-Degree USB 3.2 Gen 2 Type-C Plug, a 24-pin connector engineered for seamless data transfer and power delivery. This right-angle, PCB mount plug features a compact SMT design, making it perfect for space-constrained applications such as compact peripherals, docking stations, and portable electronics. Supporting USB 3.2 Gen 2 standards, it delivers lightning-fast 10 Gbps data transmission while maintaining full compatibility with existing USB-C ecosystems.
Built for longevity and signal integrity, this plug boasts a robust Stainless Steel shell with a nickel-plated finish to resist corrosion and wear. The internal contacts are precision-crafted from Copper Alloy with a gold-plated finish, ensuring reliable conductivity and minimal signal loss over time. Capable of handling up to 5A of current at 5V, it supports fast charging alongside high-speed data. Engineered to operate reliably in extreme temperatures from -40°C to 85°C and certified with UL94V-0 flame retardant rating, this component guarantees safe, stable performance in both consumer and industrial environments.
Key Features
- Ultra-Fast Performance: Supports USB 3.2 Gen 2 protocol for data transfer speeds up to 10 Gbps.
- High Power Delivery: Capable of handling up to 5A at 5V for efficient device charging.
- Space-Saving Design: 90-degree (right-angle) orientation with SMT termination for compact PCB layouts.
- Durable Construction: Stainless steel shell with nickel plating ensures resistance to corrosion and mechanical stress.
- Superior Connectivity: Gold-plated copper alloy contacts guarantee excellent signal integrity and durability.
- Wide Environmental Tolerance: Reliable operation from -40°C to +85°C with UL94V-0 flame-retardant safety compliance.
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-PLUG-EH-SMT-CS1A-DC-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Horizontal | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 5A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 90 Degree USB 3.2 Gen 2, Type C Plug, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
