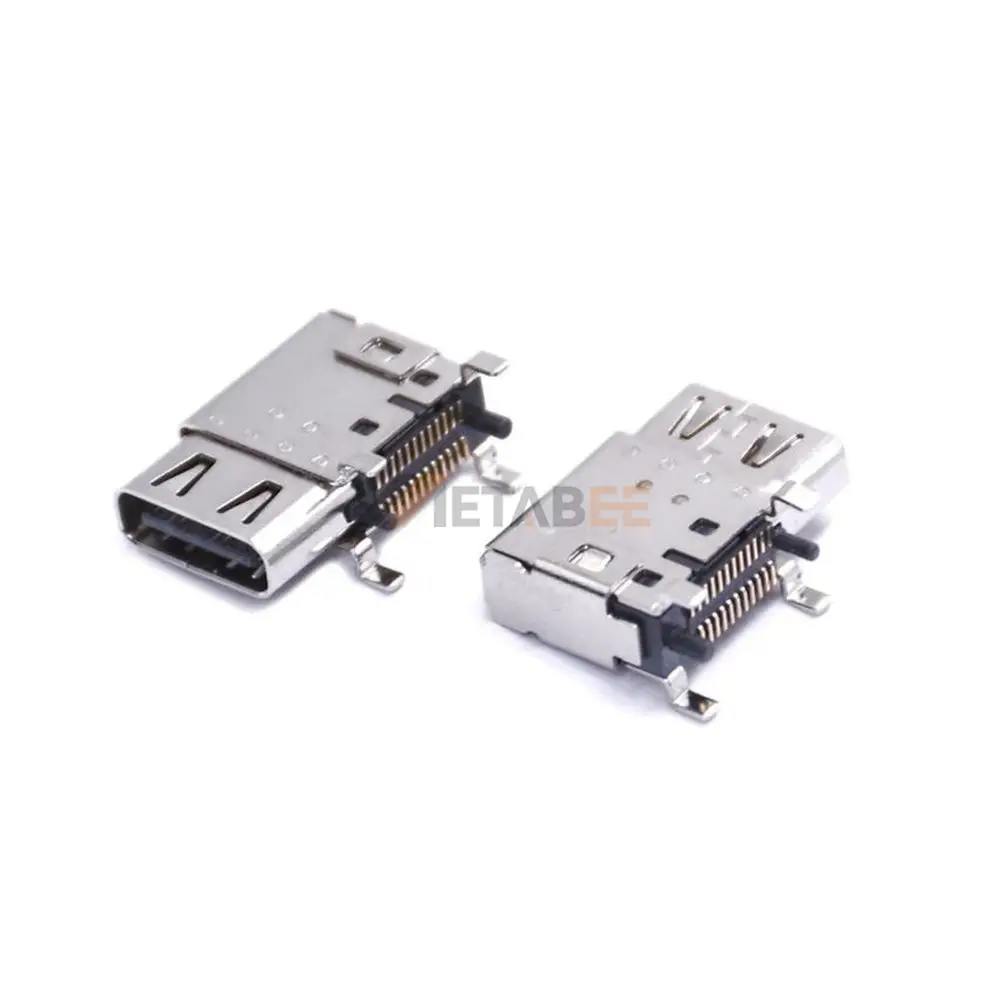

USB-C 3.2 Gen 2 Receptacle, 24 Pin, 10 Gbps, Upright
Introduction:
Step into the future of connectivity with our USB-C 3.2 Gen 2 Receptacle, 24 Pin, 10 Gbps, Upright. This advanced single-port, 24-pin Type-C receptacle is engineered for blazing-fast 10 Gbps data transfer speeds, making it an indispensable component for cutting-edge electronic devices that demand rapid and reliable communication. Its right-angle mounting orientation ensures efficient space utilization and simplifies PCB integration, providing design flexibility while ensuring a secure, stable connection for compact, sophisticated applications.
Crafted for exceptional durability and optimal performance, this receptacle features a robust stainless steel housing adorned with a sleek nickel-plated finish, offering superior protection against wear and corrosion. The internal contacts are meticulously fashioned from high-quality copper alloy and generously gold-plated, ensuring excellent electrical conductivity, impeccable signal integrity, and a prolonged operational lifespan. With versatile current ratings of 0.25A, 1.25A, and 5A, and certified with a UL94V-0 flammability rating, this connector prioritizes both power delivery and safety. It performs flawlessly across a wide temperature spectrum from -40°C to 85°C, ensuring unwavering reliability in diverse environmental conditions.
.
Key Features
- USB-C 3.2 Gen 2: Advanced standard for high-speed, reversible Type-C connectivity.
- 10 Gbps Data Transfer: Ultra-fast data rates for demanding applications.
- Right-Angle Mounting: Space-efficient PCB integration for flexible designs.
- Premium Construction: Nickel-plated stainless steel housing, gold-plated copper alloy contacts.
- Versatile Current Ratings: Supports 0.25A, 1.25A, and 5A for various power needs.
- Durable & Safe: UL94V-0 flammability and wide -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RU-CS4-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.2 Gen 2 Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
