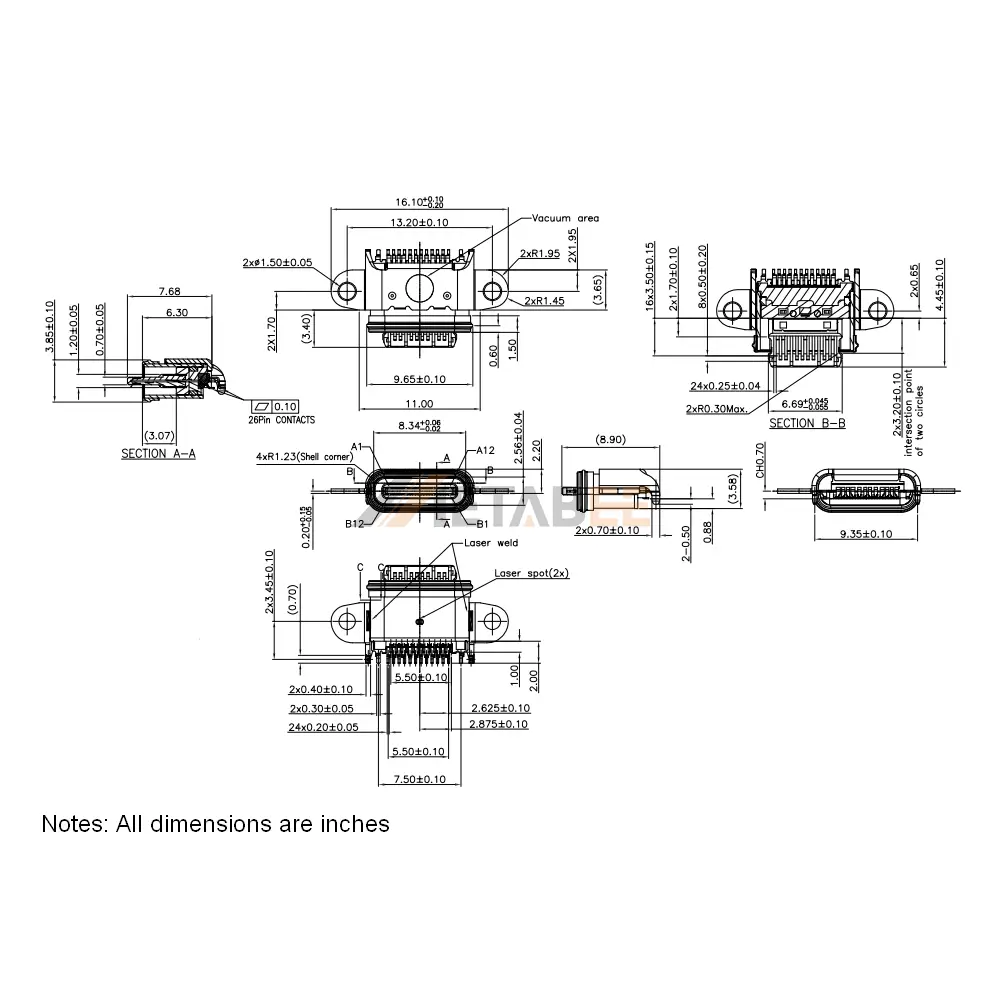

USB 3.2 Gen 2 Type C Socket, 24 Pin, 10 Gbps, R/A, Waterproof
Introduction:
Unleash high-speed performance with our USB 3.2 Gen 2 Type-C socket. This advanced single-port, 24-pin Type-C receptacle is engineered to deliver a blazing 10 Gbps data transfer rate, making it an essential component for next-generation electronic devices demanding rapid and reliable connectivity. Its right-angle (R/A) PCB mount design offers exceptional flexibility in board layout, optimizing space while ensuring a secure and stable connection, ideal for compact and sophisticated applications.
Durability meets precision in this USB-C socket, featuring a robust stainless steel housing with a sleek nickel-plated finish for enhanced protection and aesthetic appeal. The internal contacts are meticulously crafted from high-quality copper alloy and generously gold-plated, guaranteeing superior electrical conductivity, exceptional signal integrity, and a long operational lifespan. Capable of handling current ratings of 1.25A and 1.5A, and certified with a UL94V-0 flammability rating, this connector prioritizes both performance and safety. It operates seamlessly across a wide temperature spectrum from -40°C to 85°C, ensuring unwavering reliability in diverse environmental conditions.
Key Features
- USB 3.2 Gen 2 Type-C: Latest standard for versatile, high-speed connections.
- 10 Gbps Data Transfer: Supports ultra-fast data transmission.
- Right-Angle PCB Mount: Space-saving design for flexible integration.
- Premium Construction: Nickel-plated stainless steel housing, gold-plated copper alloy contacts.
- Dual Current Capacity: Handles 1.25A and 1.5A for various power needs.
- Reliable Operation: UL94V-0 rated, -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-EH-WP-BK-CS42-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 1.5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen 2 Type C Socket, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
