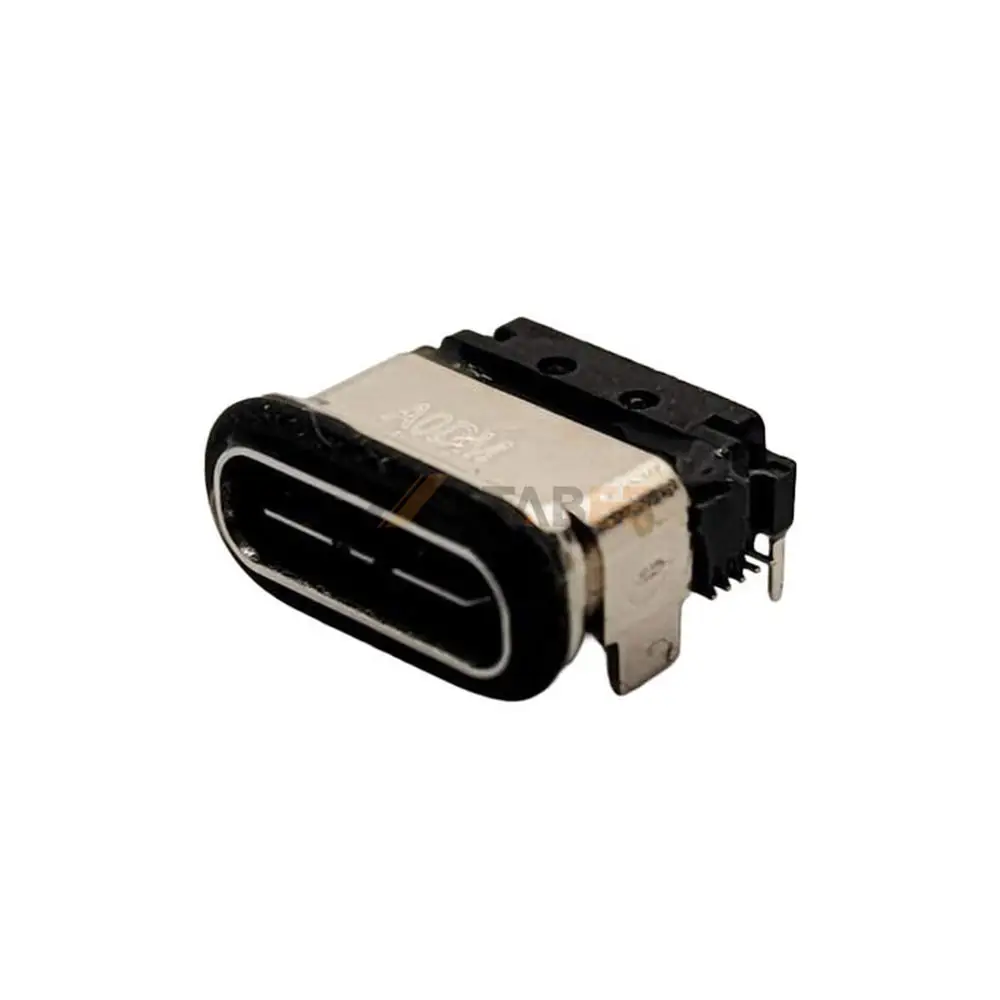

USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps, R/A, Waterproof
Introduction:
The USB 3.2 Gen 2 Type-C receptacle is designed to deliver reliable high-speed connectivity for modern electronic devices. With a single-port 24-pin Type-C interface, this connector supports data transfer rates up to 10 Gbps, ensuring fast and stable communication between devices and peripherals. The right-angle PCB mount configuration helps optimize board space and simplifies integration into compact product designs such as industrial equipment, consumer electronics, and embedded systems.
This connector features a stainless steel shell with nickel plating, providing excellent mechanical strength and corrosion resistance for long-term reliability. The copper alloy contacts with gold plating offer superior electrical conductivity, low contact resistance, and consistent signal integrity. With rated current levels of 0.25A, 1.25A, and up to 3A, along with a rated voltage of 100VAC/DC, it supports both high-speed data transmission and stable power delivery.
Built for durability in demanding environments, the connector meets UL94V-0 flame-retardant standards and operates reliably within a temperature range of −40°C to +85°C. The waterproof structure enhances protection against moisture and harsh conditions, making it suitable for outdoor electronics, communication equipment, and rugged industrial applications requiring dependable USB-C connectivity.
Key Features
- USB 3.2 Gen 2 Type-C receptacle with 10 Gbps high-speed data transfer
- 24-pin single-port interface for stable signal performance
- Right-angle PCB mount design for compact and efficient board layout
- Gold-plated copper alloy contacts for excellent conductivity and durability
- Nickel-plated stainless steel shell for strong mechanical protection
- Waterproof design, 100VAC/DC rating, up to 3A current, operating temperature −40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C32-S-RA-CS30-WP-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 3A | |
| Rated Voltage: | 100V AC/DC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen 2 Type C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
