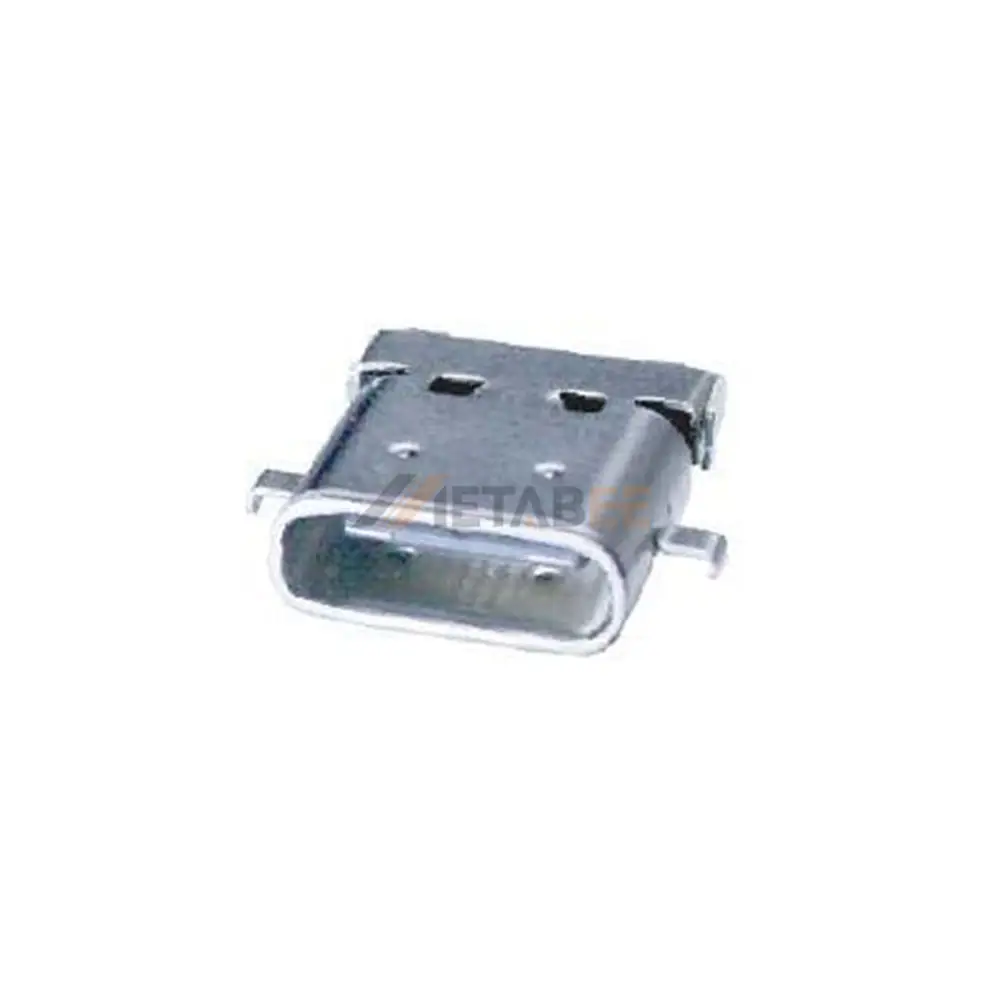

USB-C 3.1 Socket, 24 Pin, 10 Gbps, PCB Edge Mount, R/A
Introduction:
The USB-C 3.1 Socket is a high-performance 24-pin connector designed to support fast data transmission and reliable power delivery in modern electronic devices. Featuring a single-port Type-C interface, this connector supports data transfer speeds up to 10 Gbps, making it ideal for laptops, portable electronics, industrial equipment, and embedded systems. The right-angle PCB edge-mount design helps optimize board space while enabling efficient integration in compact device layouts.
Constructed with a stainless steel shell and nickel plating, the connector offers excellent mechanical strength and corrosion resistance for long-term durability. The copper alloy contacts with gold plating ensure stable electrical performance, low contact resistance, and reliable signal transmission. With a rated current of 3A and rated voltage of 5V, combined with UL94V-0 flame-retardant materials and a wide operating temperature range from -40°C to +85°C, this USB-C connector delivers dependable performance even in demanding environments.
Key Features
- USB-C 3.1 socket with 24-pin high-speed interface
- Data transfer rate up to 10 Gbps
- Right-angle PCB edge-mount design for compact layouts
- Stainless steel shell with nickel plating for durability
- Gold-plated copper alloy contacts for reliable conductivity
- Rated 3A current, 5V voltage, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2.0-BK-HF-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.1 Socket, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
