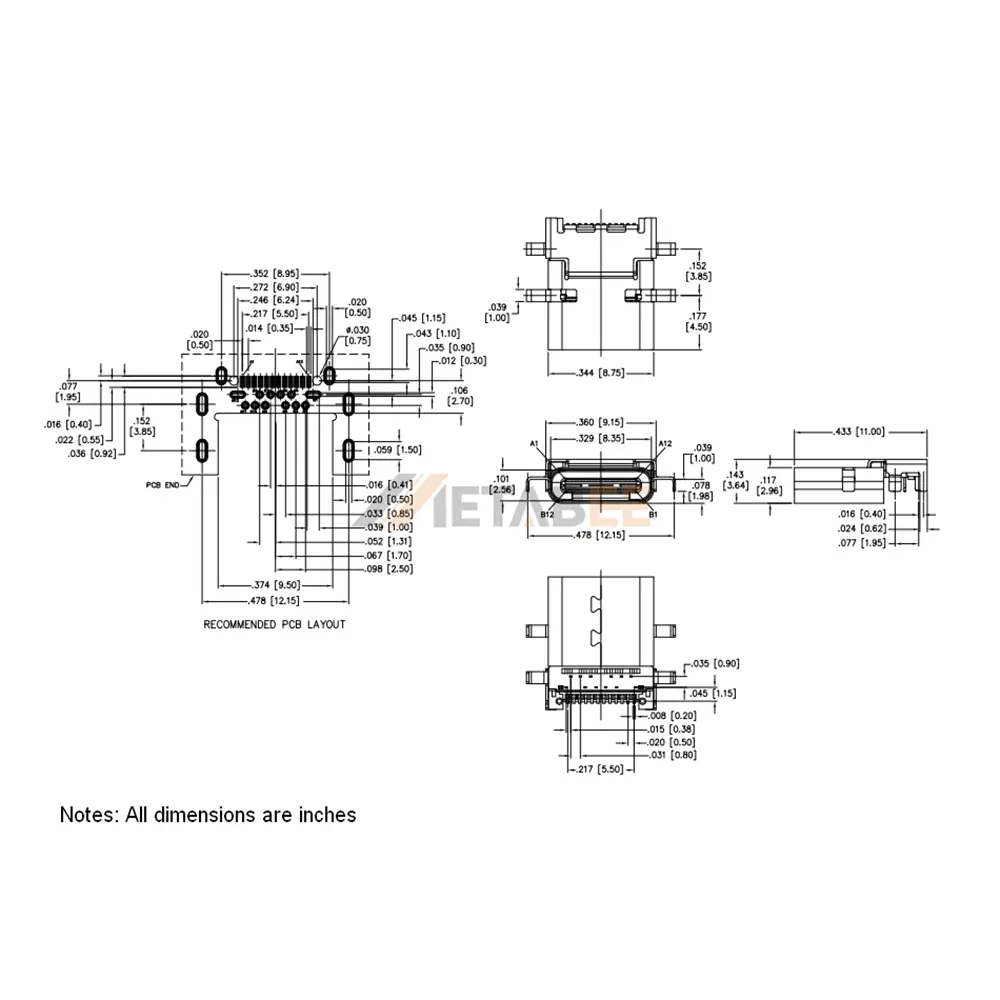

USB-C 3.1 Receptacle, 24 Pin, 10 Gbps, PCB Mount, Edge Mount, R/A
Introduction:
The USB-C 3.1 Receptacle is a high-speed 24-pin connector designed for modern electronic devices requiring reliable data transfer and power delivery. Supporting transmission speeds up to 10 Gbps, this single-port Type-C connector ensures stable performance for laptops, mobile devices, industrial systems, and embedded applications. The right-angle edge-mount configuration enables efficient PCB space utilization and simplifies board-level integration in compact product designs.
Built with a stainless steel shell and nickel plating, the connector offers excellent mechanical strength and corrosion resistance for long-term durability. The copper alloy contacts with gold plating provide superior electrical conductivity and stable signal transmission. With rated current options of 0.25A, 1.25A, and 5A, along with a UL94V-0 flame-retardant rating and a wide operating temperature range from -40°C to +85°C, this connector delivers reliable performance in demanding environments.
Key Features
- USB-C 3.1 receptacle with 24-pin configuration
- High-speed data transmission up to 10 Gbps
- Right-angle PCB edge-mount design for compact layouts
- Stainless steel shell with nickel plating for durability
- Gold-plated phosphor bronze contacts for reliable conductivity
- UL94V-0 flame rating, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH-BK-CS1A-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.1 Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
