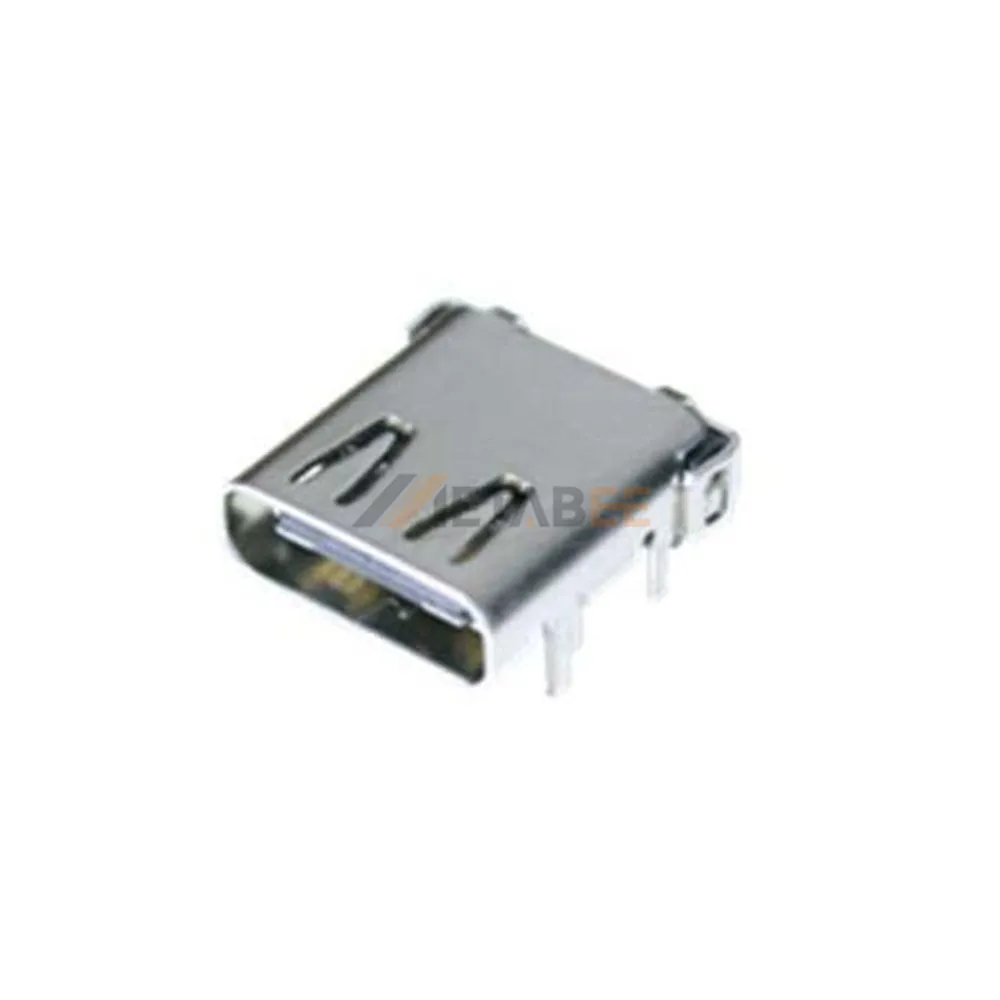

USB-C 3.1 Gen2, Receptacle, 24 Pin, 10 Gbps, PCB Through Hole, R/A
Introduction:
The USB-C 3.1 Gen2 receptacle is engineered for high-speed signal integrity and secure board-level integration. Featuring a full 24-pin Type-C interface, this single-port receptacle supports data transmission rates up to 10 Gbps, meeting the performance demands of modern consumer electronics, industrial devices, and embedded systems. The right-angle (R/A) PCB through-hole mounting design enhances mechanical retention strength and ensures stable connectivity in horizontal PCB layouts.
Constructed with a copper alloy shell and nickel-plated housing, the connector delivers superior durability and corrosion resistance. Phosphor bronze contacts with precision gold plating provide low contact resistance and reliable electrical performance over extended mating cycles. Supporting multiple current ratings of 0.25A, 1.25A, and up to 5A, it accommodates diverse power delivery requirements. Rated UL94V-0 for flame retardancy and operating within -40°C to +85°C, this connector ensures dependable operation in harsh environments.
Key Features
- USB-C 3.1 Gen2 receptacle, 24-pin configuration
- Data transfer speed up to 10 Gbps
- Right-angle PCB through-hole mounting for enhanced stability
- Current ratings: 0.25A / 1.25A / 5A
- Copper alloy shell, nickel-plated for corrosion resistance
- Gold-plated phosphor bronze contacts, UL94V-0, -40°C to +85°C operating range
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS1A-BK-SS-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
