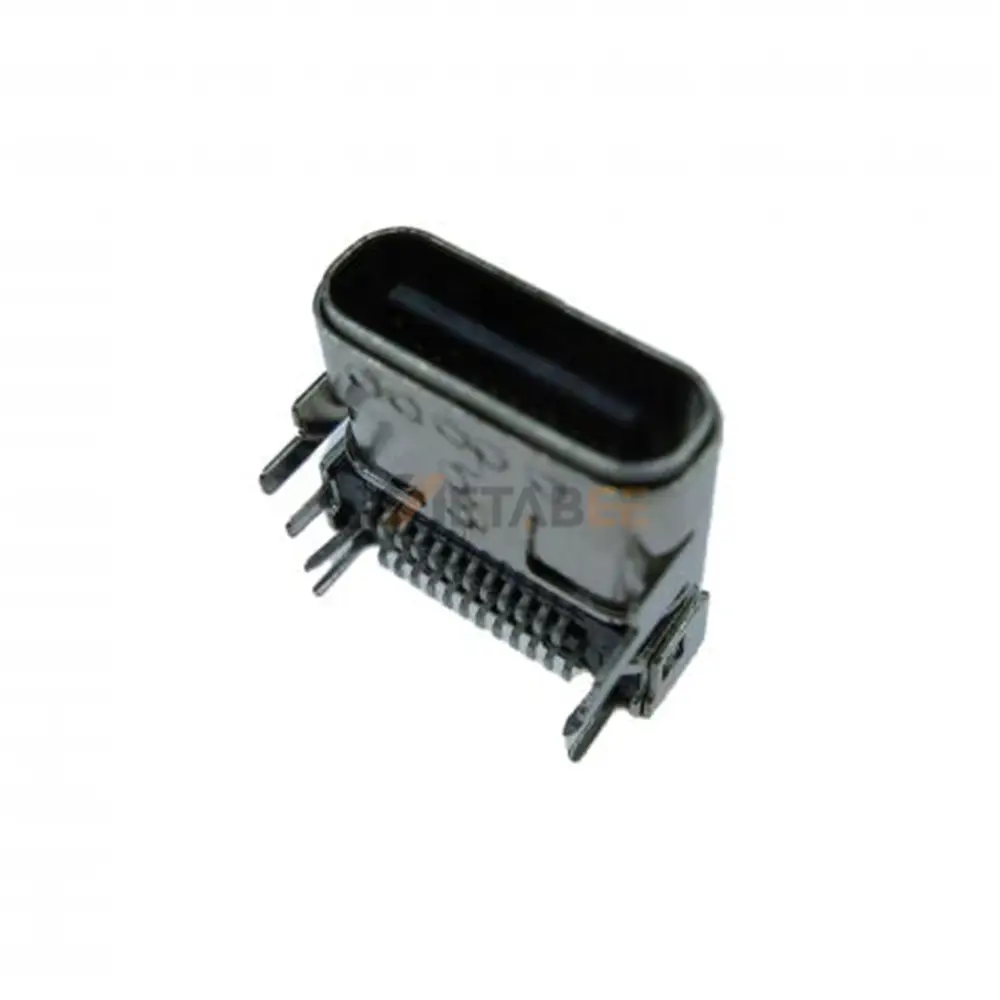

USB-C 3.1 Gen2, Receptacle, 24 Pin, 10 Gbps, PCB Mount, SMT, R/A
Introduction:
This high-performance USB-C 3.1 Gen2 receptacle connector is engineered to deliver lightning-fast data transfer rates of up to 10 Gbps, making it ideal for cutting-edge applications demanding superior speed and efficiency. Featuring a versatile 24-pin, single-port Type-C interface, it ensures robust and reversible connectivity. Designed for seamless integration, this connector boasts a space-saving right-angle, surface-mount technology (SMT) PCB mount, perfect for compact and sophisticated electronic designs.
Crafted for durability and optimal electrical performance, the connector features a robust stainless steel housing with nickel plating, offering excellent protection and shielding. Its contacts are made from a high-quality copper alloy, precisely plated with gold to guarantee superior conductivity and long-term reliability even through numerous mating cycles. Electrically, it supports a rated voltage of 5V and varied current ratings of 0.25A, 1.25A, and 5A to accommodate diverse power delivery requirements. With a UL94V-0 flammability rating and an operating temperature range from -40°C to 85°C, this connector is built to perform reliably in challenging environments.
Key Features
- High-Speed Data Transfer: Supports USB 3.1 Gen2 with speeds up to 10 Gbps.
- Versatile USB-C Interface: Reversible 24-pin Type-C for modern connectivity.
- Space-Saving Design: Right-angle, SMT PCB mount for compact integration.
- Durable Construction: Stainless steel housing with nickel plating for protection.
- Optimized Conductivity: Copper alloy contacts with gold plating ensure reliable performance.
- Robust Environmental Performance: UL94V-0 flammability rating and wide operating temperature range (-40°C to 85°C).
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS2-SMT-BK-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.1 Gen2, Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
