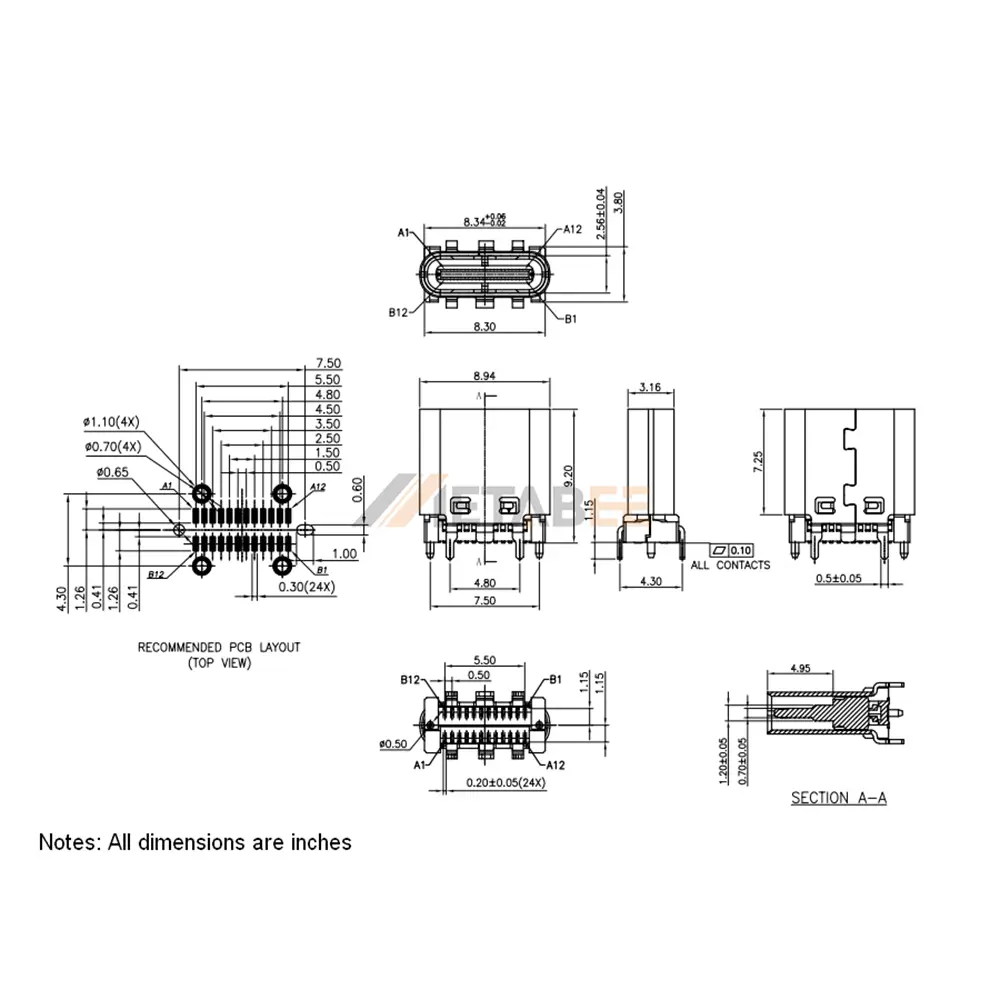

USB-C 3.1 Connector, Receptacle, 24 Pin, 10 Gbps, Vertical
Introduction:
Upgrade your device’s connectivity with our high-performance USB-C 3.1 Connector. Designed as a vertical receptacle, this 24-pin female port delivers rapid 10 Gbps data transfer speeds, making it ideal for high-definition video streaming, quick file transfers, and efficient power delivery. Engineered for durability, it features a robust stainless steel shell with nickel plating and copper alloy contacts finished in gold, ensuring reliable signal integrity and corrosion resistance over thousands of mating cycles.
This right-angle, PCB-mount connector is perfect for space-constrained designs, allowing for flexible placement on your circuit board. It is manufactured to meet strict safety standards, with a UL94V-0 flame-retardant rating, and operates reliably in extreme temperatures ranging from -40°C to 85°C. Whether used in external storage devices, docking stations, or consumer electronics, this USB-C port combines high-speed functionality with rugged construction.
Key Features
- High-Speed Data: USB 3.1 Gen 2 interface supporting 10 Gbps transfer rates.
- Versatile Power Rating: Supports multiple current levels (0.25A, 1.25A, 5A) at 5V.
- Durable Construction: Stainless steel shell with nickel plating; gold-plated copper alloy contacts for enhanced conductivity.
- Robust Mounting: Right-angle orientation with PCB mount for secure assembly.
- Universal Compatibility: 24-pin female receptacle (Type-C) for reversible plug orientation.
- Wide Temperature Range: Reliable operation in environments from -40°C to +85°C; UL94V-0 flame-retardant rated.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-VT-CS1-BK-SS-PP-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.1 Connector, Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
