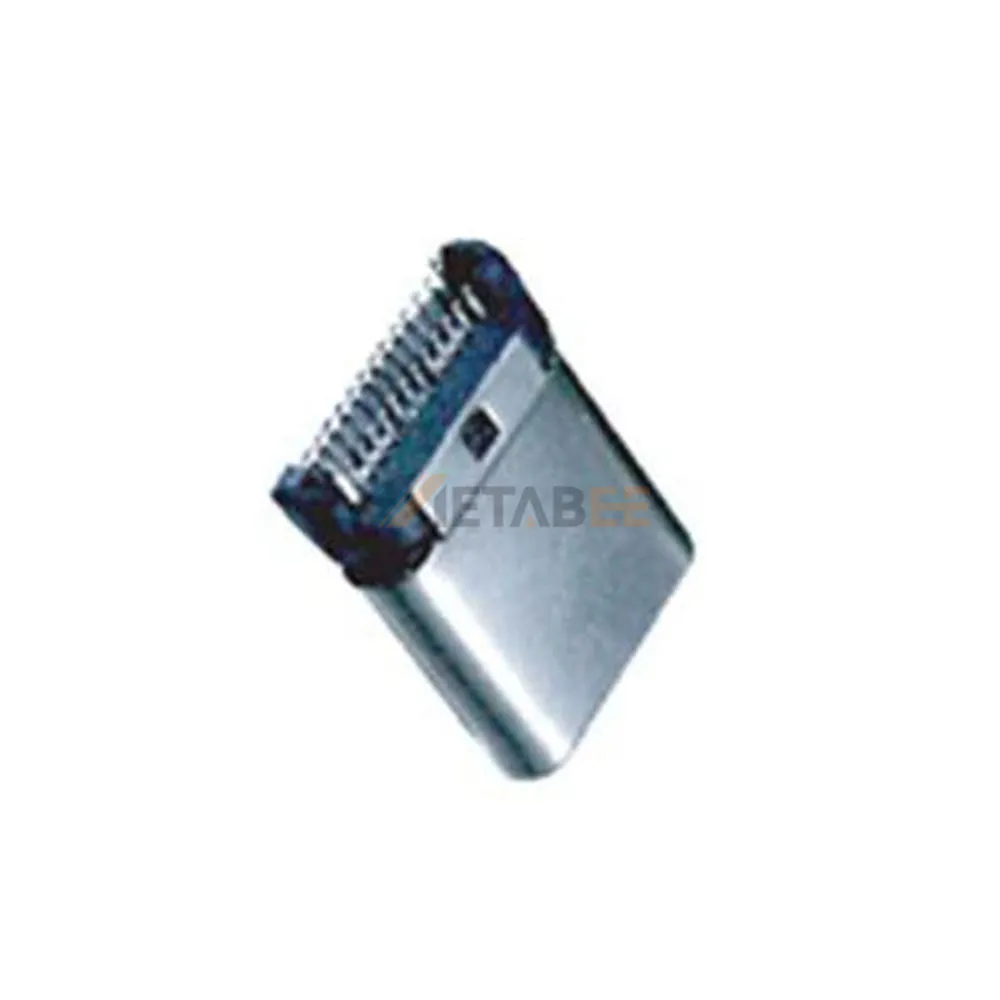

USB-C 3.1 Connector, Plug, 12 Pin, 10 Gbps, Vertical
Introduction:
This 12-pin, single-port connector facilitates lightning-fast data rates of up to 10 Gbps, making it ideal for modern electronic devices requiring rapid communication and efficient power delivery. Its vertical orientation ensures flexible design options and space optimization for various applications.
Crafted for durability and reliability, the connector features a robust stainless steel housing with a nickel plating for enhanced corrosion resistance and a sleek finish. The contacts are made from a high-quality copper alloy, precisely gold-plated to ensure superior conductivity and long-term signal integrity, even under demanding conditions. With a versatile power rating of 0.25A and 3A at 20V, this connector reliably supports both data and power transmission.
Safety and environmental compliance are paramount, as evidenced by its UL94V-0 flammability rating, guaranteeing a high level of fire safety. Engineered to perform across a broad spectrum of environments, this connector operates flawlessly within a wide temperature range of -40°C to 85°C, providing dependable performance in diverse industrial and consumer settings.
Key Features
- USB-C 3.1 Compatibility: Supports up to 10 Gbps data transfer speeds for high-bandwidth applications.
- Robust Construction: Stainless steel housing with nickel plating ensures durability and corrosion resistance.
- Premium Contacts: Gold-plated copper alloy contacts offer superior conductivity and signal integrity.
- Vertical Mounting: Space-saving design allows for flexible integration in various device layouts.
- Wide Operating Range: Functions reliably in temperatures from -40°C to 85°C.
- Enhanced Safety: UL94V-0 flammability rating provides a high level of fire safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-PLUG-B-XX-BK | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 12 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 3.1 Connector, Plug, 12 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
