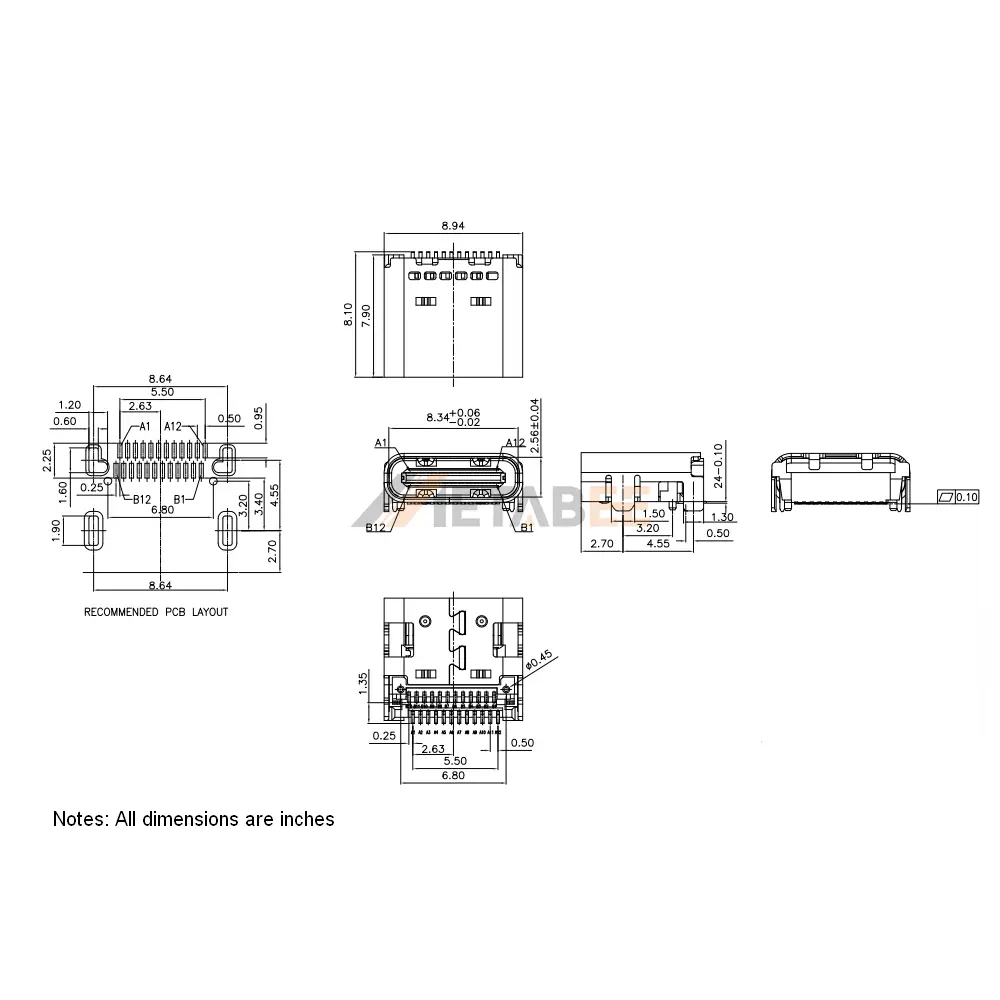

USB 3.2 Type C Socket, 24 Pin, 10 Gbps, PCB Mount, SMT, R/A
Introduction:
The USB 3.2 Type-C Socket is a high-performance 24-pin connector designed for high-speed data transmission and reliable power delivery in modern electronic devices. Supporting transfer rates up to 10 Gbps, this single-port Type-C connector provides stable connectivity for consumer electronics, industrial equipment, and embedded systems. The right-angle SMT PCB mount configuration helps optimize board layout while enabling efficient assembly in compact device designs.
Constructed with a stainless steel shell and nickel plating, the connector offers excellent structural durability and corrosion resistance. The copper alloy contacts with gold plating ensure superior electrical conductivity and consistent signal integrity. With a rated current of 3A, UL94V-0 flame-retardant materials, and an operating temperature range of -40°C to +85°C, this USB-C socket is engineered for long-term reliability in demanding environments.
Key Features
- USB 3.2 Type-C socket with 24-pin interface
- Data transfer speed up to 10 Gbps
- Right-angle SMT PCB mount for compact PCB layouts
- Stainless steel shell with nickel plating for durability
- Gold-plated copper alloy contacts for stable conductivity
- Rated current 3A, operating temperature -40°C to +85°C, UL94V-0 flame rating
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-SMT-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Type C Socket, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
