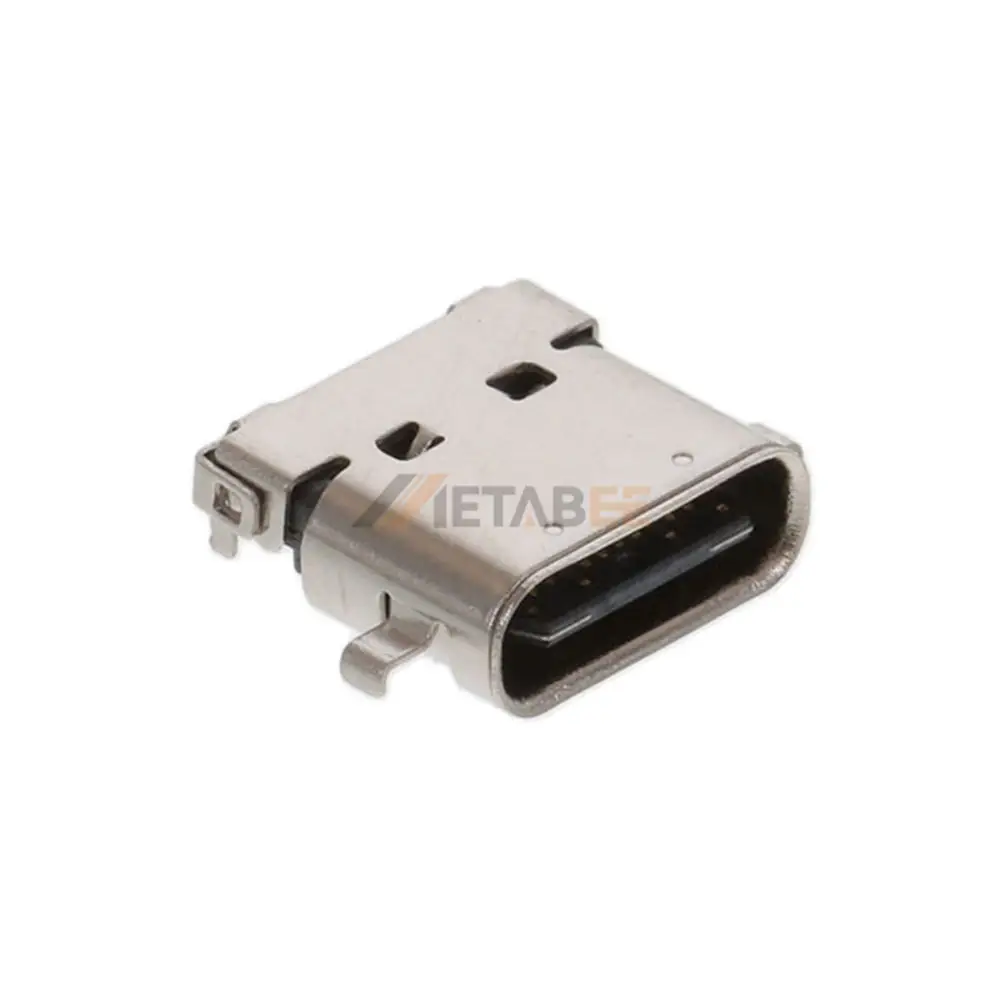

USB 3.2 Gen2 Type C Receptacle, 24 Pin, 10 Gbps, PCB Edge Mount, R/A
Introduction:
Experience next-generation connectivity with our high-performance USB 3.2 Gen2 Type C Receptacle connector. Engineered for blazing-fast data transfer, this 24-pin, single-port solution delivers speeds up to 10 Gbps, making it indispensable for advanced electronic applications demanding rapid and reliable data exchange. Its innovative right-angle, PCB edge mount design ensures seamless, space-efficient integration onto printed circuit boards, perfect for modern, compact devices where board real estate and aesthetic appeal are paramount.
Built for exceptional durability and optimal electrical performance, this connector features a robust stainless steel housing, meticulously nickel-plated for superior corrosion resistance and effective electromagnetic interference (EMI) shielding. The critical contacts are precision-machined from high-quality copper alloy and generously gold-plated, guaranteeing excellent signal integrity, minimal resistance, and an extended operational lifespan through countless mating cycles. Supporting versatile current ratings of 0.25A, 1.25A, and 5A, this receptacle caters to diverse power delivery requirements. With a UL94V-0 flammability rating and a wide operating temperature range from -40°C to 85°C, it is designed for reliable operation in challenging environments.
Key Features
- Ultra-High Speed: Supports USB 3.2 Gen2 with data rates up to 10 Gbps.
- Versatile Type-C Receptacle: 24-pin, single-port for modern, reversible connections.
- Space-Efficient Mounting: Right-angle, PCB edge mount for compact integration.
- Premium Durability: Stainless steel housing with nickel plating for robust protection.
- Superior Conductivity: Gold-plated copper alloy contacts ensure signal integrity.
- Reliable Performance: UL94V-0 flammability rating and -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2.0B-BK-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen2 Type C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
