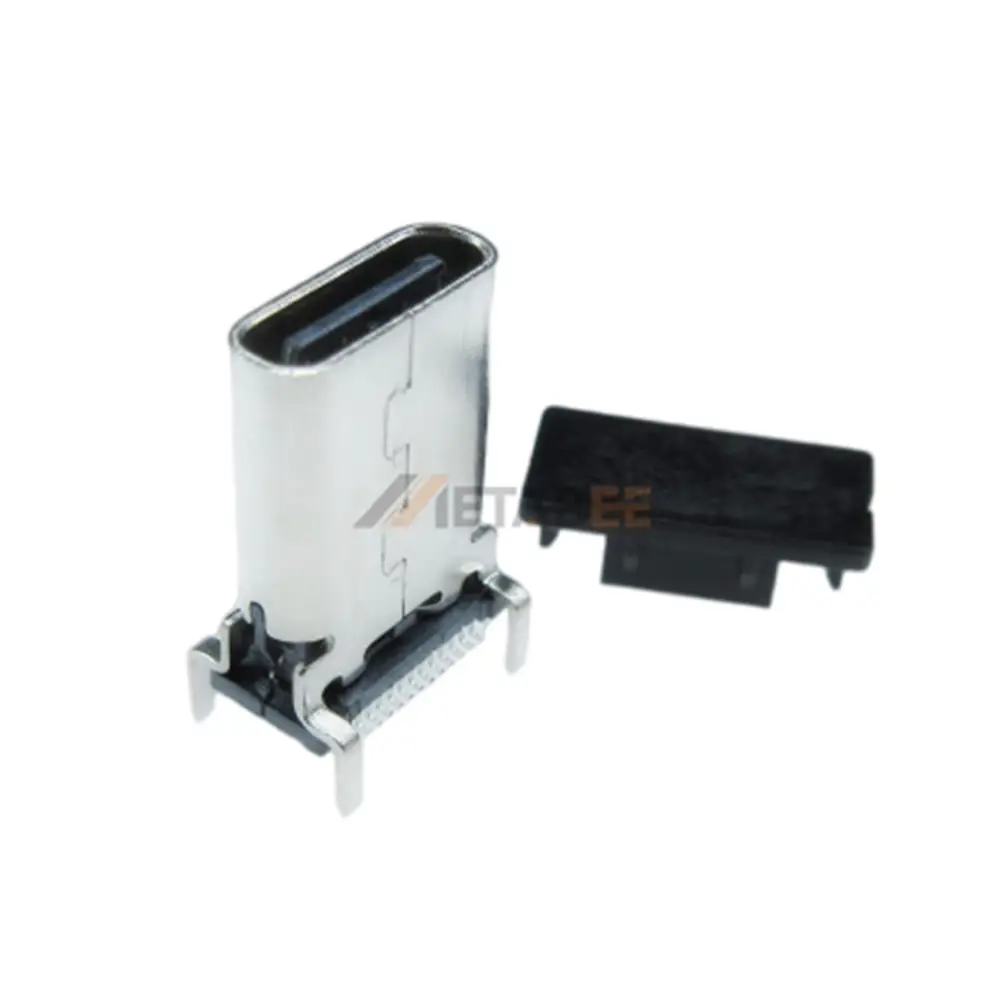

USB 3.2 Gen 2 Type C Connector, Receptacle, 24 Pin, 10 Gbps, Vertical
Introduction:
Upgrade your PCB design with the high-performance USB 3.2 Gen 2 Type-C Receptacle, a robust 24-pin connector engineered for next-generation data transfer and power delivery. This vertical-mount, right-angle female connector supports blazing-fast 10 Gbps transmission speeds, making it the ideal interface for smartphones, tablets, external storage, and industrial peripherals requiring seamless connectivity. The compact design adheres to the latest USB standard, ensuring compatibility with a vast ecosystem of Type-C devices while supporting reversible plug orientation for enhanced user convenience.
Built for durability and reliability, this receptacle features a Stainless Steel shell with a Nickel Plated finish to resist corrosion and withstand repeated mating cycles. The internal contacts are crafted from high-performance Copper Alloy with a Gold Plated finish, ensuring optimal signal integrity and low insertion loss. Capable of operating in extreme temperatures ranging from -40°C to 85°C and compliant with the UL94V-0 flame retardant standard, this component guarantees safe and stable performance even in demanding environments. Whether used for power or high-speed data, this PCB Mount connector is the premium choice for your next hardware innovation.
Key Features
- Ultra-Fast Data Transfer: Supports USB 3.2 Gen 2 standard for speeds up to 10 Gbps.
- High Power Handling: Supports a 5A current for fast charging and power delivery.
- Robust Construction: Stainless steel shell with nickel plating ensures durability and corrosion resistance.
- Superior Signal Conductivity: Gold-plated copper alloy contacts provide reliable, low-loss connections.
- Versatile Mounting: Right-angle orientation for efficient, space-saving PCB mounting.
- Wide Operating Range: Reliable performance in temperatures from -40°C to +85°C with UL94V-0 flame retardant rating.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-VT-CS4-BK-PP-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Gen 2 Type C Connector, Receptacle, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
