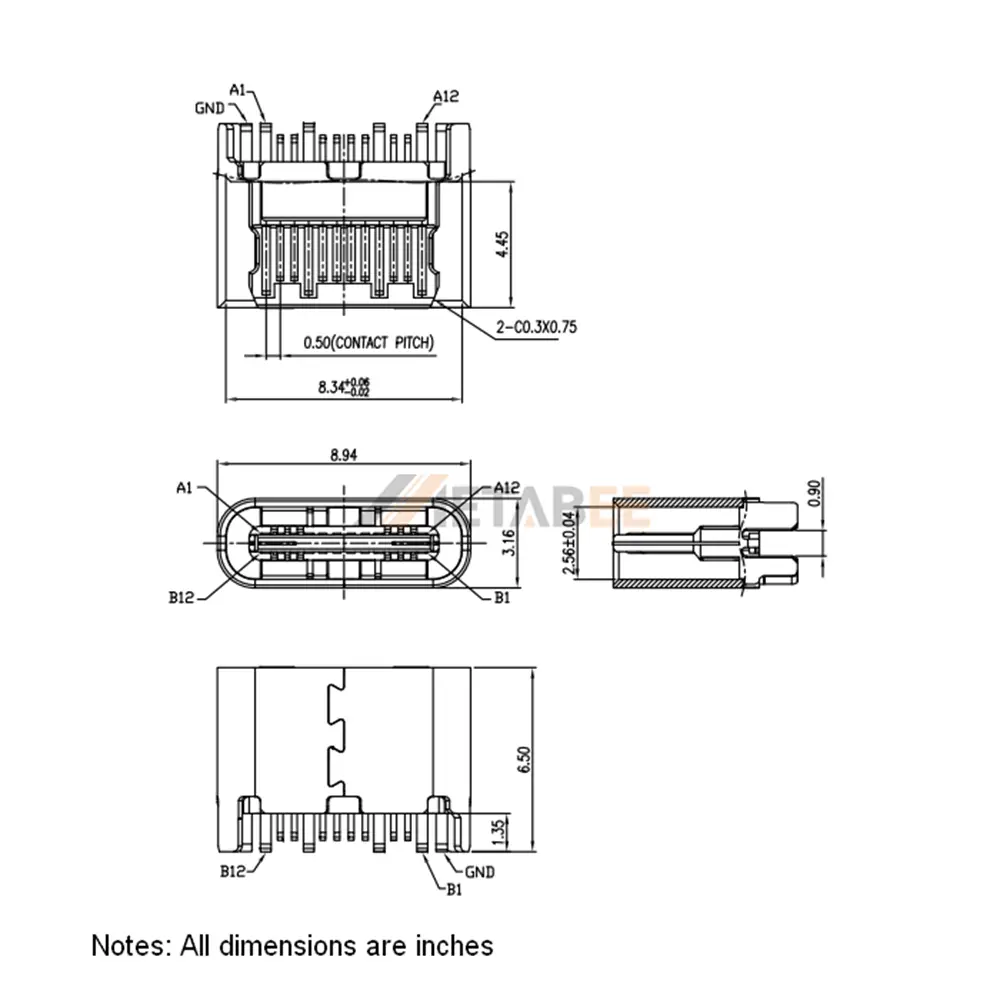

USB 3.2 Female Connector, Type C, 24 Pin, 10 Gbps, PCB Mount, Right Angle
Introduction:
Elevate your designs with our high-performance USB 3.2 Connector. Engineered for superior data transmission and robust integration, this single-port, 24-pin Type-C connector is designed to meet the demands of modern electronic devices. Its right-angle, PCB mount orientation allows for efficient space utilization and flexible board layouts, making it an ideal choice for a wide range of applications requiring compact and reliable connectivity. Experience blazing-fast data transfer speeds of up to 10 Gbps, ensuring seamless operation for data-intensive tasks.
Constructed for durability and longevity, this connector features a resilient stainless steel housing with a tin-plated finish, providing excellent corrosion resistance. The contacts are crafted from high-quality phosphor bronze and finished with a gold plating, ensuring optimal conductivity and signal integrity even under challenging conditions. With a versatile current rating of 1.5A and 5A, and a UL94V-0 flammability rating, this connector offers enhanced safety and reliability. It operates flawlessly across a broad temperature range from -40°C to 85°C, guaranteeing stable performance in diverse environments.
Key Features
- USB 3.2 Type-C: Latest standard for versatile connectivity.
- 10 Gbps Speed: Ultra-fast data transfer rates.
- Right-Angle Mount: Space-saving PCB integration.
- Robust Materials: Stainless steel housing, gold-plated contacts.
- Dual Current Rating: Supports 1.5A and 5A applications.
- Wide Temp Range: Reliable performance from -40°C to 85°C.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-SM-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Horizontal | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Tin Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.2 Female Connector, Type C, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
